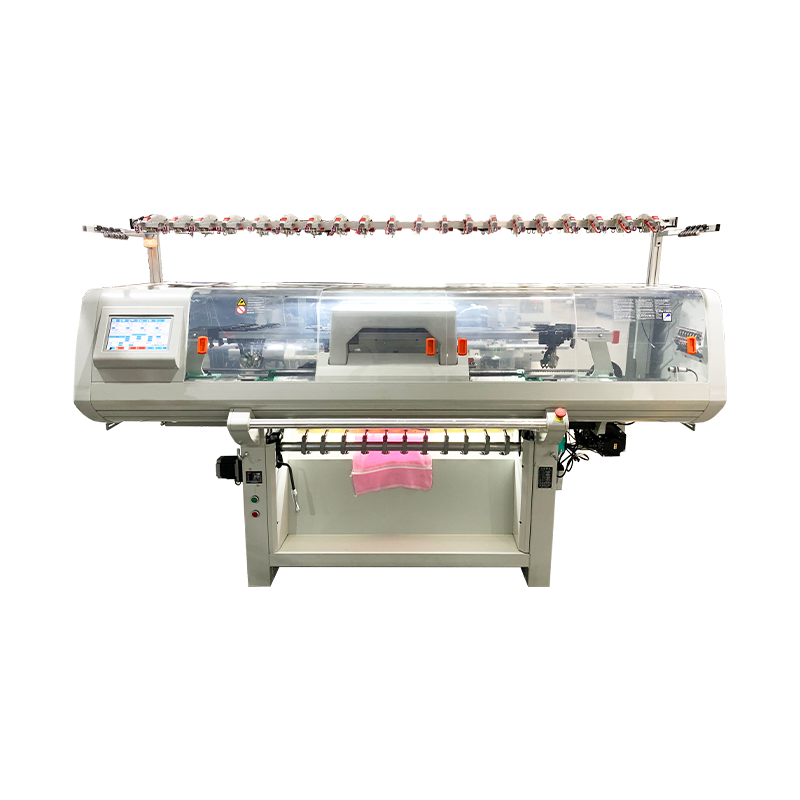

Equipped with a high-speed servo drive system and an optimized, compact carriage design, the GS-CE440 ensures smooth operation, precise positioning, and rapid carriage reversal. These features effectively reduce idle travel time and increase output per unit of time. Its advanced computer control system, combined with electronic needle selection technology, enables high-speed, high-precision knitting; this results in uniform fabric structures and intricate patterns, meeting the rigorous quality and efficiency standards of mid-to-high-end knitwear.
The machine supports various gauge configurations, allowing for flexible selection based on product specifications, and is compatible with a wide range of materials, including wool, cashmere, cotton, acrylic, polyester, viscose, and various blended yarns. A high-precision yarn feeding system paired with intelligent tension control ensures stable fabric dimensions and consistent finished product quality, effectively reducing waste rates and enhancing overall product excellence.
As part of the cost-effective CE series, the GS-CE440 balances high performance with optimized investment and operating costs. It features a user-friendly touchscreen interface that simplifies program editing, pattern switching, and maintenance. These capabilities help enterprises shorten sampling cycles and improve order fulfillment efficiency, enabling smarter, more productive manufacturing of knitted accessories.
| Model | GS-CE440 |
| Gauge | 12G, 14G, 16G, 18G, 20G |
| Knitting System | Economic-Four System, Single Carriage |
| Knitting Width | 40 Inch |
| Knitting Speed | Max 1.5 m/s |
| Knitting Function | Flat, transfer, tuck, jacquard. |
| Stitch Density | Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650. |
| Racking | Controlled by computer, electric magnet/motor needle choose system with high efficiency. |
| Drive System | Synchronous belt drive, AC servo system. |
| Needle Selection | Controlled by computer, electric magnet/motor needle choose system with high efficiency. |
| Yarn Carrier | 2×8 yarn carriers on each side of 4 guide rails, shiftable on any needle position. |
| Take Down Roller | Programmed instruction controlled by stepping motor,128 section levels selection adjustable area:0-100. |
| Protection System | The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc. |
| Control System | 1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored. 2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3. Design system is visual and easy to understand and upgrade. 4. Multi-language version, there are Chinese, English etc. |
| Power | 220V,single-phase, have memorizing function at the power-off moment. |
