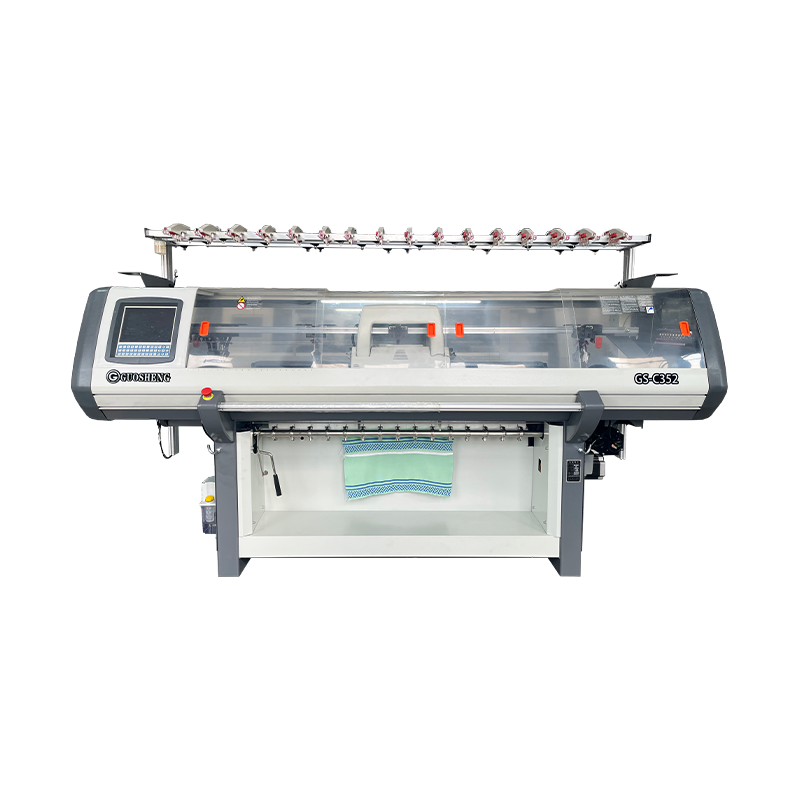

GS-C352 52-Inch Three System Full-Function Collar Knitting Machine

·Three-System Single Carriage — Three-Color Jacquard, Efficiency and Full Function in Perfect Unity

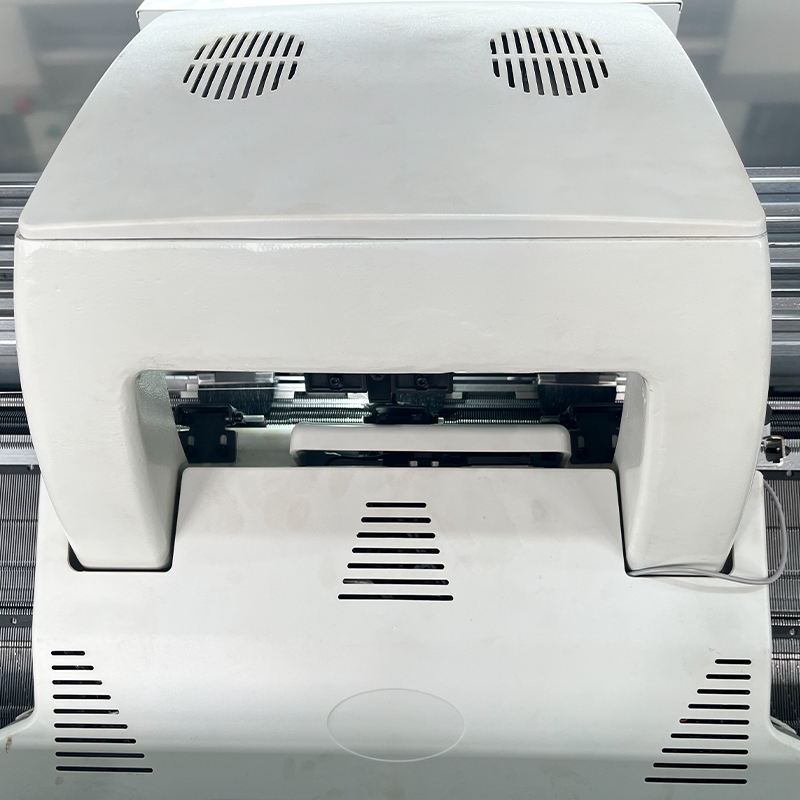

The defining technical positioning of the GS-C352 is the deep integration of a Three System, Single Carriage architecture with comprehensive full-function knitting capability. The three-system configuration enables more knitting actions per carriage pass than double and single system machines, delivering significantly higher overall efficiency. The carriage is capable of fast rotation at a maximum speed of 1.5 m/s, with the three-system's output advantage fully realized in actual production throughput. The three-system design natively supports three-color jacquard knitting, achieving rich color transitions and complex pattern variations within a single carriage pass — bringing collar product design expressiveness to the pinnacle of the Full-Function C series. At the same time, the Full-Function C series' comprehensive knitting support ensures the machine meets the requirements of needle transfer, intarsia, tuck, and jacquard — all pattern types — truly achieving the perfect combination of three-system efficiency and full-function versatility in one machine.
·Variable Stitch Density — Ultimate Pattern Expression Under Three-System Three-Color Jacquard
The GS-C352 is equipped with a variable stitch density function that adjusts stitch length in real time, enabling density gradients and structural layering across different areas of the same collar piece. When combined with three-system three-color jacquard capability, this function enables the production of premium collar products that achieve industry-leading levels of color richness, structural complexity, and fabric dimensionality simultaneously. Under three-system high-speed operation, the variable stitch density function elevates collar product design value and added value to new heights without sacrificing production efficiency — helping factories achieve dual leadership in both throughput and quality.

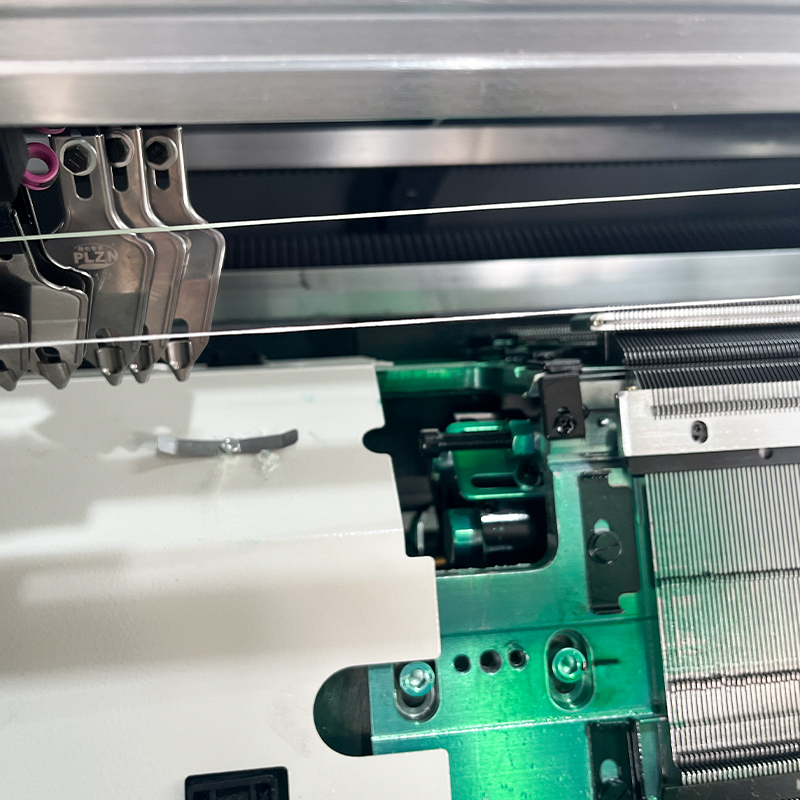

·Sinker System — The Core Quality Feature of the Full-Function C Series
As a defining characteristic of the Full-Function C series, the GS-C352 is equipped with a sinker assist system. The sinkers provide stable yarn control and guidance throughout the three-system high-speed knitting process, further optimizing fabric formation and significantly improving surface evenness and structural uniformity. In complex techniques such as needle transfer and intarsia, the sinker assist function is especially critical — effectively suppressing fabric defects caused by yarn tension fluctuations and ensuring consistent quality and appearance across all complex-pattern collar products under three-system high-speed batch production. This is the core quality differentiator that sets the GS-C352 apart from equivalent economic-series machines.
·Multi-Stage Needle Selection Jacquard — Precise, Efficient Coverage Across All Patterns

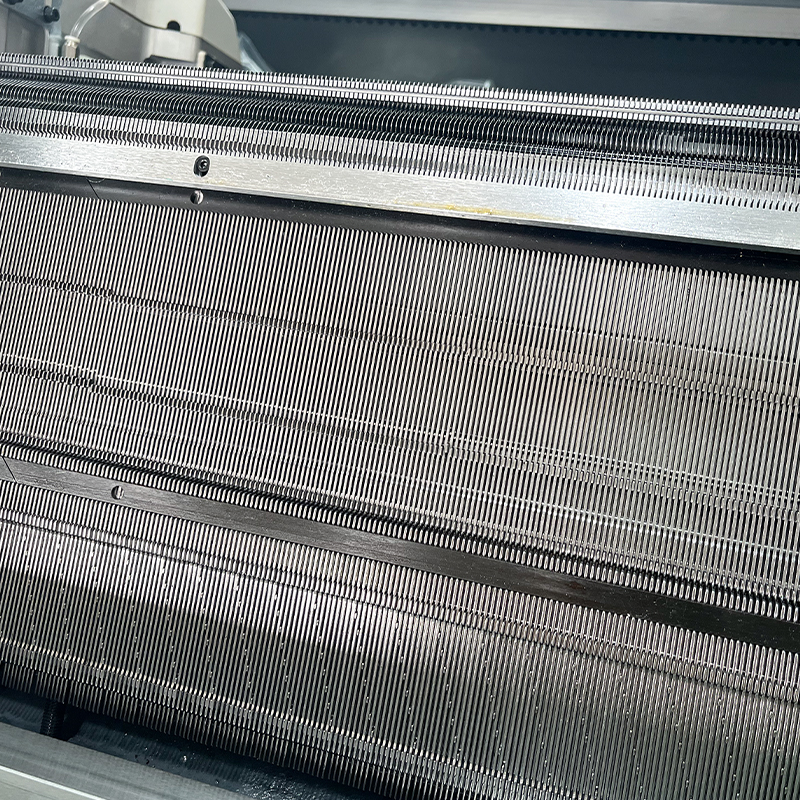

The electromagnetic needle selection mechanism, computer-controlled for stable and efficient operation, supports multi-stage needle selection jacquard functionality. Even under three-system high-speed conditions, the precise multi-stage control maintains exceptional pattern repeatability and batch-to-batch consistency across the full range from plain single-color flat stitch to three-color jacquard, complex intarsia, and transfer-stitch structured collars — delivering premium quality output across the entire collar product portfolio.

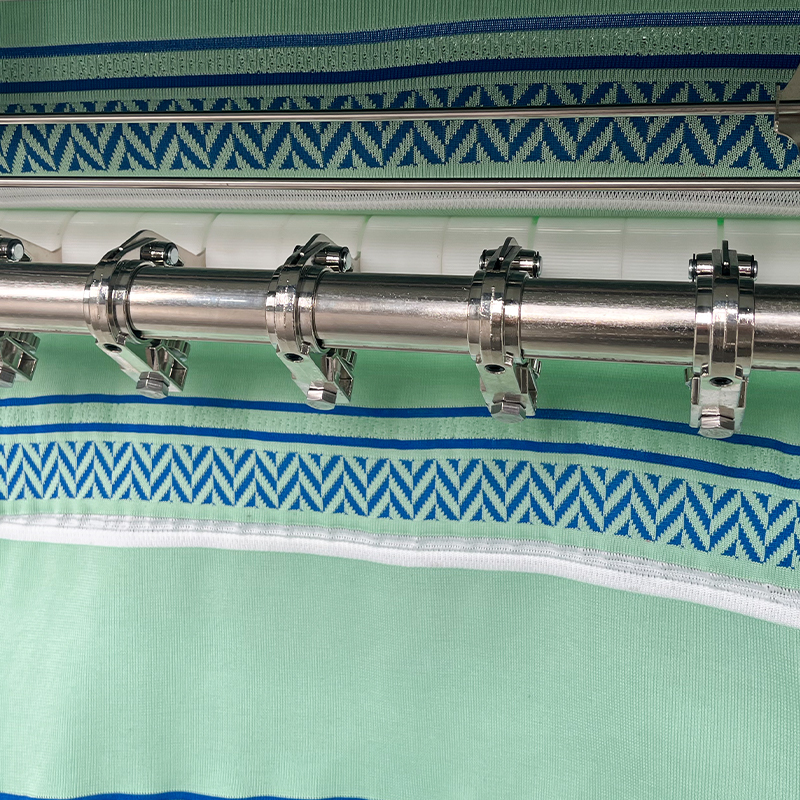

·High-Position Roller & Upper-Lower Composite Traction — Stable Pull, Quality Assurance
The high-position roller increases overall traction force, the thickened lower roller reinforces the pulling effect, and the specially formulated wear-resistant roller cover ensures long-term durability. The upper-lower combined composite traction system deploys upper and lower traction components in coordination to apply smooth, even tension across the full 52-inch fabric width — preventing edge curl, twisting, or dimensional variation under three-system high-speed conditions and guaranteeing flat, consistent products across all collar pattern types.

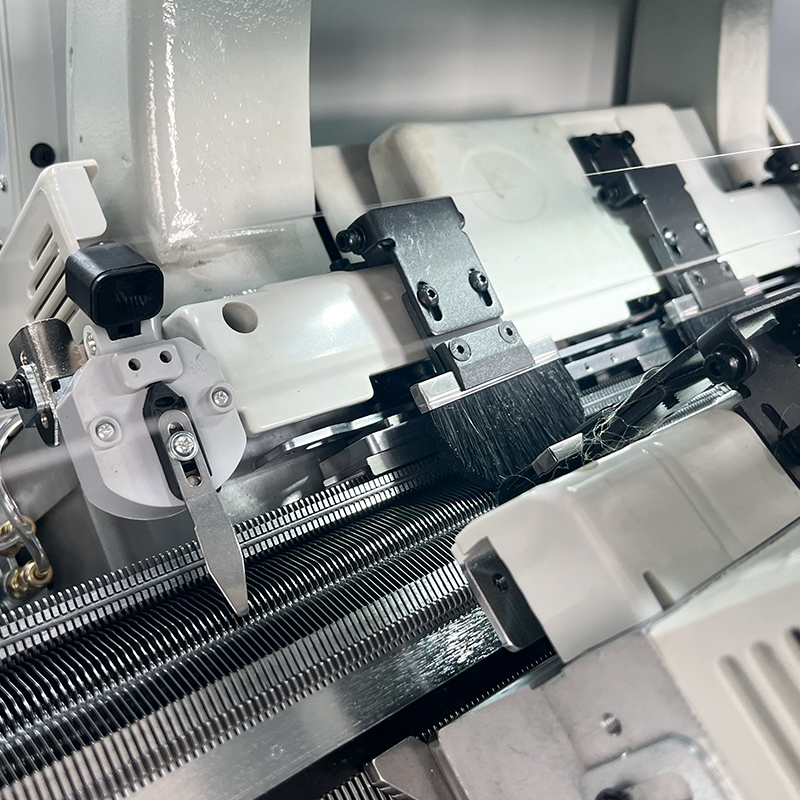

·Small-Head Fully Motorized Cam — Compact, Efficient, Sustained Reliability
The machine is fitted with a compact small-head fully motorized cam system with motor-driven actuation for precise, rapid response. This design maintains exceptional action accuracy and sustained reliability under continuous three-system high-speed knitting, minimizing downtime caused by mechanical adjustment and maximizing production continuity and overall capacity utilization.

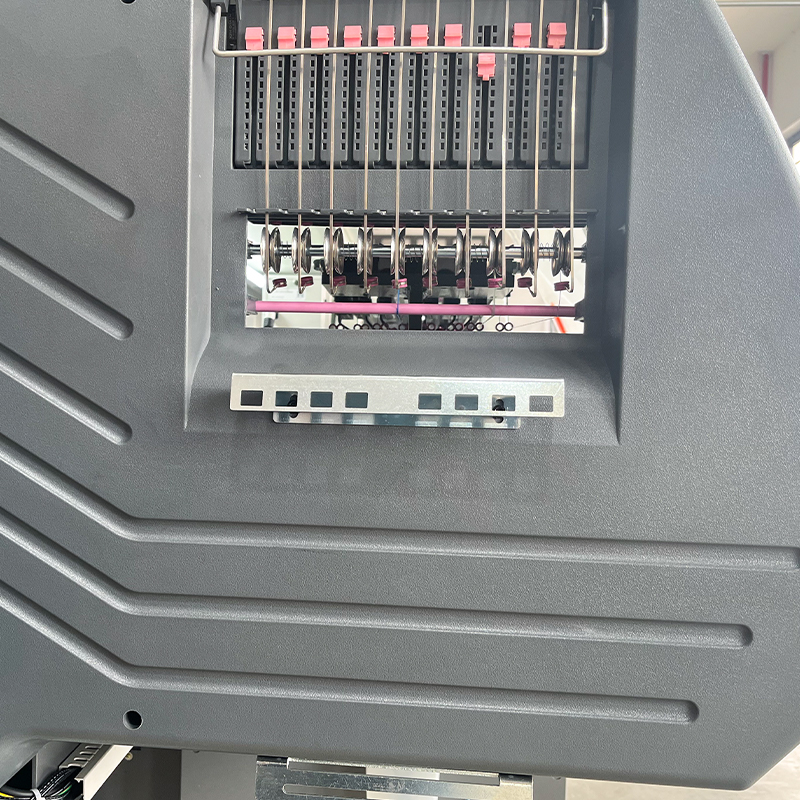

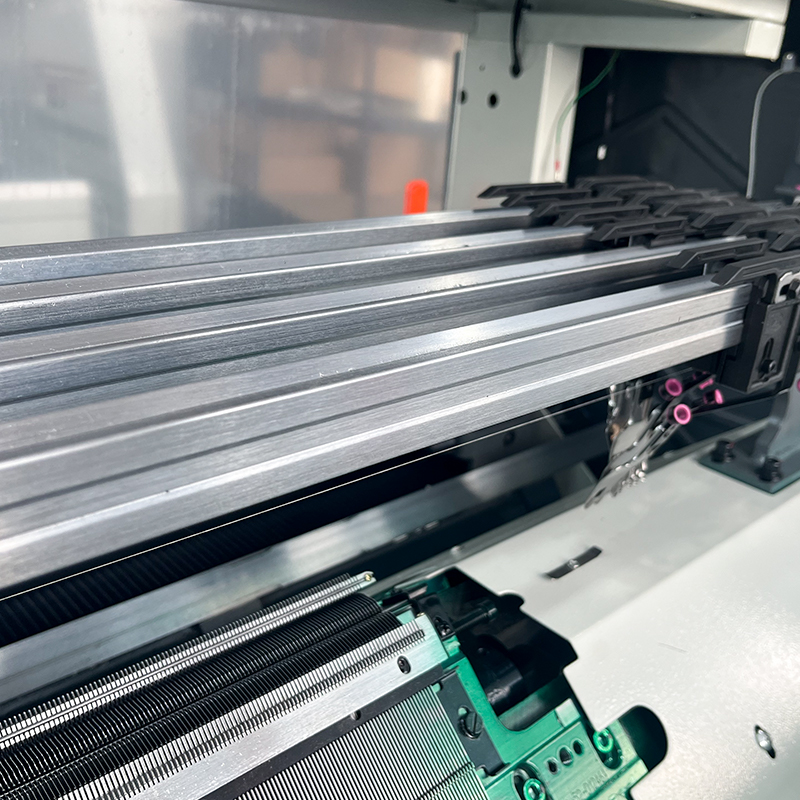

·2×8 Yarn Carrier System — Full Support for Three-Color Jacquard
The 2×8 yarn carrier configuration — mounted on both sides of 4 guide rails — allows yarn changes at any needle position, providing the operational flexibility needed for three-color jacquard and multi-color intarsia collar production. This ensures complex multi-color pattern transitions are executed with precision and fluency, fully realizing the combined potential of the three-system architecture and variable stitch density function.
·Precision Control & Comprehensive Protection

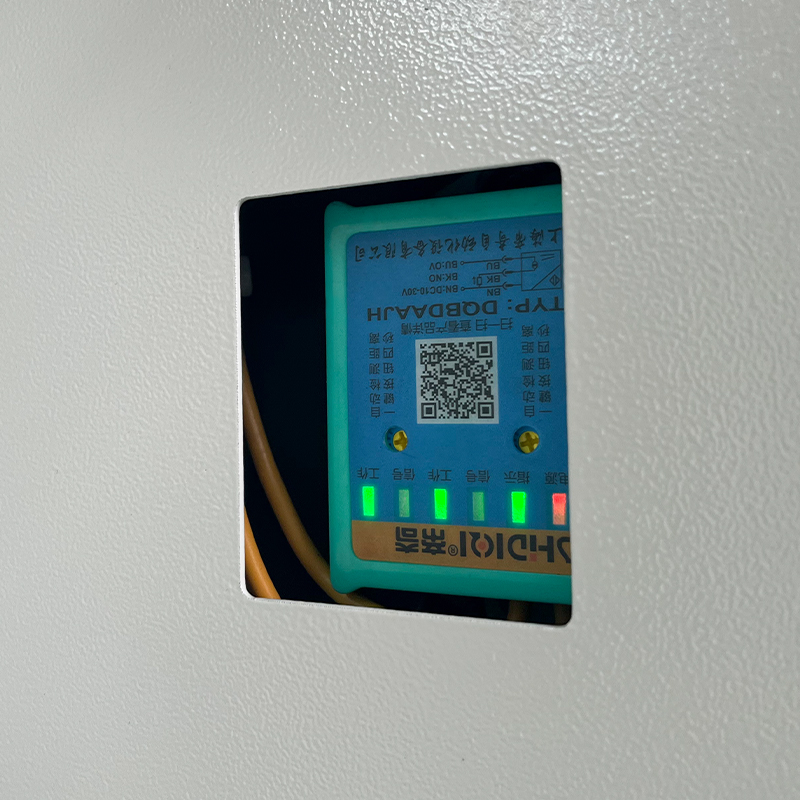

Stitch density is stepping motor–controlled with 128 (32) selectable levels across a range of 0–650. The take-down roller provides 128 levels of tension control from 0–100. Racking is driven by AC servo motor with a 2-inch range and fine-tuning capability, and the synchronous belt drive with servo motor control ensures smooth, stable operation. The control system features an LCD display with USB input and 256MB memory, supporting Chinese, English, and other languages, with all parameters adjustable in real time during machine operation. The protection system automatically alerts and halts the machine upon detecting yarn breakage, float yarn, rewinding faults, racking failure, needle collision, safety door events, or programming errors. The machine operates on 220V single-phase power with a power-off memory function to protect production data against unexpected interruptions.
