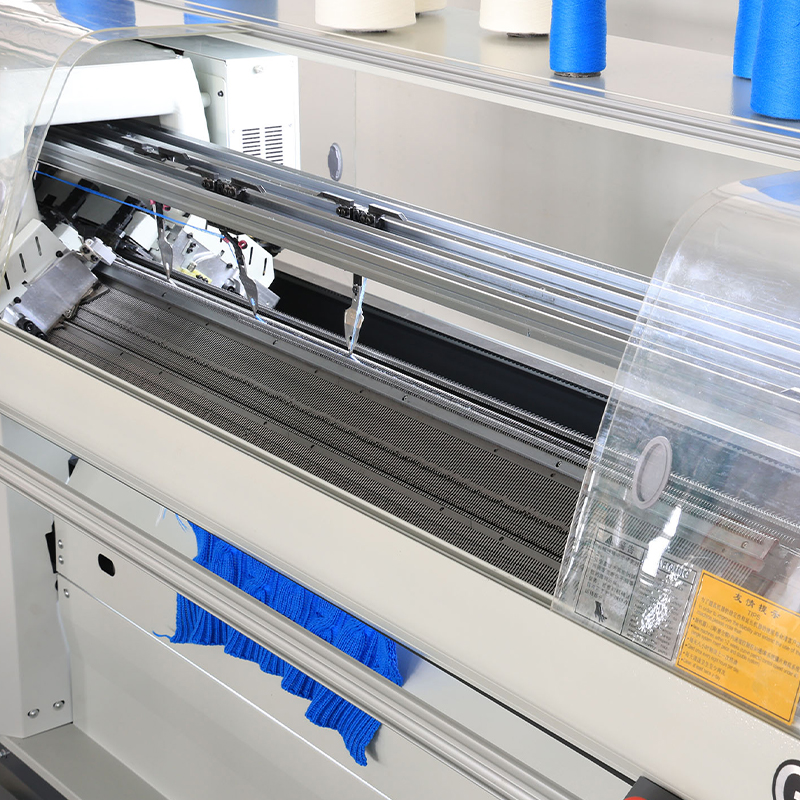

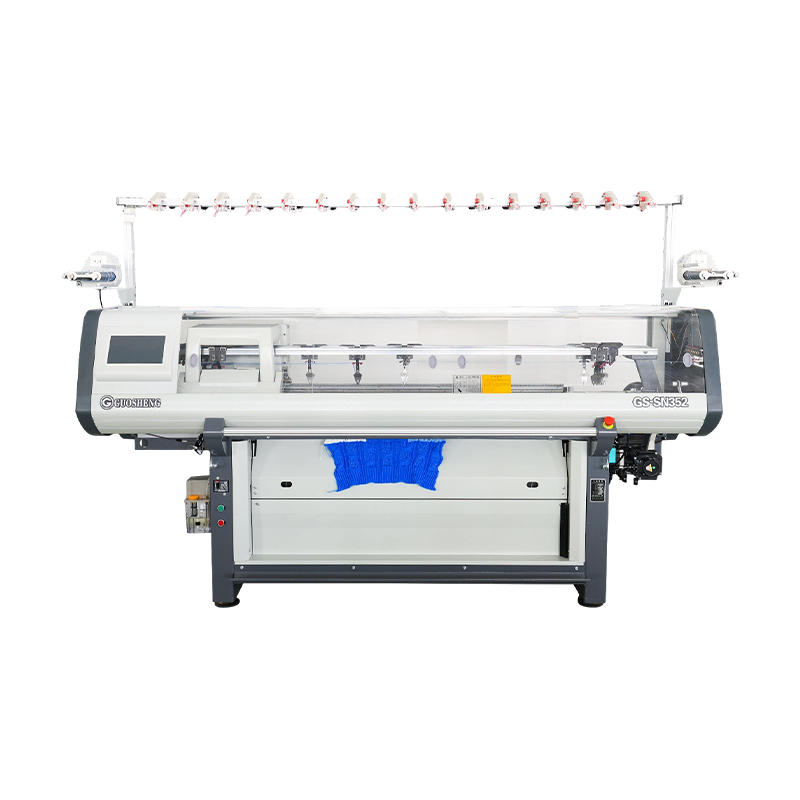

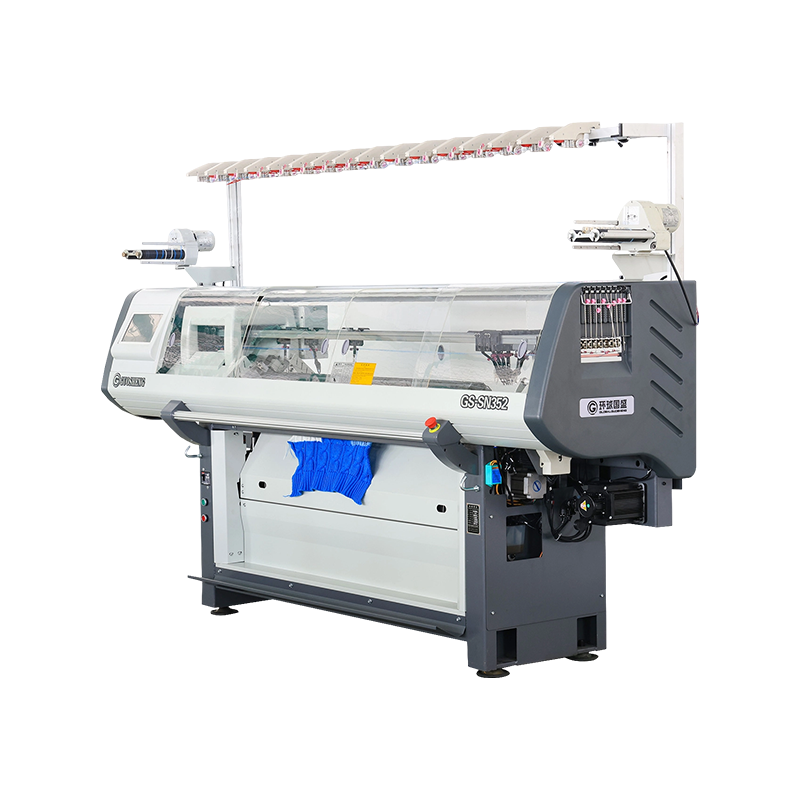

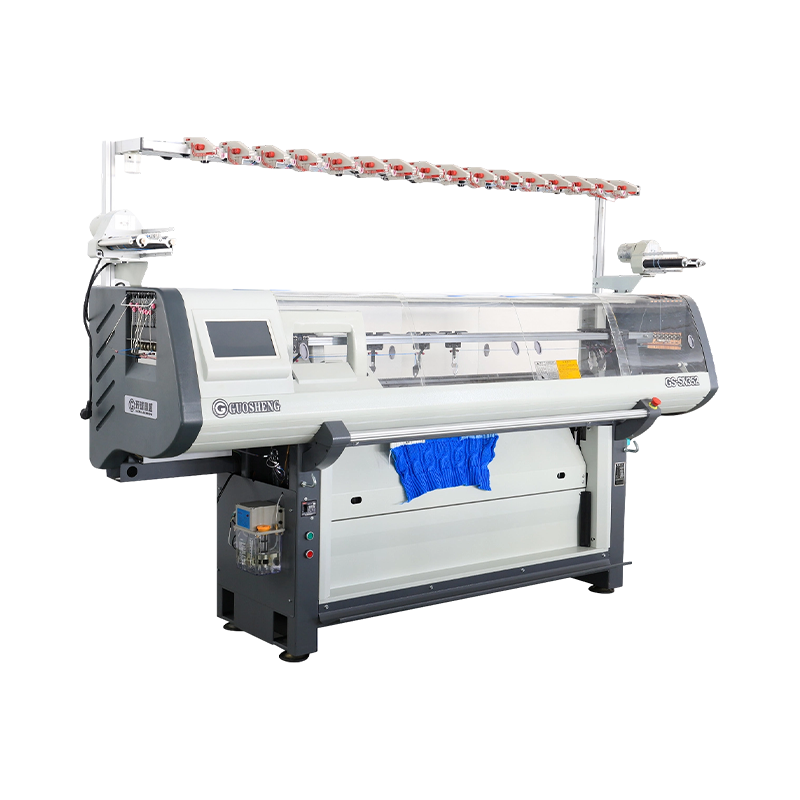

GS-SN352 52-Inch Three System Full-Function Economical Sweater Knitting Machine

GS-SN352 52-Inch Three System Full-Function Economical Sweater Knitting Machine

The GS-SN352 52-Inch Three System Full-Function Economical Sweater Knitting Machine is the cost-optimized model in GUOSHENG MACHINERY's Three System Full Function S series, purpose-designed for knitwear factories that demand full three-system knitting capability without the footprint or cost of a full-specification machine. By combining a 5.2-inch extra-small carriage with a fixed-track cam structure, the GS-SN352 delivers high-speed, high-efficiency three-system performance at a significantly reduced machine size, energy consumption, and operational cost — making it the ideal solution for small and medium-sized factories seeking to maximize output within tight budget and space constraints.

Get A Quote

PREV：No previous article NEXT：GS-SA352C 52-Inch Three System Intelligent Yarn Feeder Sweater Knitting Machine

Product Introduction
Machine parameters
video
Contact Us

·Three-System Single Carriage — Full Function, High Efficiency

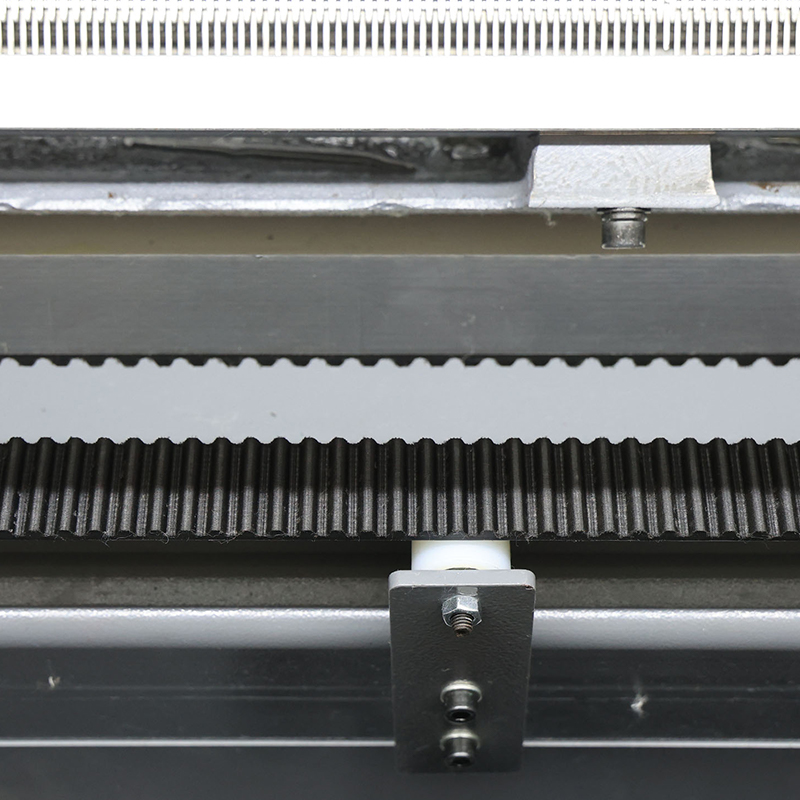

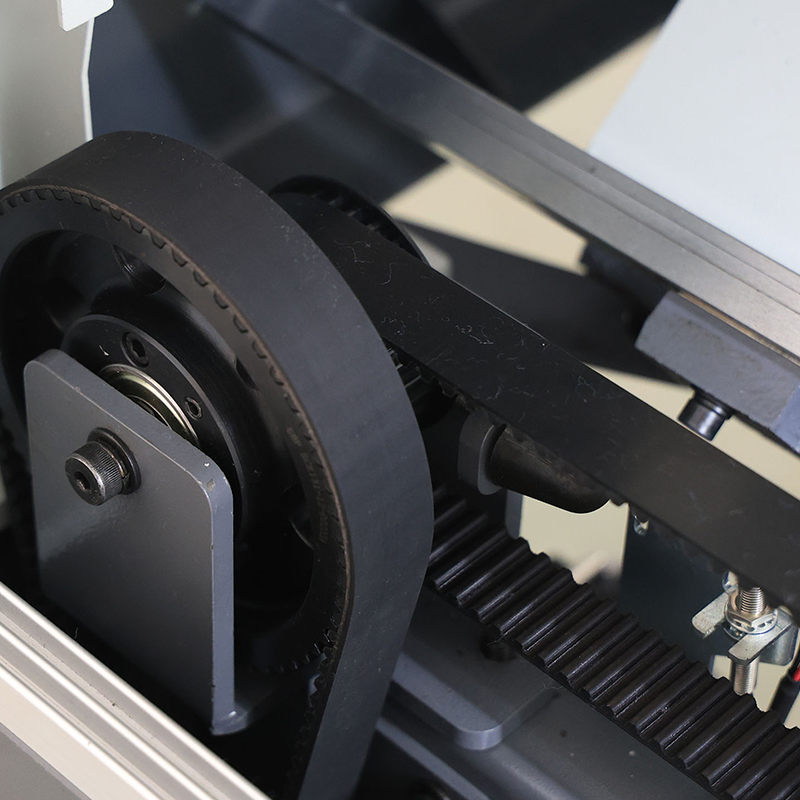

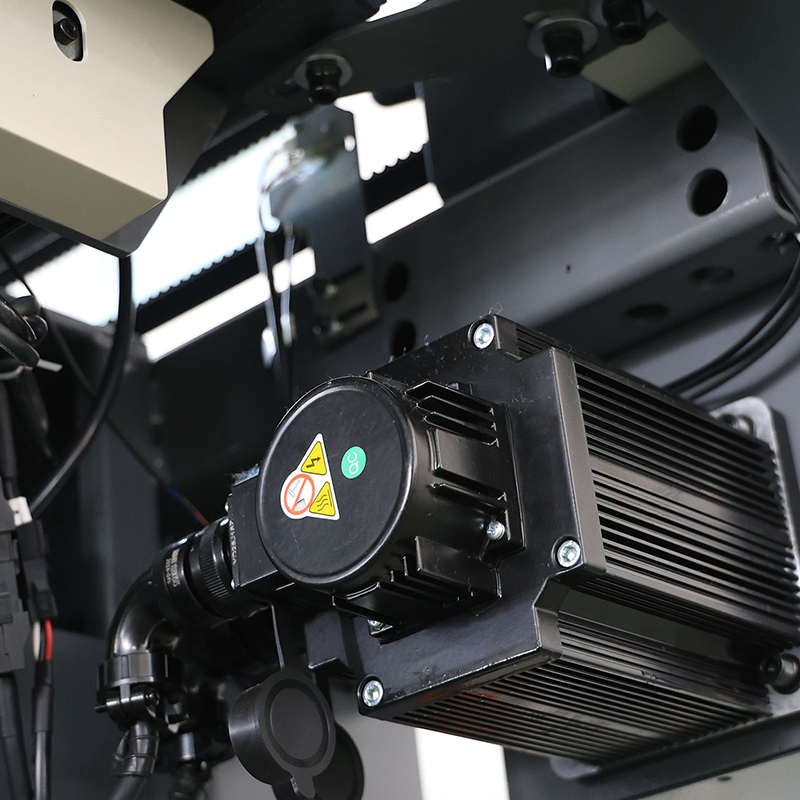

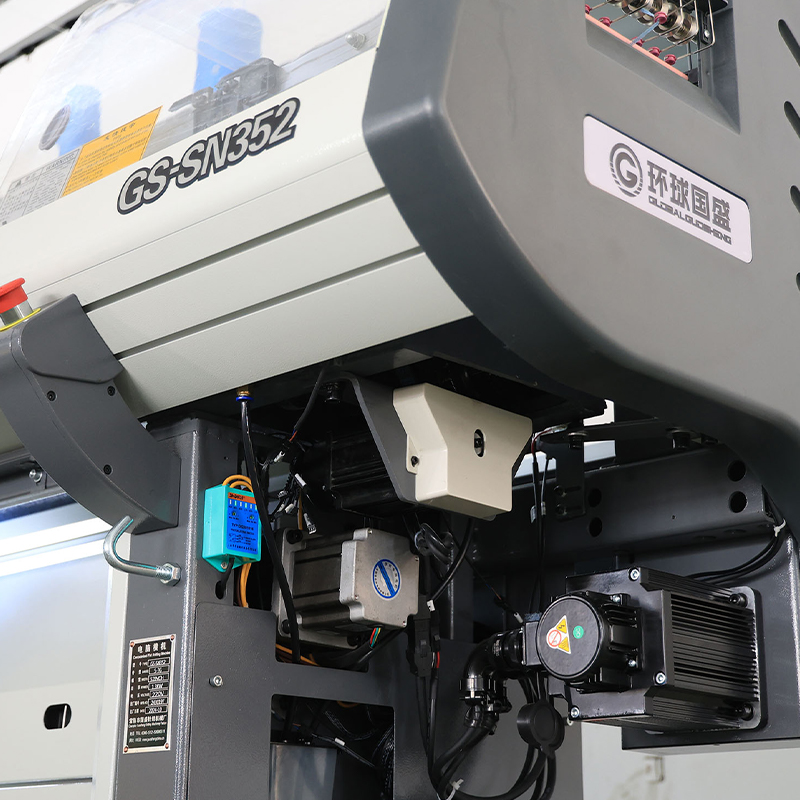

The GS-SN352 features three working positions and supports the complete range of flat knitting machine functions. The three-system configuration ensures more knitting actions are completed per carriage pass compared to double system machines, driving substantially higher effective output per unit of time. Paired with a synchronous belt drive and AC servo motor control for smooth, responsive operation, the machine reaches a maximum speed of 1.5 m/s — delivering the throughput required for volume knitwear production.

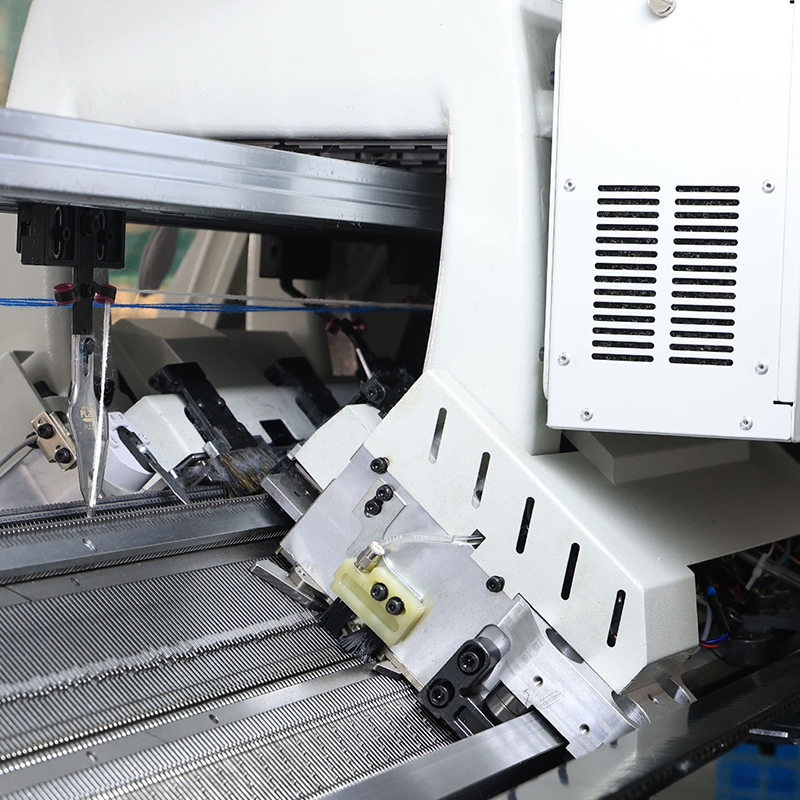

·Core Advantage: 5.2-Inch Extra-Small Carriage — Energy-Saving and Space-Efficient

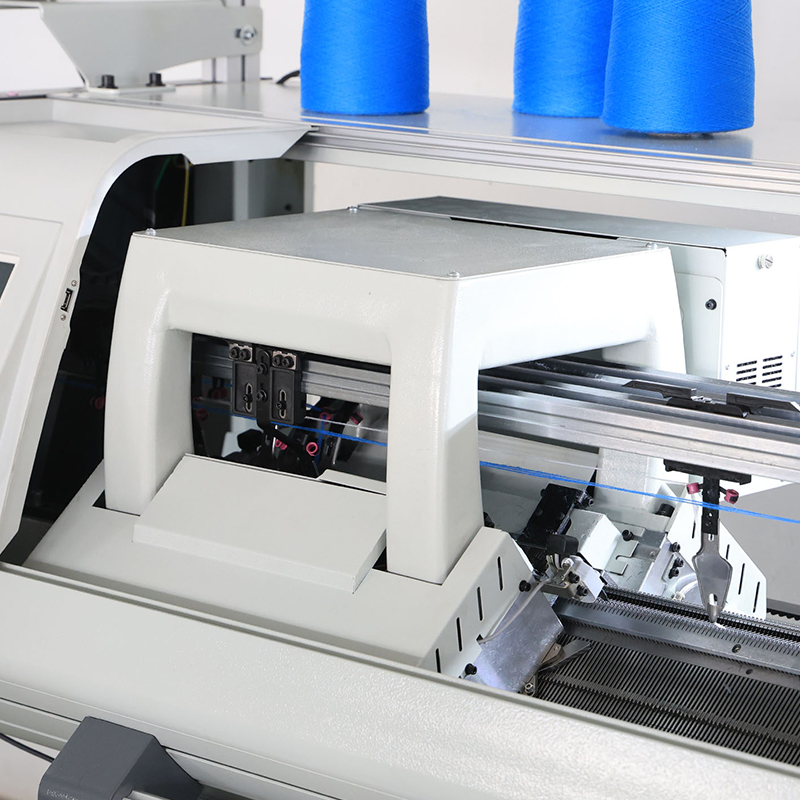

The defining competitive advantage of the GS-SN352 is its 5.2-inch extra-small carriage. This compact carriage design achieves an ideal balance between high-speed performance and low energy consumption, enabling three-system productivity at a more economical operating cost. Equally important is its impact on machine footprint: the smaller carriage reduces the overall machine size so significantly that the GS-SN352 occupies 30% less floor space than comparable standard-carriage machines. In practical terms, this means more machines can be installed within the same factory area, directly increasing per-square-meter output capacity — a tangible and measurable economic benefit for factories where space is a limiting factor.

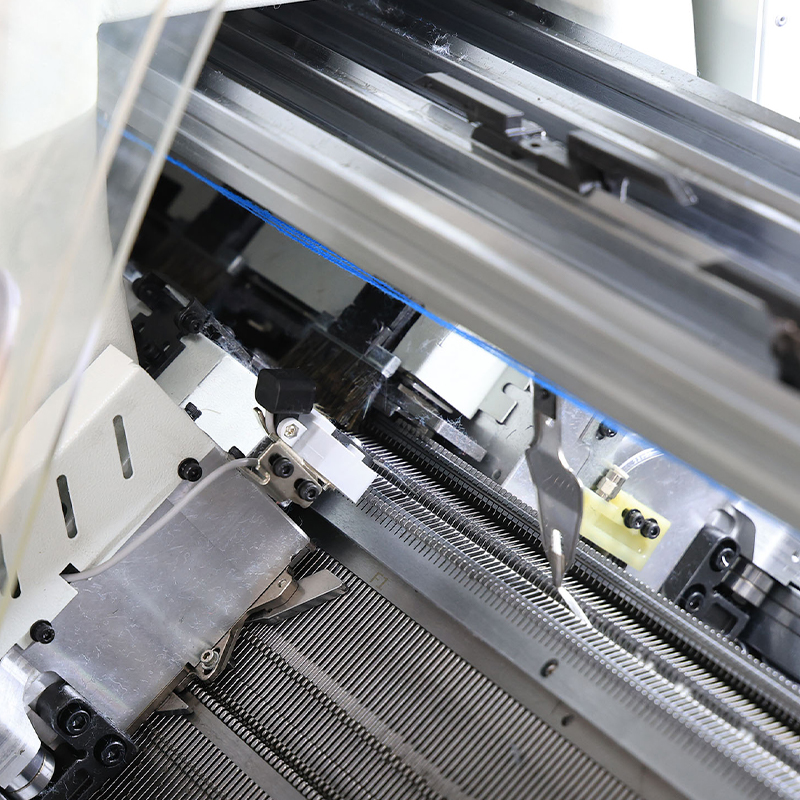

·Fixed-Track Cams — Low Failure Rate, High Reliability
The GS-SN352 adopts a fixed-track cam structure, which offers a mechanically simpler and more robust alternative to fully motorized variable cams. With fewer moving parts and reduced wear points, the fixed-track design delivers a lower failure rate and lower maintenance costs, making it particularly well-suited to production environments that prioritize continuous, reliable operation and have limited on-site maintenance resources. This architecture ensures the machine remains productive through extended production runs with minimal unplanned downtime.
·Broad Gauge Coverage for Diverse Products
Eleven gauge options are available — 3-5-7G, 5G, 6G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, and 16G — spanning the full range from coarse chunky knitwear through to fine 16G high-count fabrics. The standard 52-inch knitting width is complemented by optional configurations of 40, 60, and 80 inches to accommodate varying product dimensions. Supporting transfer, tuck, miss, jacquard, intarsia, and needle transfer, the machine handles the complete spectrum of professional knitting techniques across all mainstream product categories.
·Precision Stitch Density & Take-Down Control
Stitch density is controlled by a stepping motor with 128 (32) selectable levels and an adjustable range of 0–650 via subdivision technology, ensuring consistent fabric uniformity throughout high-volume production runs. The take-down roller system, also stepping motor–driven, provides 128 levels of tension control across a range of 0–100, precisely adapting to yarns of different weights and elasticity to maintain even fabric tension and prevent dimensional distortion.

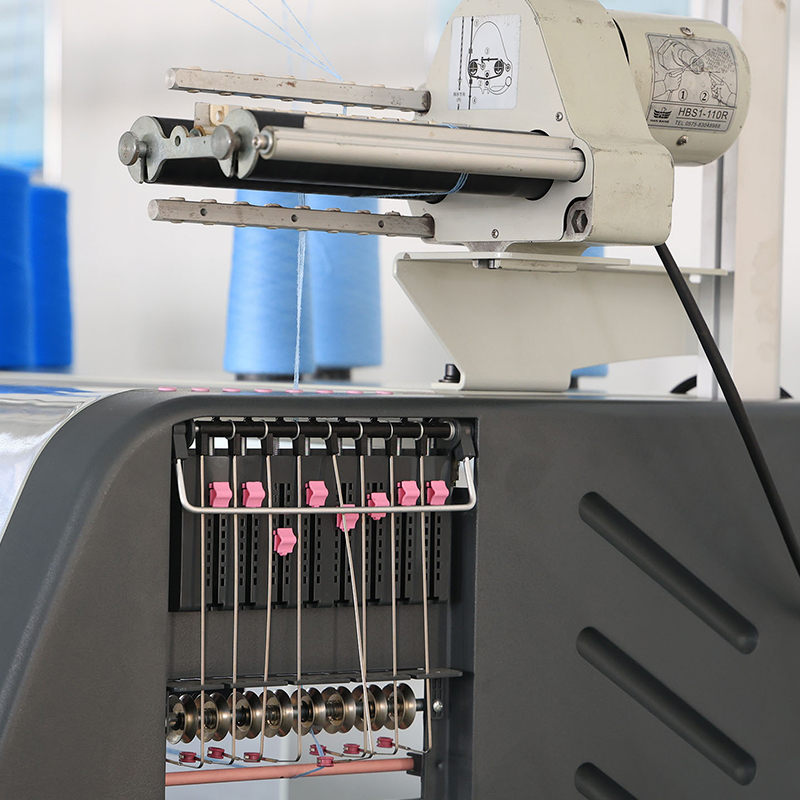

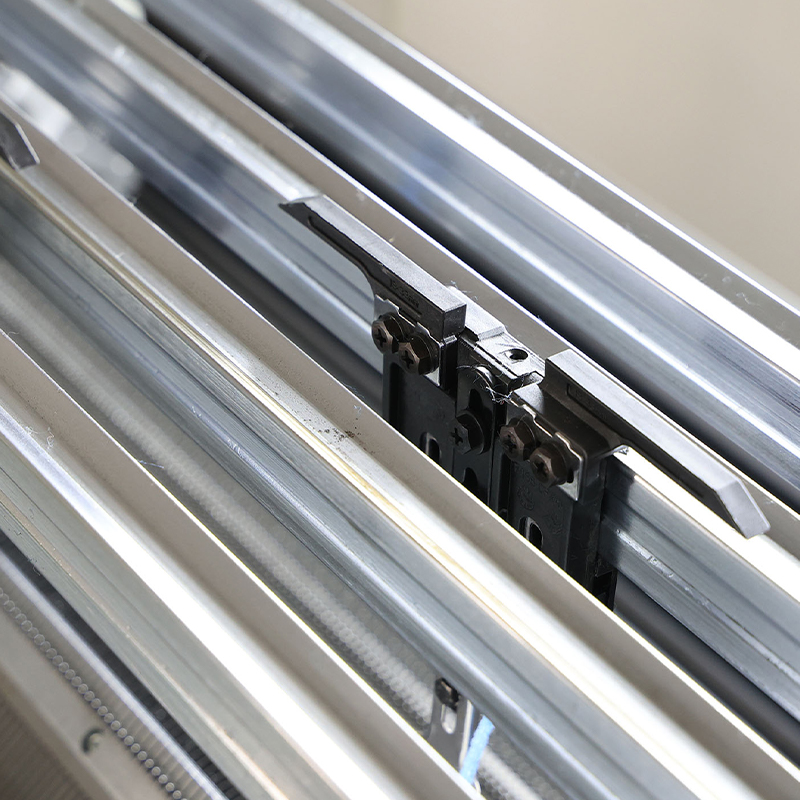

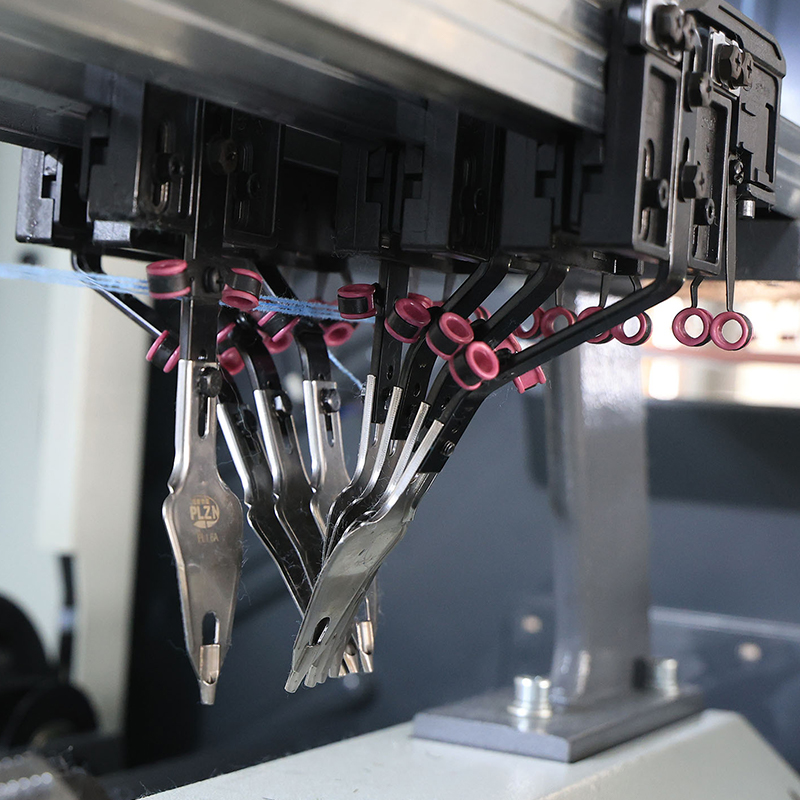

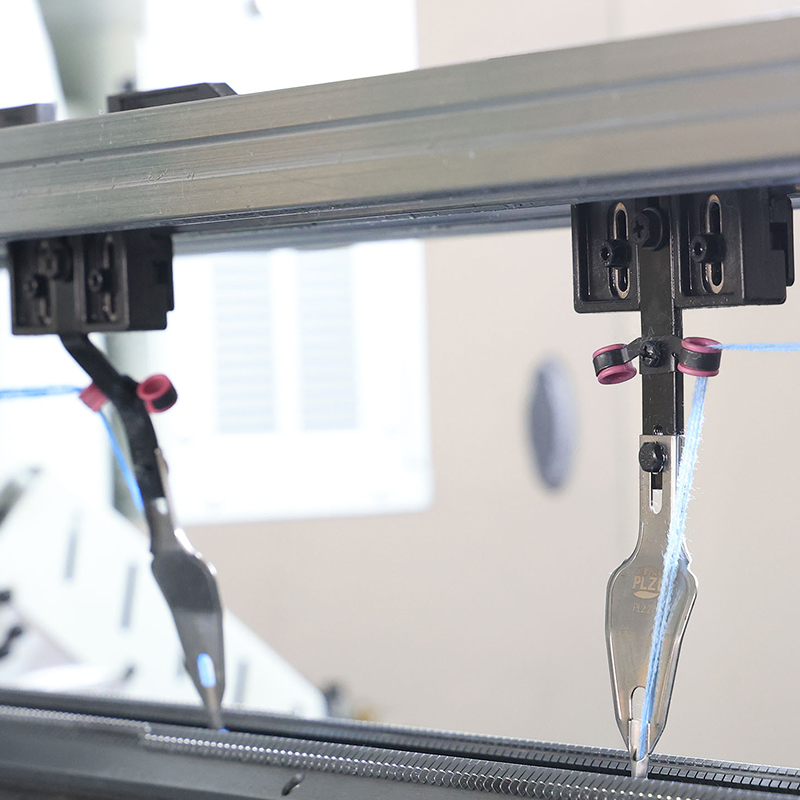

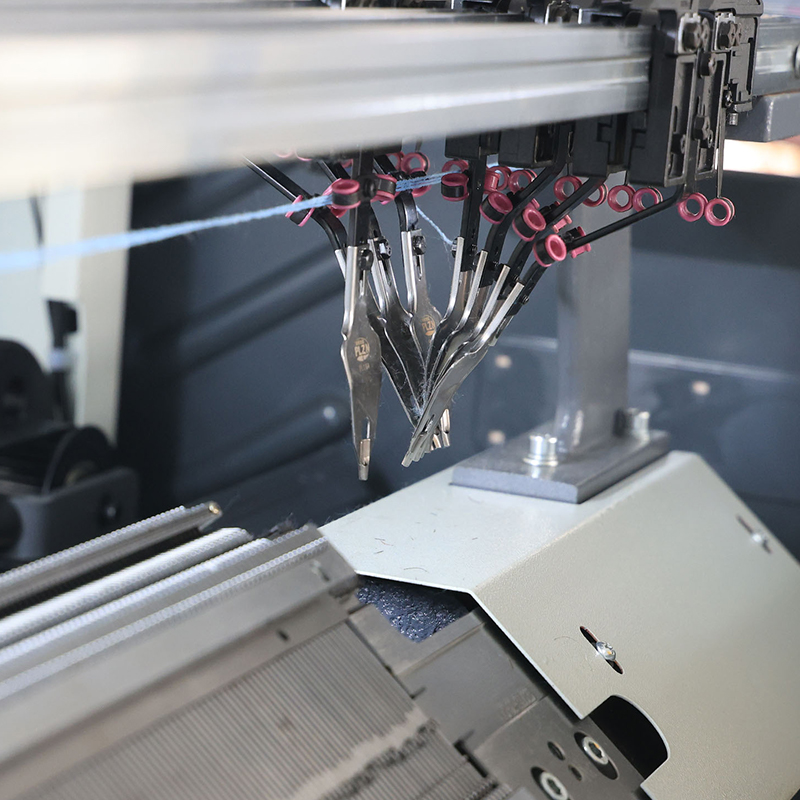

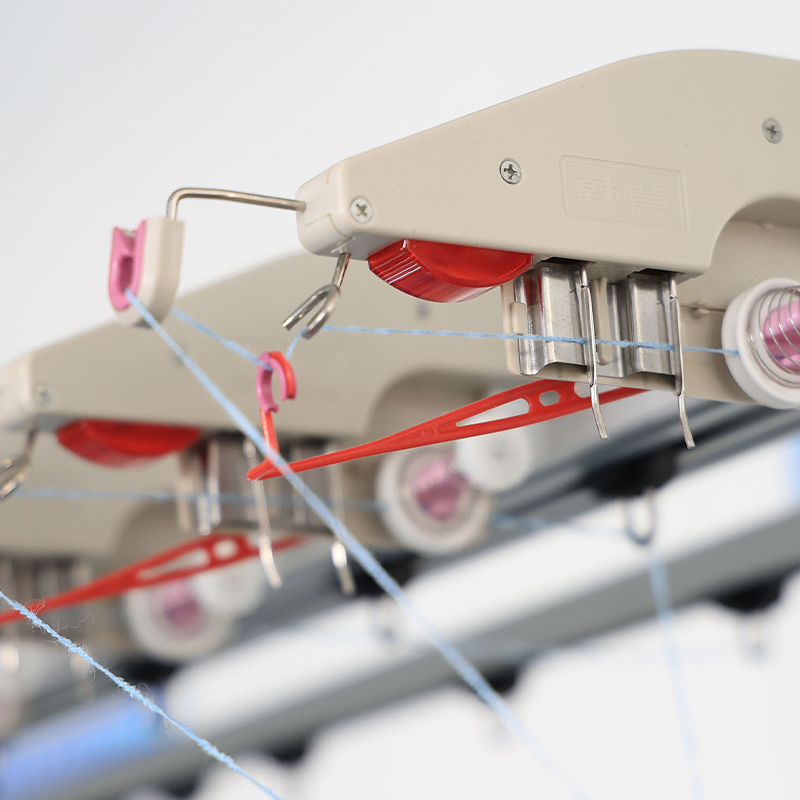

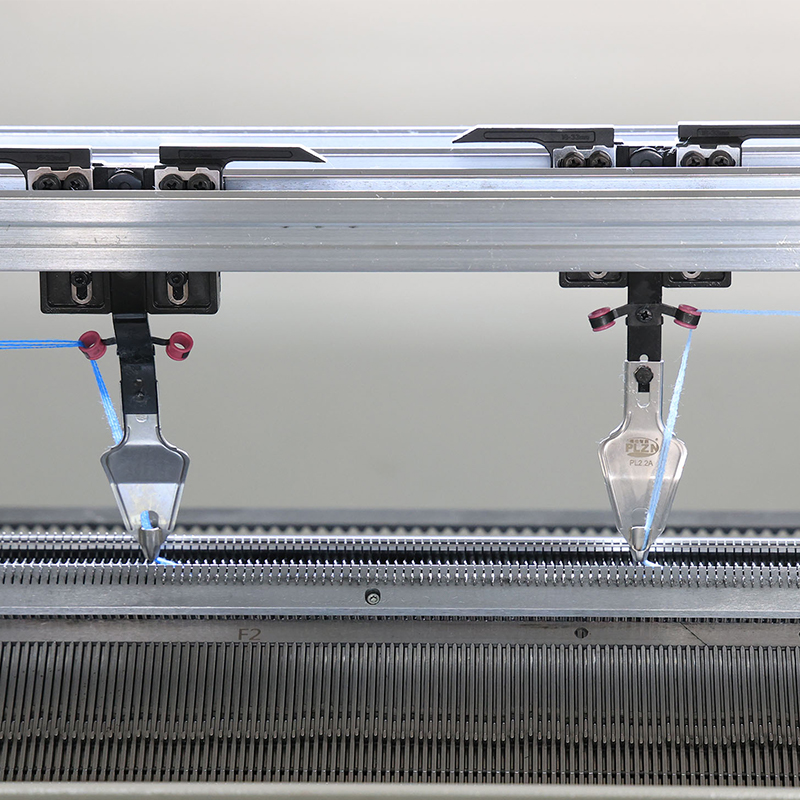

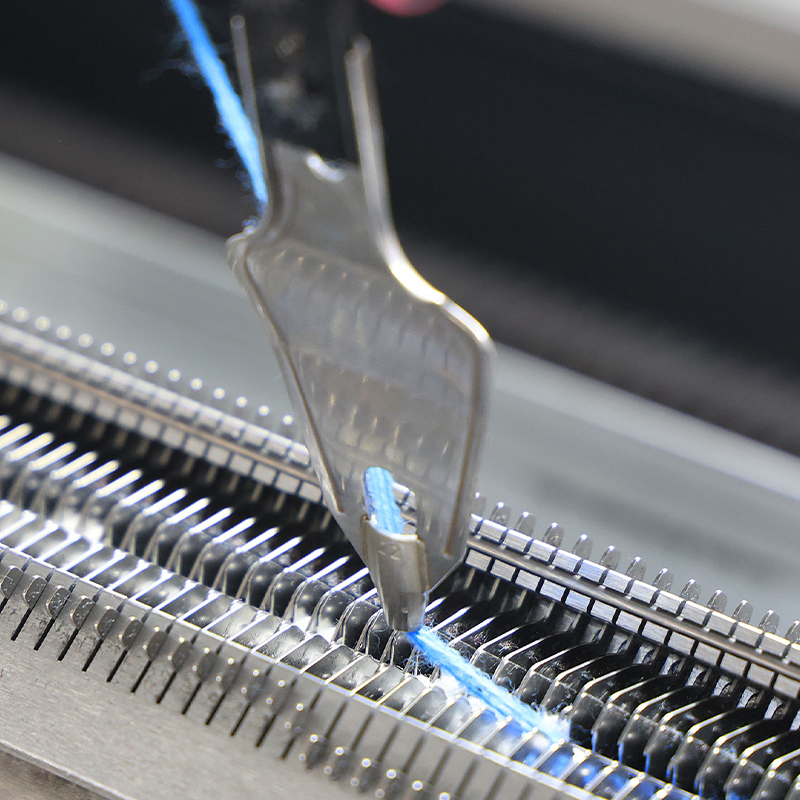

·16-Carrier Yarn System & Scissor-Clamp Assembly
The 16-carrier yarn system — mounted on both sides of 4 guide rails — enables yarn changes at any needle position, providing maximum flexibility for multi-color jacquard and intarsia production. The programmable left-right scissor and clamp system can operate synchronously or independently via program instruction, effectively minimizing yarn waste during color changes and reducing overall production costs.
·Intelligent Control & Comprehensive Protection

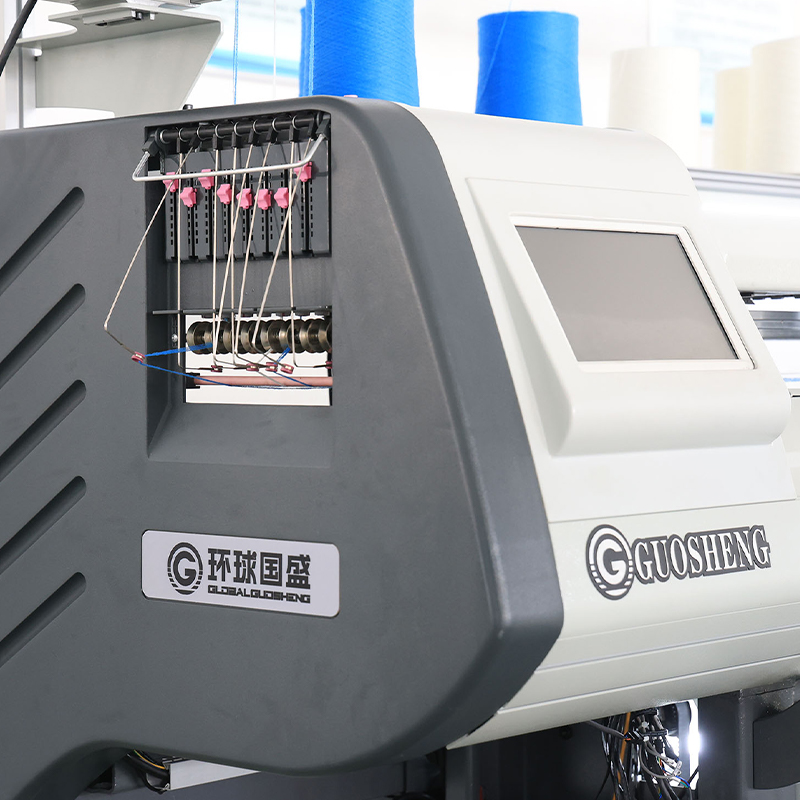

The control system features an LCD display with USB input and 256MB of onboard memory, supporting Chinese, English, and other languages. All operating parameters are visible and adjustable in real time during machine operation, making the interface accessible to operators at all skill levels. The protection system automatically alerts and halts the machine upon detecting yarn breakage, float yarn, rewinding faults, racking failure, needle collision, safety door events, or programming errors — providing comprehensive protection for both machine and operator. The machine operates on a standard 220V single-phase power supply with a power-off memory function to safeguard production data against unexpected interruptions.

Model	GS-SN352
Gauge	3-5-7G、5G、6G、7G、8G、9G、10G、12G、13G、14G、16G
Knitting System	Three System, Single Carriage
Knitting Width	52 Inch, Choose 40、60、80 Inch
Knitting Speed	Max. 1.5m/s
Knitting Function	Transfer, tuck, miss, jacquard, intarsia, needle transfer.
Stitch Density	Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
Racking	Controlled by AC servo motor, racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive, AC servo system.
Needle Selection	Controlled by computer, electric magnet/motor needle choose system with high efficiency.

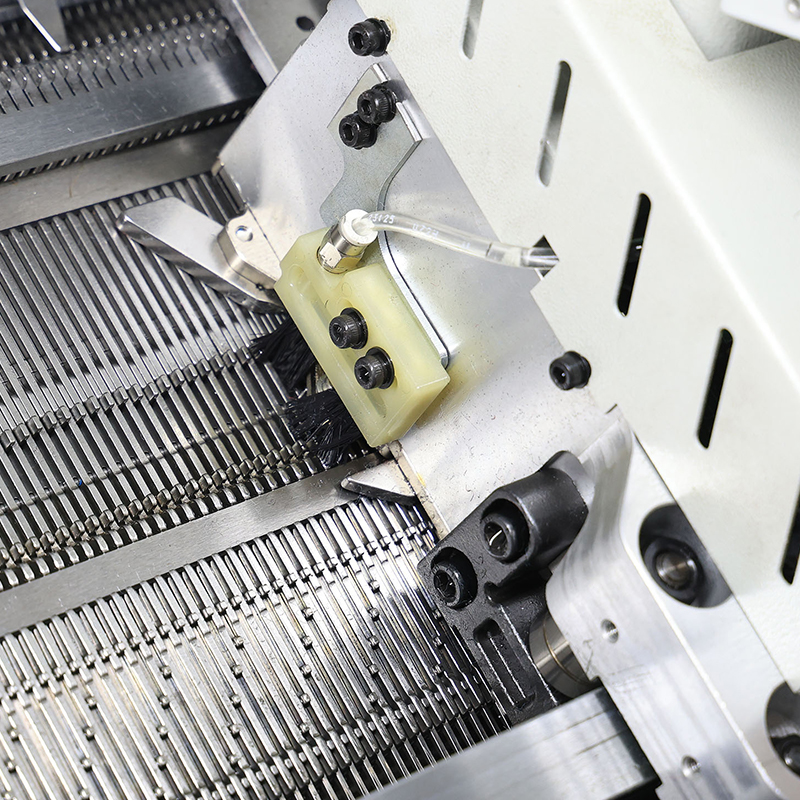

Scissor & Clamp	The left and right scissors clips can be synchronized or separated by the program instructions, effectively reducing yarn waste.
Yarn Carrier	16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc.
Control System	1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored. 2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3. Design system is visual and easy to understand and upgrade. 4. Multi-language version, there are Chinese, English etc.



Power	220V, single-phase, have memorizing function at the power-off moment.
