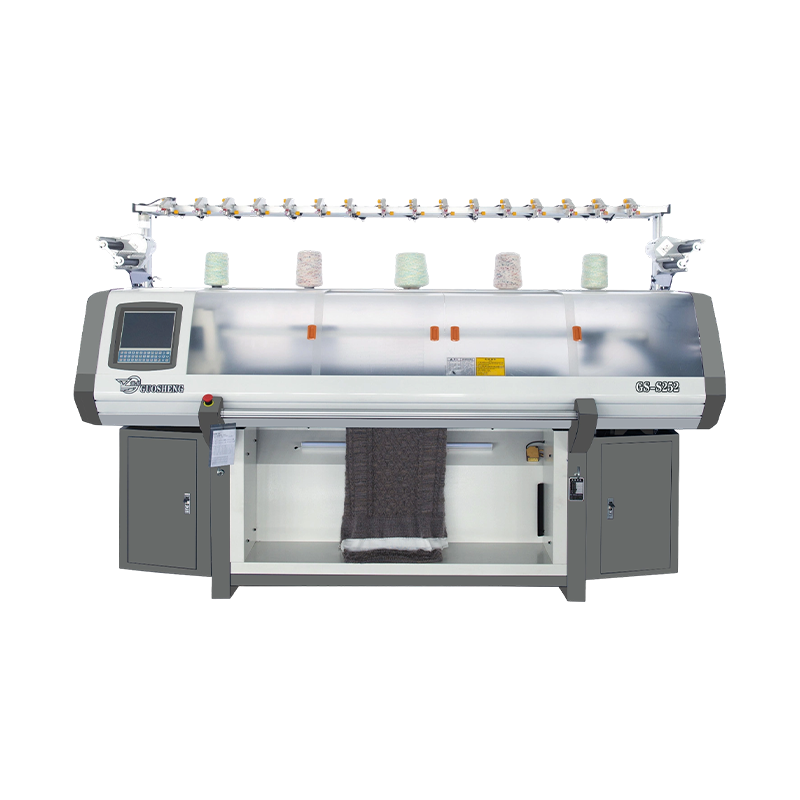

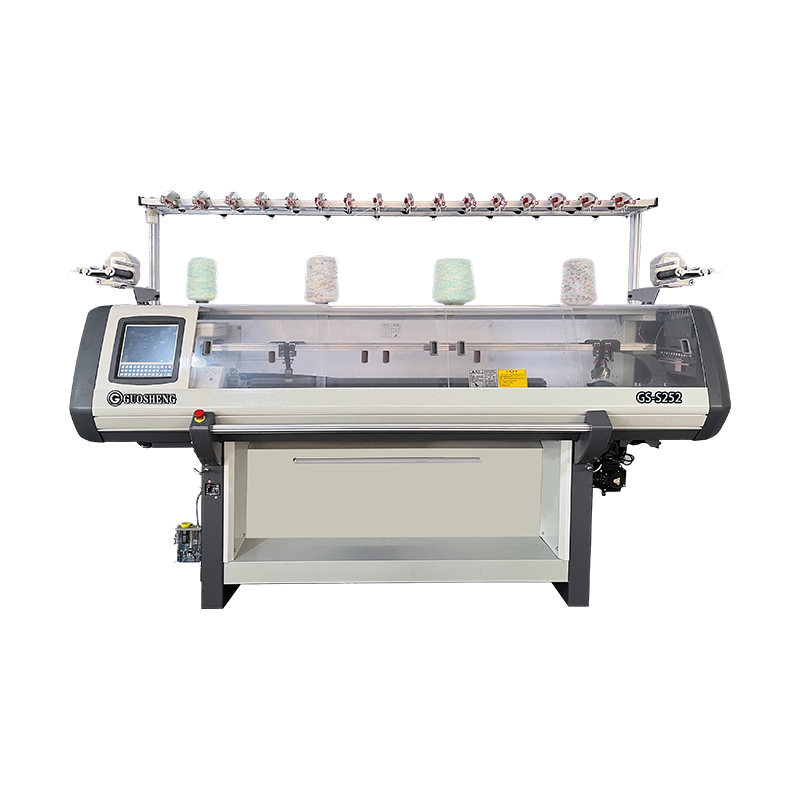

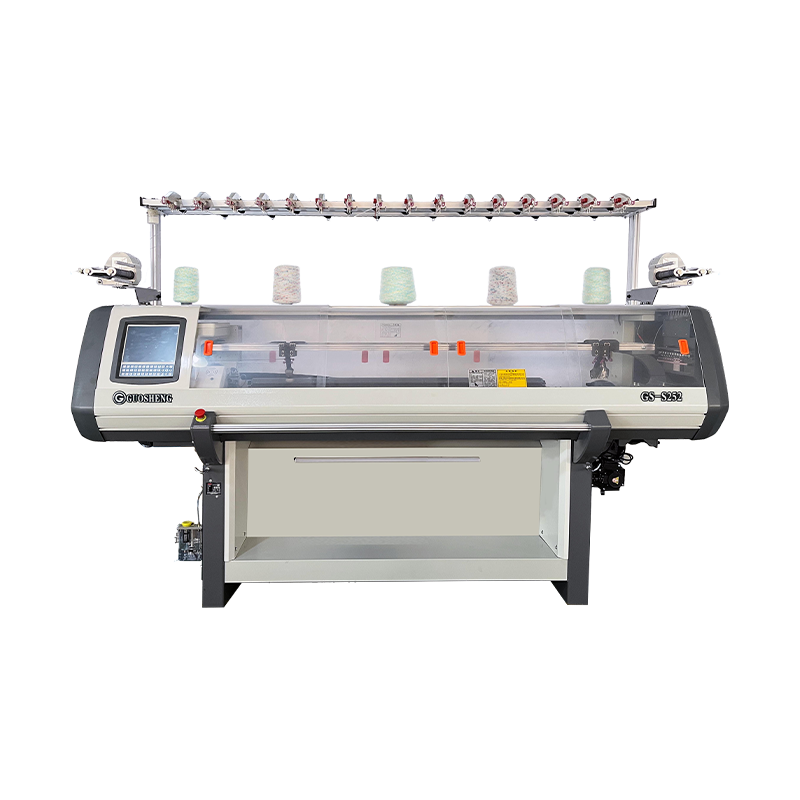

GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine
GS-S252 52-Inch Double System Sweater Knitting Machine

GS-S252 52-Inch Double System Sweater Knitting Machine

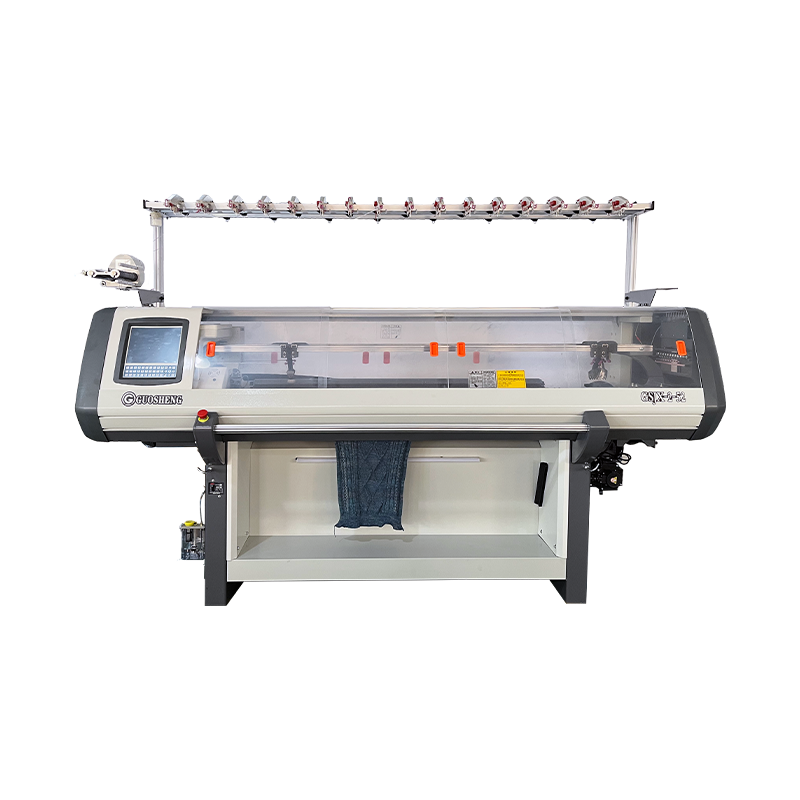

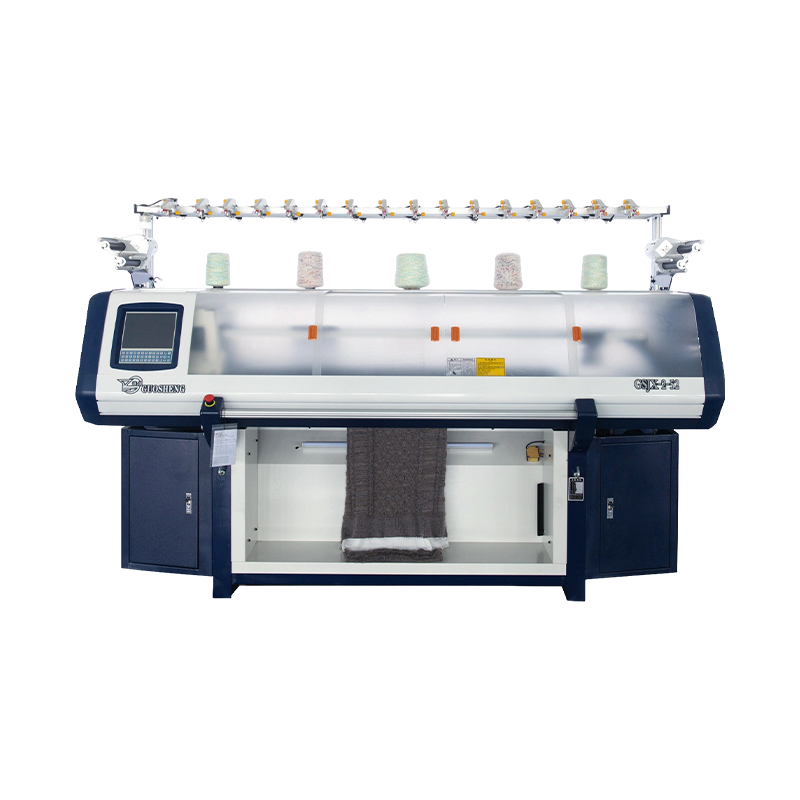

The GS-S252 52-Inch Double System Sweater Knitting Machine is a professional flat knitting machine engineered for modern knitwear manufacturing facilities. As the flagship model of the Full Function S series, it delivers an exceptional combination of high speed, versatile pattern capability, and intelligent control — built to meet the demands of both large-scale production and premium quality craftsmanship.
Get A Quote
PREV：GS-S252C 52-Inch Double System Compound Needle Bottom-Up Sweater Knitting MachineNEXT：No next article
  • Product Introduction
  • Machine parameters
  • video
  • Contact Us

  • ·Gauge Range & Knitting System
    The GS-S252 supports an extensive range of 13 gauge options — 3G, 3.5G, 3-5-7G, 5G, 6G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, and 15G — covering everything from heavy chunky knitwear to fine-gauge fashion garments. The double system single carriage configuration, combined with a generous 52-inch knitting width, enables efficient production across a wide variety of fabric structures, with a maximum speed of 1.4 m/s for outstanding throughput.
    ·Versatile Knitting Functions
    The machine supports an impressive array of knitting techniques including transfer, tuck, miss, jacquard, intarsia, and both hide and apparent shaping. This breadth of capability makes the GS-S252 an ideal solution for producing fashion knitwear, technical textiles, and high-end sweaters with complex pattern structures.
    ·Precision Stitch Density Control
    Stitch density is controlled by a stepping motor with 128 selectable levels and an adjustable range of 0–650 using subdivision technology, ensuring consistent fabric quality across long production runs and minimizing defect rates.
    ·Advanced Needle Selection & Yarn Carrier System

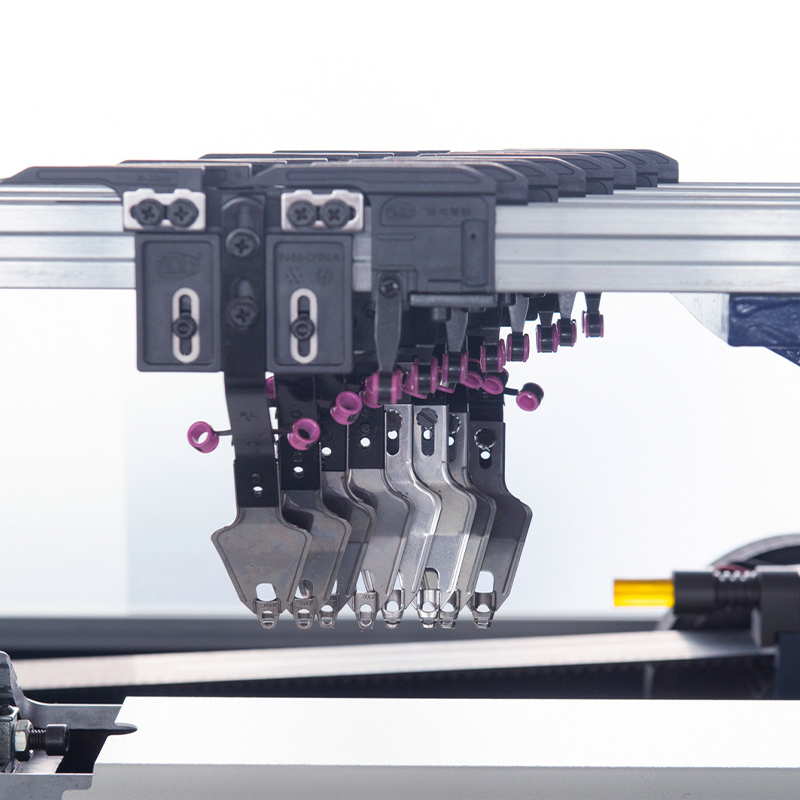

    The electromagnetic needle selection system, governed by computer control, delivers stable and highly efficient needle actuation. The 2×8 yarn carrier configuration — mounted on either side of 4 guide rails — allows yarn changes at any needle position, providing maximum flexibility for multi-color jacquard and intarsia designs.
    ·Intelligent Control System
    The intuitive LCD control interface supports USB input and 256MB of onboard memory for storing a large library of design files. All operating parameters are displayed in real time and can be adjusted while the machine is running, streamlining workflow and reducing downtime. The built-in design system is user-friendly and straightforward, supporting multiple languages including Chinese and English to serve a global customer base.
    ·Robust Protection & Drive Systems
    The synchronous belt drive with AC servo motor control ensures smooth, responsive operation. The racking system — also servo-driven — offers a range of up to 2 inches with fine-tuning capability. A comprehensive protection system automatically triggers alarms in the event of yarn breakage, float yarn, rewinding faults, end-of-knitting signals, racking failure, needle breakage, or programming errors, safeguarding both operator safety and machine integrity. The machine operates on a standard 220V single-phase power supply and features a power-off memory function to preserve work-in-progress data in the event of unexpected power interruptions.

  • Model GS-S252
    Gauge 1.5G, 3G, 3.5G, 3-5-7G, 5G, 7G, 8 G, 9G, 10G, 12G, 13G, 14G, 15G, 16G, 18G
    Knitting System Double System, Single Carriage
    Knitting Width 52 Inch, Choose 36, 44, 52, 60, 66, 72, 80, 100 Inch
    Knitting Speed Max 1.5 m/s
    Knitting Function Knitting and tuck in same line, transfer, tuck, miss, jacquard, intarsia, hide or apparent shaping.
    Stitch Density Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
    Racking Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Drive System Synchronous belt drive, AC servo system.
    Needle Selection Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Yarn Carrier 16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.

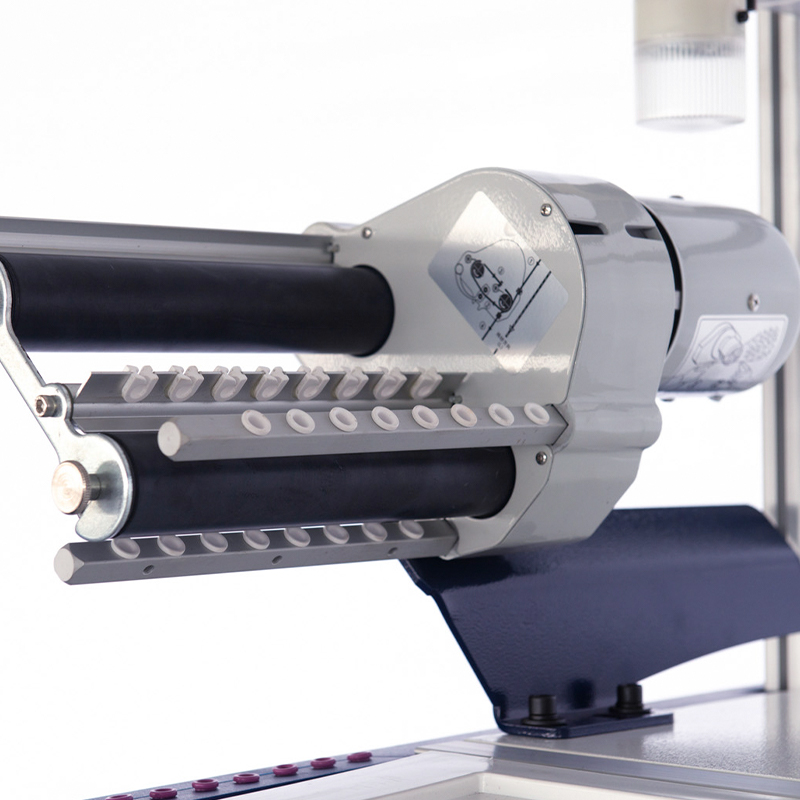

    Take Down Roller Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area:0-100.
    Protection System The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc.
    Control System 1. Adopt LCD screen, input device: USB,system memory 256MB, a great amount of design files can be stored.
    2. Monitoring menu, each kind of operating parameter, can be shown,and they can be adjusted at any time when the machine is running.
    3. Design system is visual and easy to understand and upgrade
    4. Multi language version, there are Chinese, English etc.
    Power 220V, single-phase, have memorizing function at the power-off moment.
