GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine

GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine

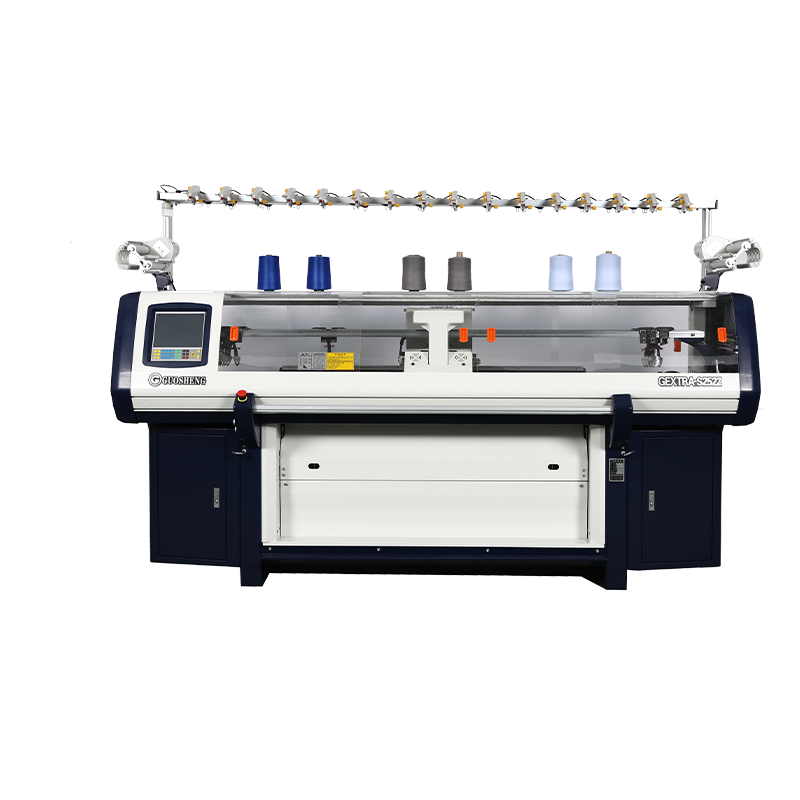

The GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine is a purpose-engineered model within GUOSHENG MACHINERY's Full Function S series, developed specifically for knitwear manufacturers who place a premium on material efficiency and sustainable production. Building on the proven technical platform shared across the S series, the GS-S252Z sets itself apart through its dedicated no-waste-yarn bottom-up comb system — eliminating yarn waste from the very first stitch and delivering measurable cost savings across every production run.
Get A Quote
PREV：No previous articleNEXT：GS-S252C 52-Inch Double System Compound Needle Bottom-Up Sweater Knitting Machine
  • Product Introduction
  • Machine parameters
  • video
  • Contact Us

  • ·Gauge Range & System Configuration
    The GS-S252Z supports 10 gauge options — 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, and 14G — covering a broad spectrum from heavy chunky knitwear to fine-gauge fashion fabrics. The double system single carriage configuration delivers a standard 52-inch knitting width, with optional widths of 36, 44, 60, 66, 72, and 80 inches available to suit varying product dimensions. A maximum speed of 1.5 m/s ensures strong production throughput without compromising knitting precision.
    ·Core Innovation: No-Waste-Yarn Bottom-Up Comb

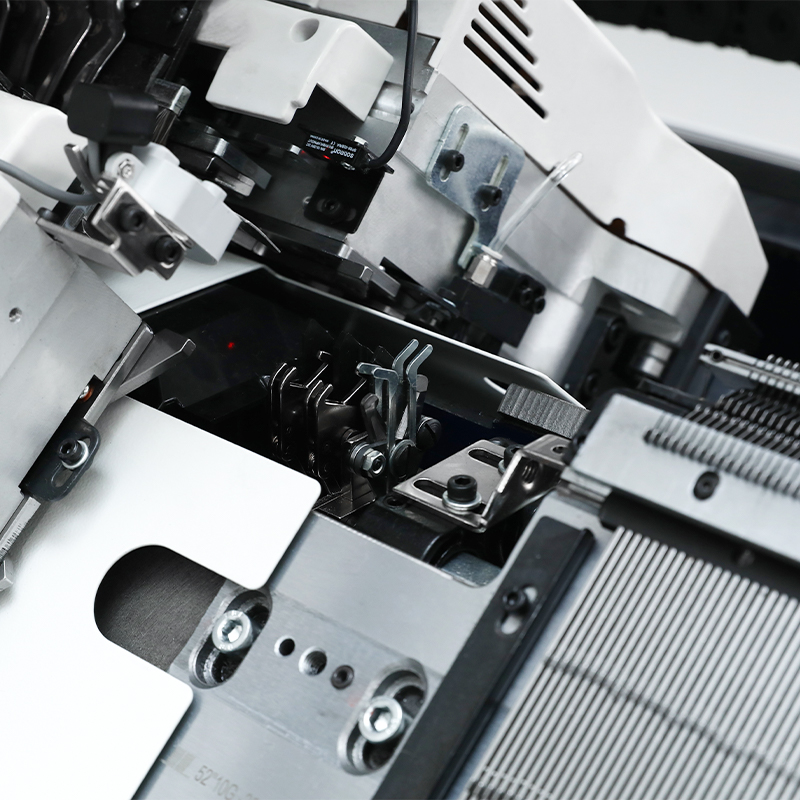

    The defining feature of the GS-S252Z is its no-waste-yarn bottom-up comb (also compatible with compound needle type), which eliminates the yarn tail waste inherent in conventional cast-on processes. In large-scale production environments, this translates into substantial raw material savings on every piece, lowering the per-unit cost and reducing waste handling. This innovation is fully aligned with the textile industry's growing commitment to lean manufacturing and environmental responsibility.
    ·5.2-Inch Fully Motorized Cam

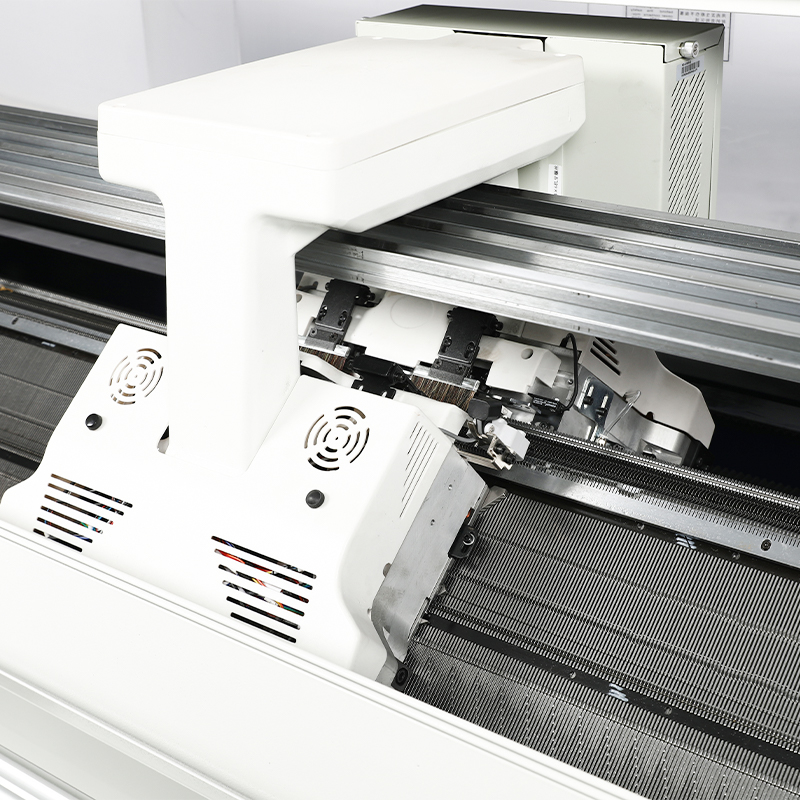

    The machine is equipped with a 5.2-inch fully motorized cam system, offering a compact carriage footprint and rapid rotation speed. Its variable stitch density function allows real-time adjustment of stitch length across different fabric structures, enabling richer and more diverse pattern output. The fully motorized design ensures consistent, reliable performance throughout extended production shifts while minimizing mechanical setup time.
    ·Comprehensive Knitting Functions
    Supporting transfer, tuck, miss, jacquard, intarsia, and needle transfer, the GS-S252Z handles the full range of professional knitting techniques. From classic stitch structures to intricate multi-color patterns and fully fashioned shaped garments, this machine provides the versatility to meet both sampling and mass production demands across a wide variety of knitwear categories.
    ·Precision Stitch Density & Take-Down Control
    Stitch density is controlled by a stepping motor with 128 (32) selectable levels and an adjustable range of 0–650 via subdivision technology, ensuring consistent fabric uniformity throughout long production runs. The take-down roller system, also stepping motor–driven, provides 128 levels of tension control across a range of 0–100, precisely adapting to yarns of different weights and elasticity to prevent fabric distortion or uneven tension.
    ·16-Carrier Yarn System & Scissor-Clamp Assembly

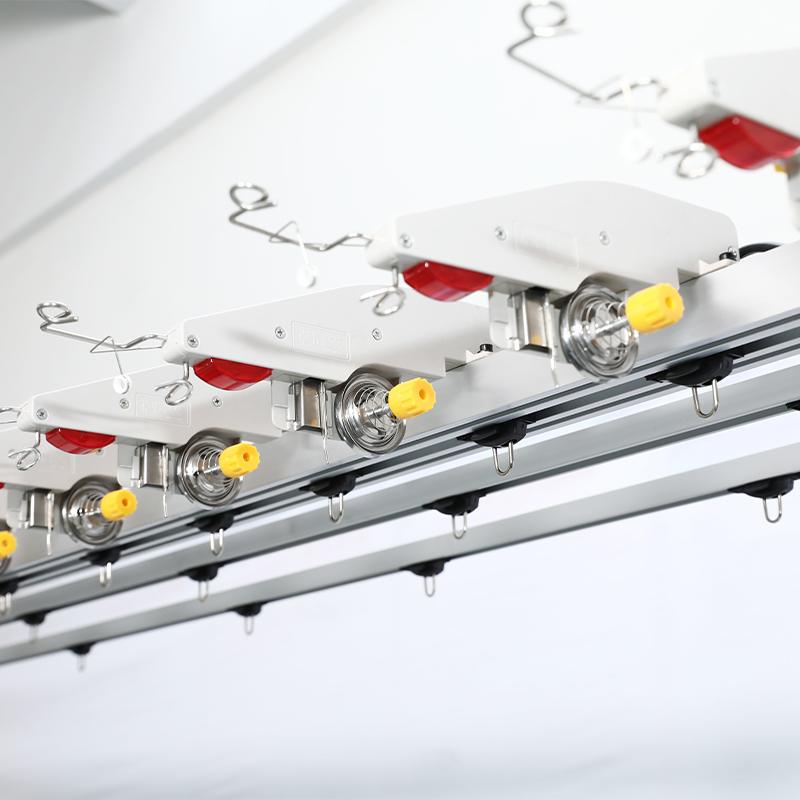

    The 16-carrier yarn system, distributed across both sides of 4 guide rails, enables yarn changes at any needle bed position — offering maximum flexibility for multi-color jacquard and intarsia production. The programmable left-right scissor and clamp assembly can operate synchronously or independently, working in tandem with the no-waste-yarn comb to minimize yarn consumption at every stage of the knitting process, from cast-on through to bind-off.
    ·Automatic Oil Supply & Sinker Assist System

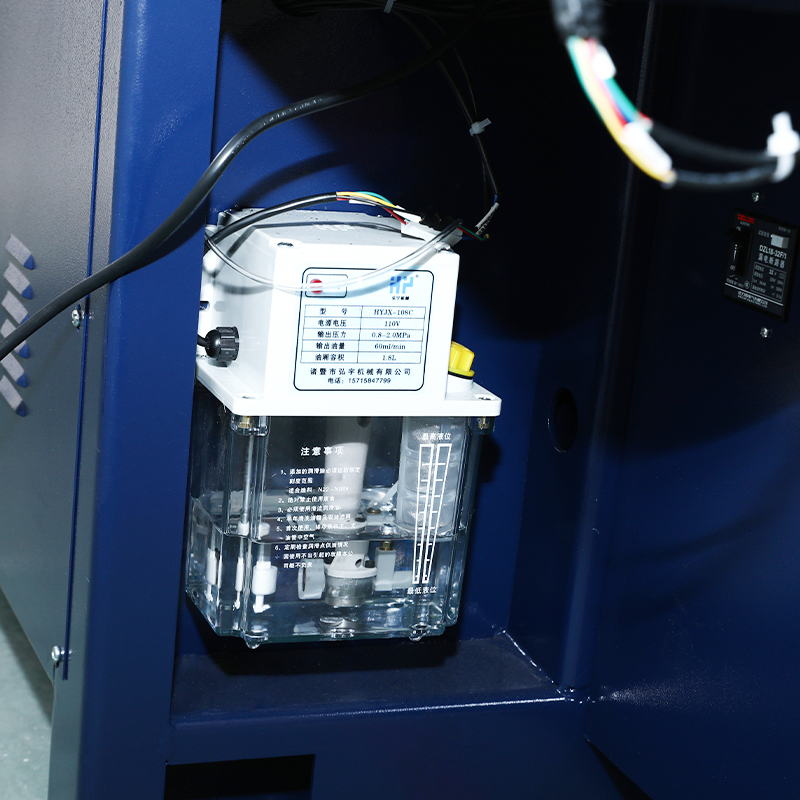

    The integrated automatic oil supply system continuously lubricates the knitting needles, reducing wear, extending component service life, and decreasing the frequency of maintenance stops. The sinker assist system supports the knitting process, improving fabric formation quality and ensuring consistent surface evenness across all fabric types.
    ·Intelligent Control & Comprehensive Protection
    The control system features an LCD display with USB input and 256MB of onboard memory for storing extensive design file libraries. The intuitive interface supports Chinese, English, and other languages, with all operating parameters visible and adjustable in real time while the machine is running. The protection system automatically alerts and halts operation upon detecting yarn breakage, float yarn, rewinding faults, racking failure, needle collision, safety door events, or programming errors — comprehensively safeguarding both operator safety and machine integrity. The machine operates on a standard 220V single-phase power supply with a power-off memory function to protect production data against unexpected interruptions.

  • Model GS-S252Z
    Gauge 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, 14G
    Knitting System Double System, Single Carriage
    Knitting Width 52 Inch, Choose 36, 44, 52, 60, 66, 72, 80 Inch
    Knitting Speed Max 1.5 m/s
    Knitting Function Transfer, tuck, miss, jacquard, intarsia, needle transfer.
    Stitch Density Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
    Racking Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Drive System Synchronous belt drive, AC servo system.
    Needle Selection Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Yarn Carrier 16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
    Take Down Roller Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area:0-100.
    Protection System The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc.
    Control System 1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored.
    2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running.
    3. Design system is visual and easy to understand and upgrade
    4. Multi language version, there are Chinese, English etc.
    Power 220V, single-phase, have memorizing function at the power-off moment.
  • GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
    GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
