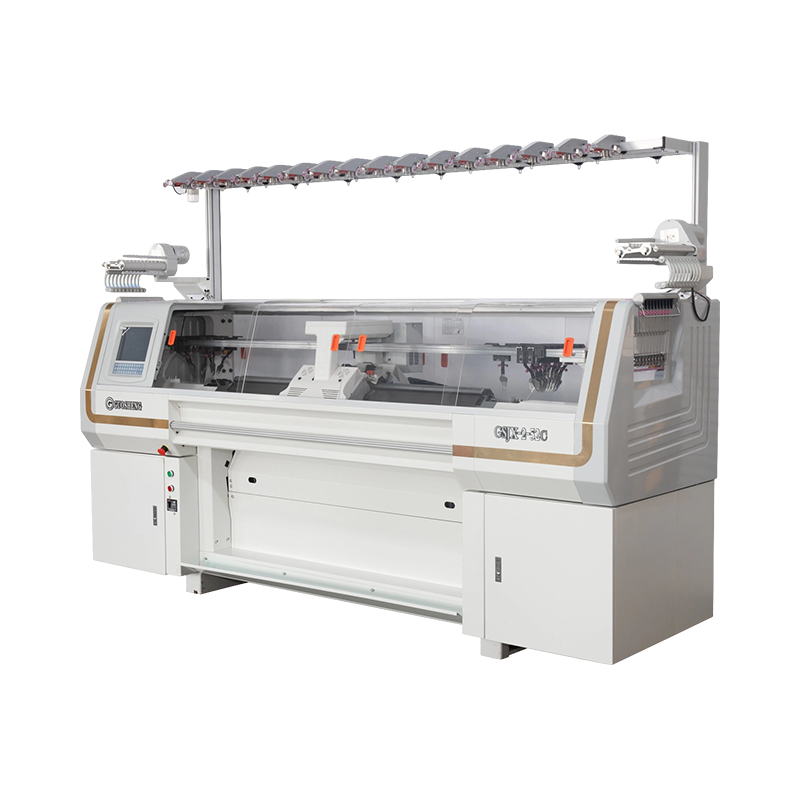

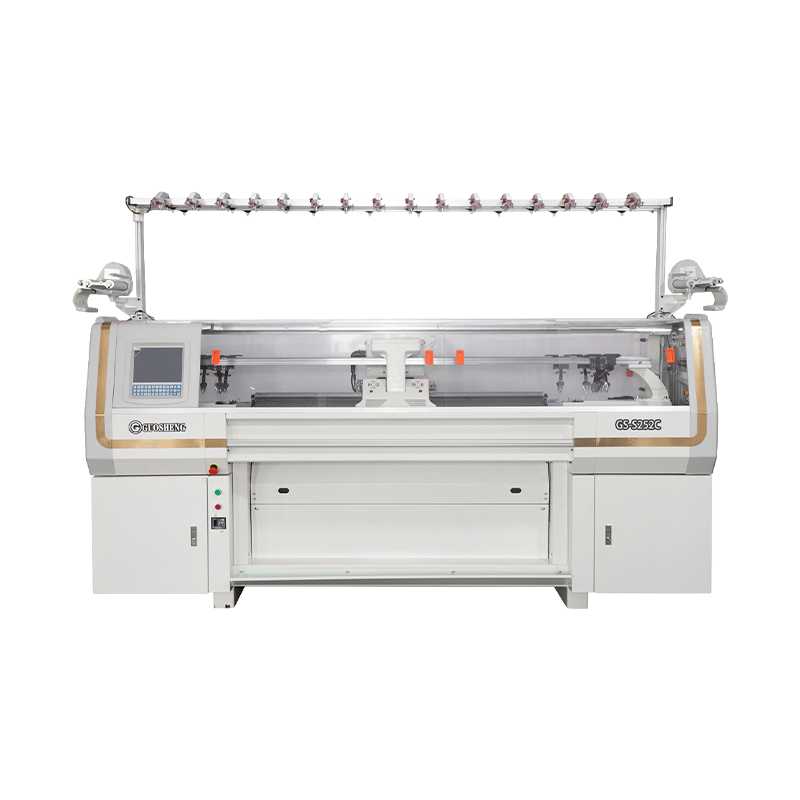

The GS-S252C 52-Inch Double System Compound Needle Bottom-Up Sweater Knitting Machine is the upgraded flagship of GUOSHENG MACHINERY's Full Function S series. Building on the comprehensive capabilities of the GS-S252, this model introduces a compound needle / no-waste-yarn bottom-up comb system and a 5.2-inch fully motorized cam, elevating knitting efficiency, pattern versatility, and material economy to a new level — making it the ideal choice for modern knitwear factories demanding both high quality and high productivity.
Get A Quote
PREV：GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting MachineNEXT：GS-S252 52-Inch Double System Sweater Knitting Machine
  • Product Introduction
  • Machine parameters
  • video
  • Contact Us

  • ·Gauge Range & System Configuration
    The GS-S252C is available in 10 gauge options — 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, and 14G — spanning coarse chunky knits through to fine-gauge fashion fabrics. The double system single carriage structure offers a standard 52-inch knitting width, with optional widths of 36, 44, 60, 66, 72, and 80 inches to accommodate diverse product requirements. A maximum knitting speed of 1.5 m/s delivers a meaningful efficiency advantage over comparable machines.
    ·Key Innovation: 5.2-Inch Fully Motorized Cam

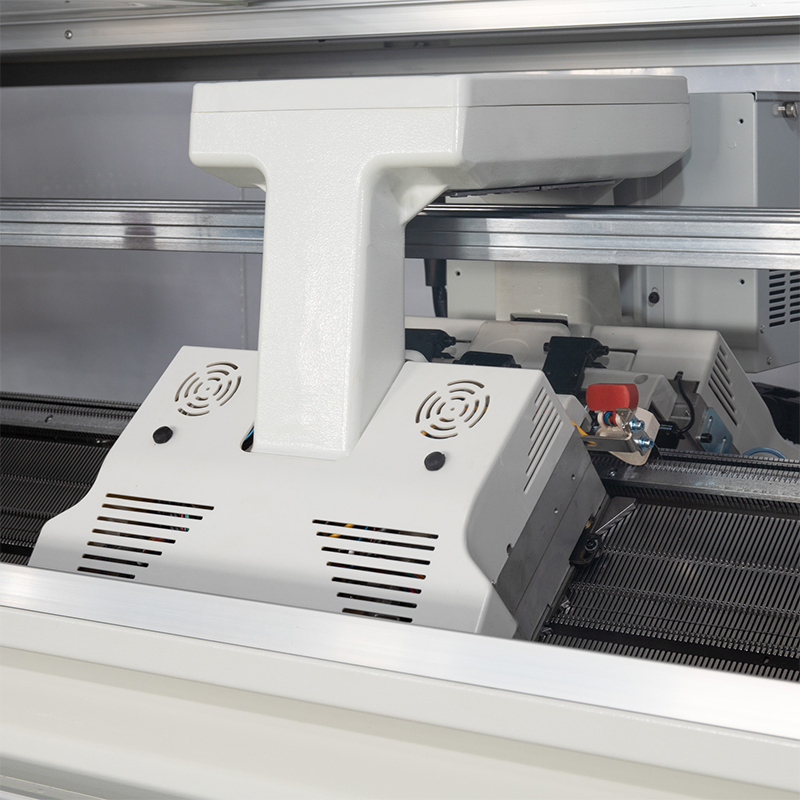

    The GS-S252C features a compact 5.2-inch fully motorized cam system that enables fast carriage rotation and variable stitch density control. Stitch length can be adjusted in real time to suit different fabric structures, resulting in richer and more diverse pattern expression. The design is engineered for stable, reliable performance across long production runs.
    ·Compound Needle / No-Waste-Yarn Bottom-Up Comb
    One of the most distinctive features of the GS-S252C is its selectable compound needle or no-waste-yarn bottom-up comb system. This innovation significantly reduces yarn waste from the very first row of knitting, lowering raw material costs while improving cast-on quality and efficiency — fully aligned with the industry's shift toward greener, more sustainable manufacturing.
    ·Versatile Knitting Functions
    Supporting transfer, tuck, miss, jacquard, intarsia, and needle transfer, the GS-S252C handles a wide spectrum of complex fabric structures. From fashionable jacquard sweaters and intarsia colorwork to fully fashioned shaped garments, this machine delivers consistent, high-quality results across all pattern types.
    ·Precision Stitch Density & Take-Down Control
    Stitch density is controlled by a stepping motor with 128 (32) selectable levels and an adjustable range of 0–650 using subdivision technology, ensuring uniform fabric quality throughout production. The take-down roller system, also stepping motor–controlled, provides 128 levels of tension adjustment across a range of 0–100, precisely accommodating yarns of varying weight and elasticity.

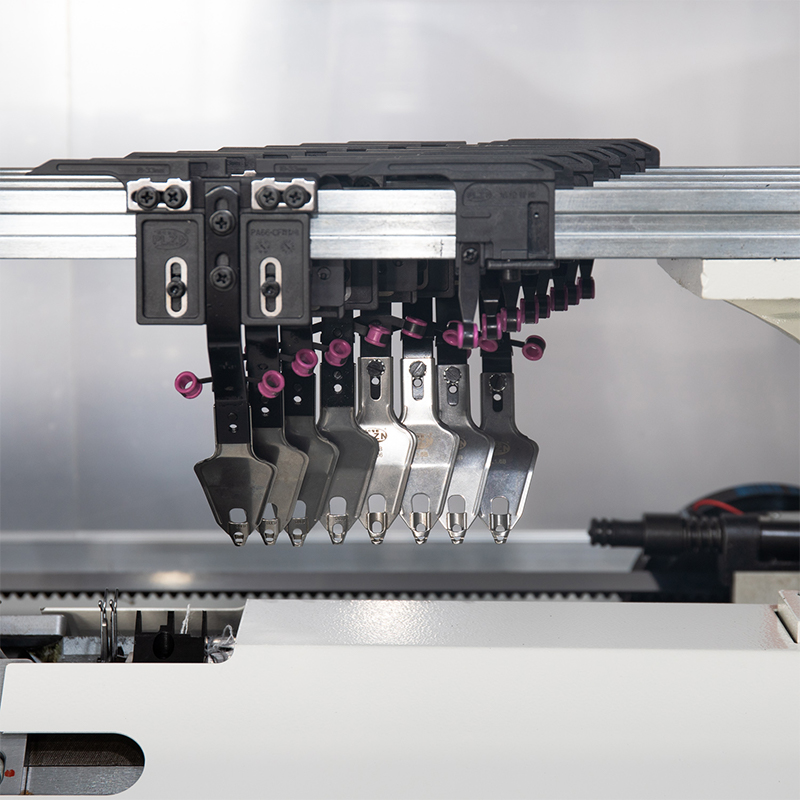

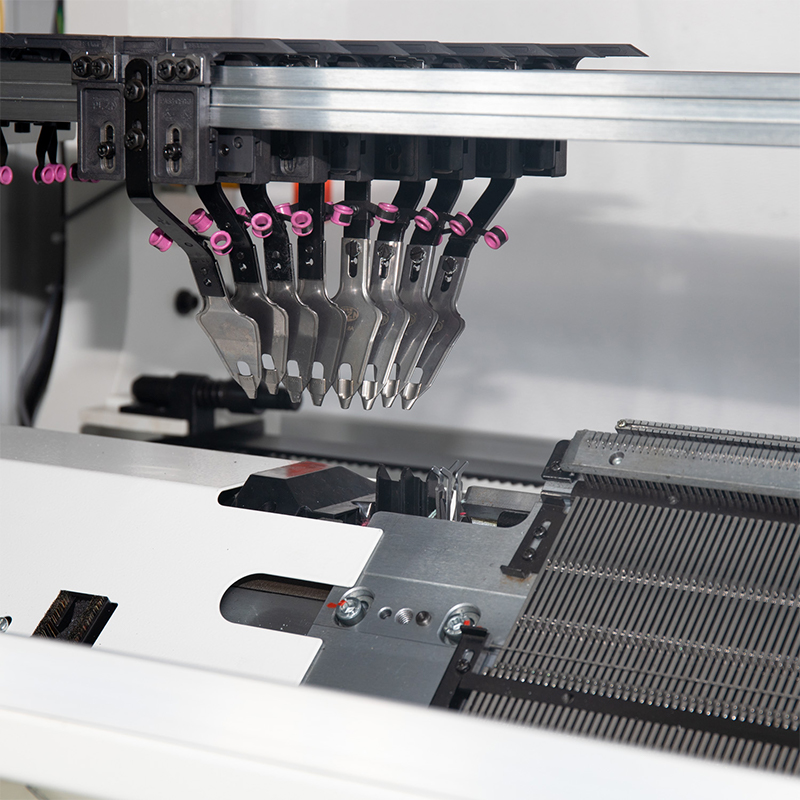

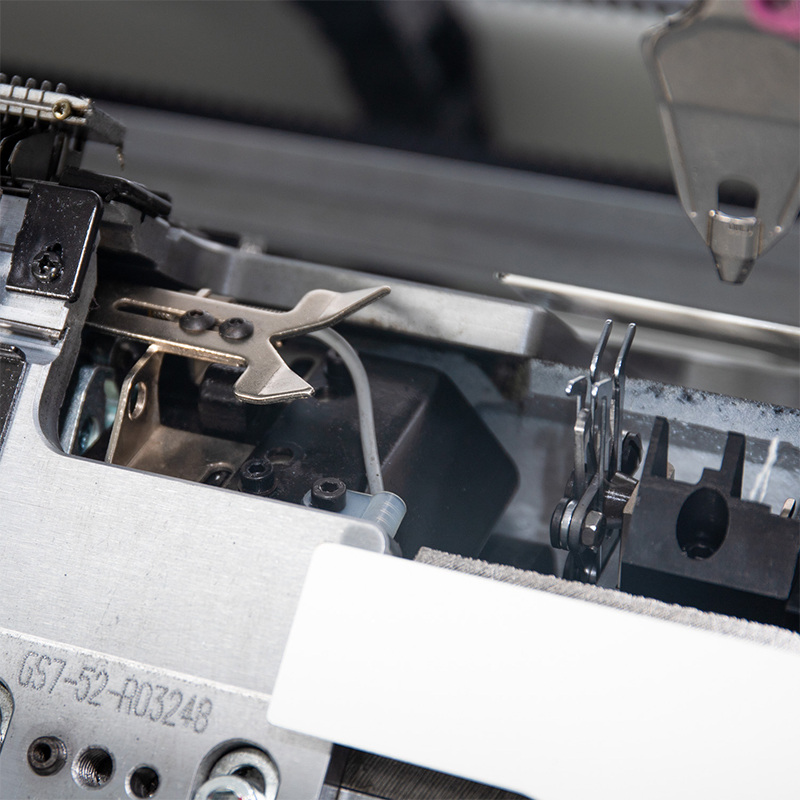

    ·Efficient Yarn Carrier & Scissor-Clamp System

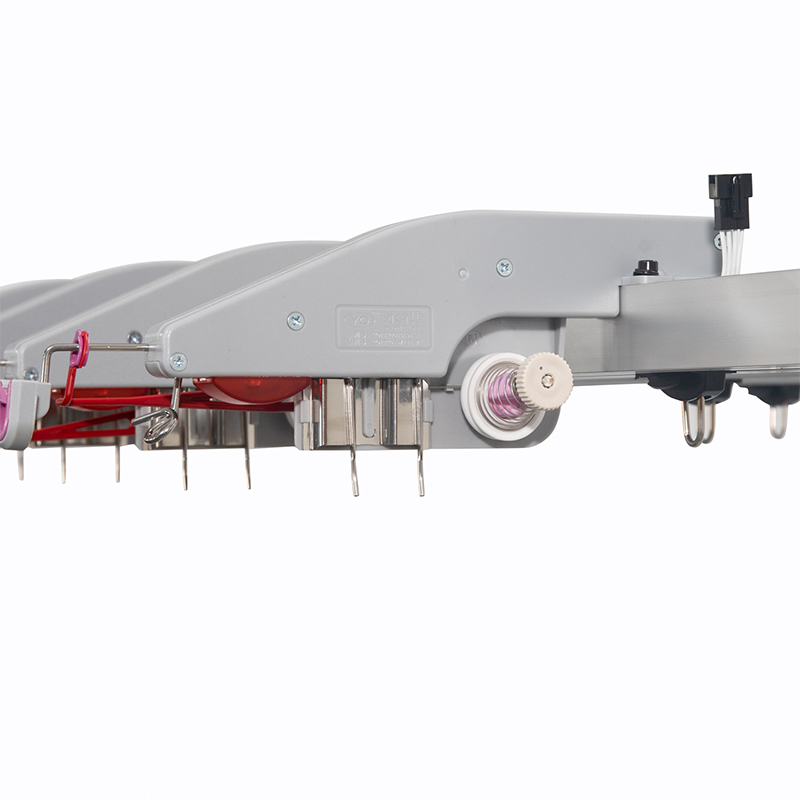

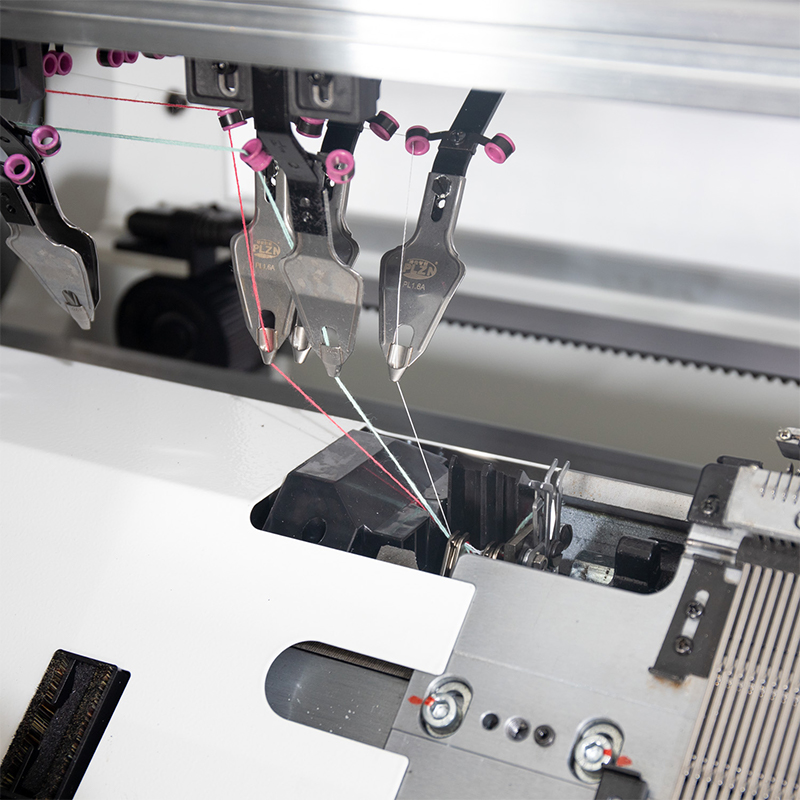

    The 16-carrier yarn system — mounted on both sides of 4 guide rails — allows yarn changes at any needle position, enabling smooth and flexible multi-color production. The programmable left-right scissor and clamp system can operate synchronously or independently, effectively minimizing yarn tail waste and reducing production costs.

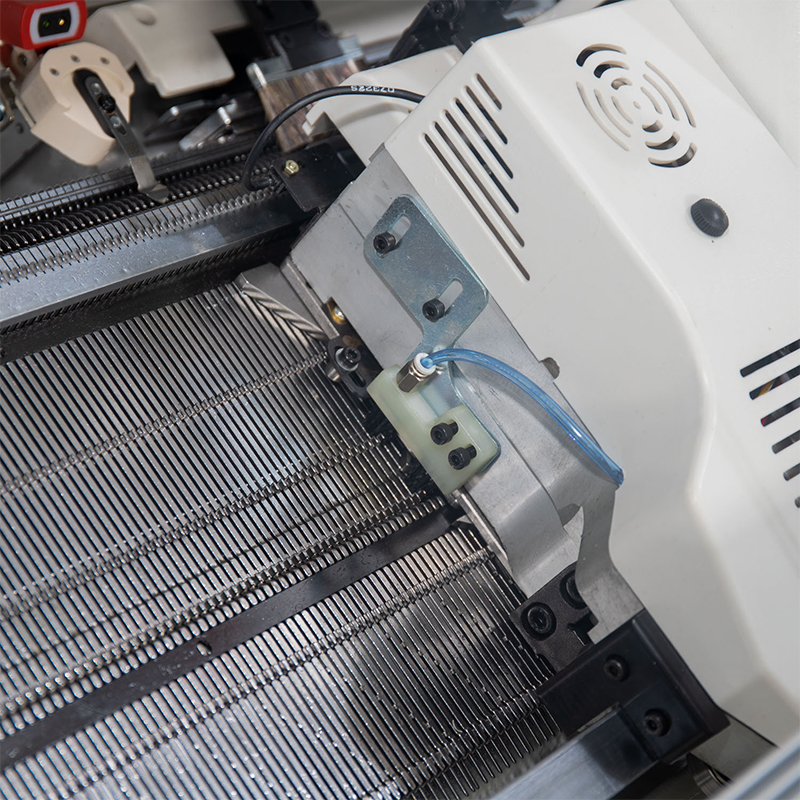

    ·Automatic Oil Supply & Sinker Assist System

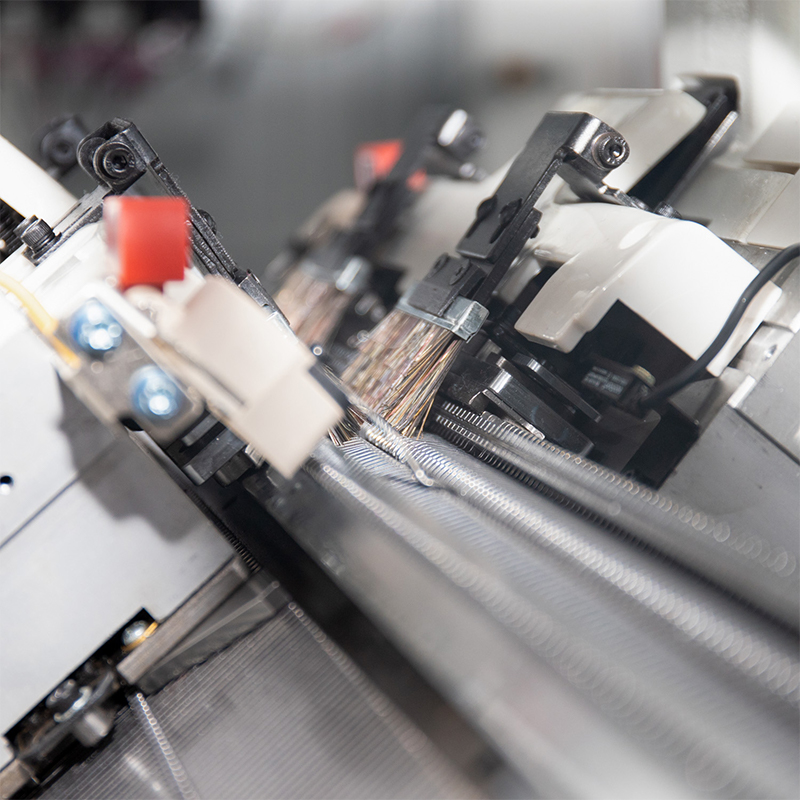

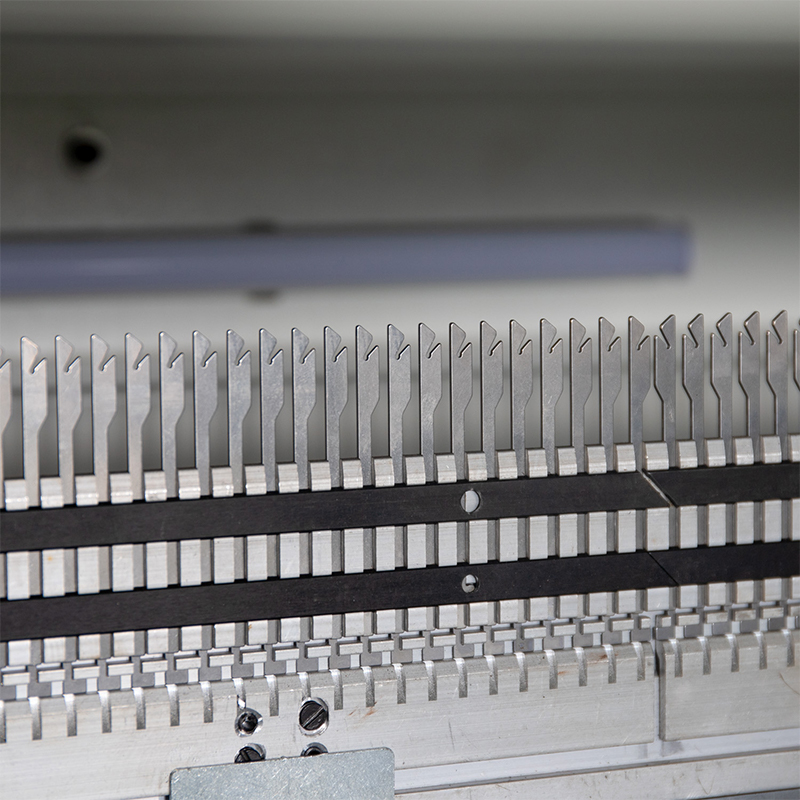

    An integrated automatic oil supply system continuously lubricates the knitting needles, reducing wear and extending the service life of critical components. The sinker system provides auxiliary knitting support, further enhancing fabric formation quality and consistency.
    ·Intelligent Control & Comprehensive Protection
    The control system features an LCD display with USB input and 256MB of internal memory for storing extensive design libraries. The interface supports multiple languages including Chinese and English, and all operating parameters can be monitored and adjusted in real time during machine operation. The protection system automatically alerts and halts the machine upon detecting yarn breakage, float yarn, rewinding faults, racking failure, needle collision, safety door events, or programming errors — ensuring both operator safety and equipment integrity. The machine runs on a standard 220V single-phase power supply with a built-in power-off memory function to safeguard work data against unexpected interruptions.

  • Model GS-S252C
    Gauge 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, 14G
    Knitting System Double System, Single Carriage
    Knitting Width 52 Inch,Choose 36、44、52、60、66、72、80 Inch
    Knitting Speed Max 1.5 m/s
    Knitting Function Transfer, tuck, miss, jacquard, intarsia, needle transfer.
    Stitch Density Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
    Racking Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Drive System Synchronous belt drive,  AC servo system.
    Needle Selection Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Yarn Carrier 16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
    Take Down Roller Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area:0-100.
    Protection System The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc.
    Control System 1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored.
    2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running.
    3. Design system is visual and easy to understand and upgrade
    4. Multi-language version, there are Chinese, English etc.
    Power 220V, single-phase, have memorizing function at the power-off moment.
