Three System Knee Pad Knitting Machine

GS-V336 36-inch Three-System Knee Knitting Machine

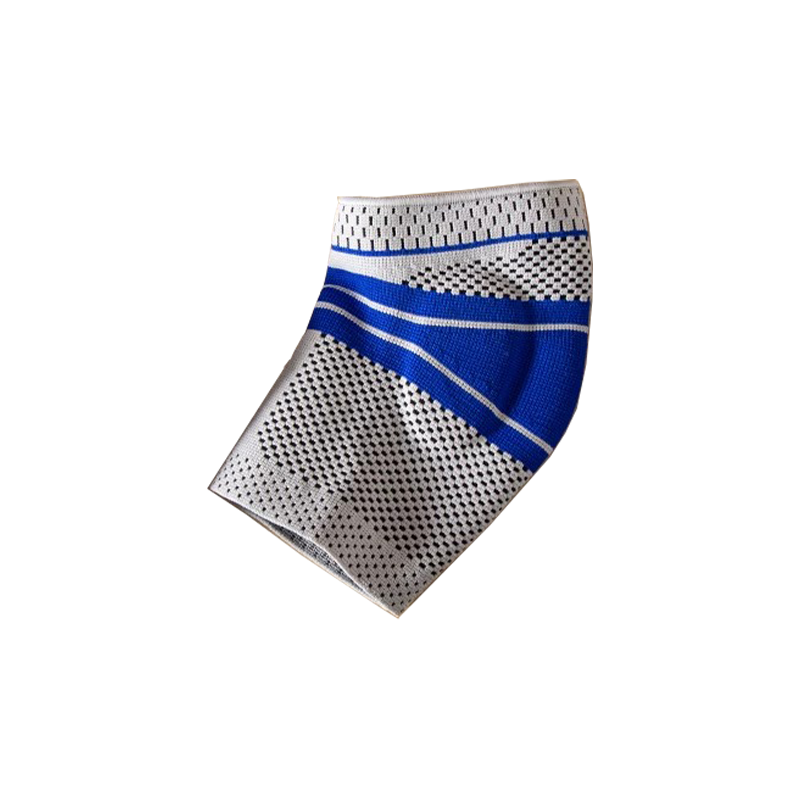

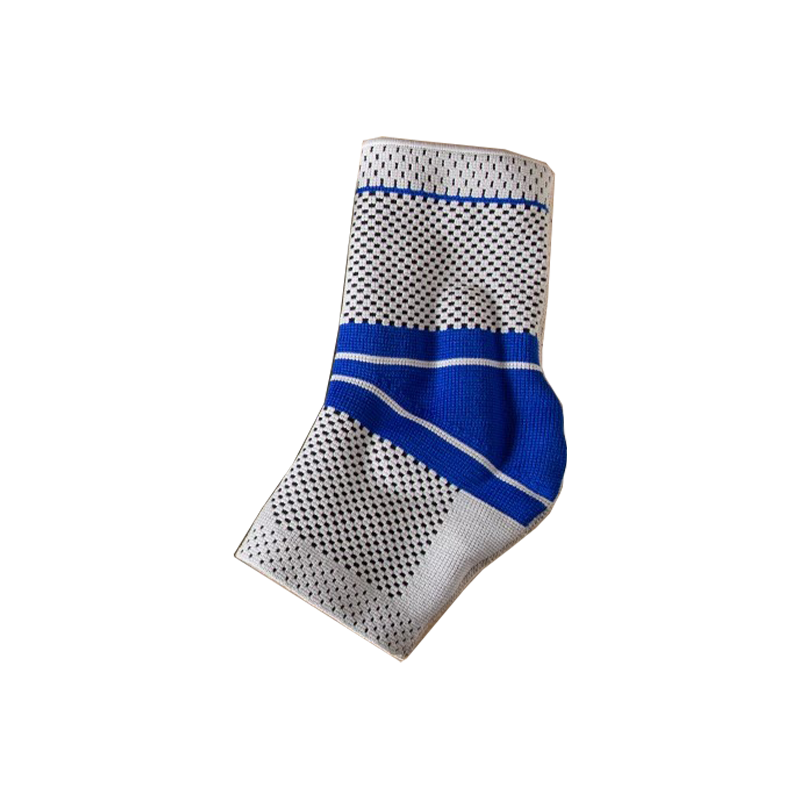

GS-V336 is a high-performance three-system computerized flat knitting machine purpose-built for the production of knee sleeves, elbow braces, sports protective gear, and tubular knitted products. With a standard knitting width of 36 inches — optionally expandable to 52 or 72 inches — and a three-system single carriage configuration, it delivers exceptional productivity and precision for the sportswear protection and medical textile industries.

Get A Quote

PREV：No previous article NEXT：No next article

Product Introduction
Machine parameters
video
Contact Us

·Professional Protective Gear Knitting with Advanced Weft Insertion
The GS-V336 features a proven weft-insertion capability, with a single yarn feeder supporting yarn capacities of up to approximately 8000D. This allows the machine to handle thick, highly elastic, and structurally supportive fabric requirements with ease. The compact 5.2-inch mini carriage design enables efficient production of most conventional knee sleeve, elbow pad, and similar tubular product types, combining precision with operational flexibility.
·Three Core Advantages for Superior Product Quality
The GS-V336 sets itself apart with three key technical advantages. First, a high-position take-up system significantly reduces waste yarn consumption, lowering raw material costs and improving overall production economics. Second, an adjustable tight tuck function enables denser, more uniform stitch structures that enhance the fabric's elasticity and body-conforming fit — critical performance attributes for protective gear products. Third, a multi-station sinker system greatly expands pattern variety, enabling manufacturers to differentiate their products through richer surface textures and design options alongside functional performance.
·Multiple Gauge Options for Versatile Production
Available in 12G, 14G, and 18G gauge configurations, the GS-V336 accommodates the full spectrum of protective fabric requirements — from thick, high-compression fabrics to lightweight, breathable constructions — maximizing equipment utilization across diverse product lines.
·High-Speed Performance with Precision Drive

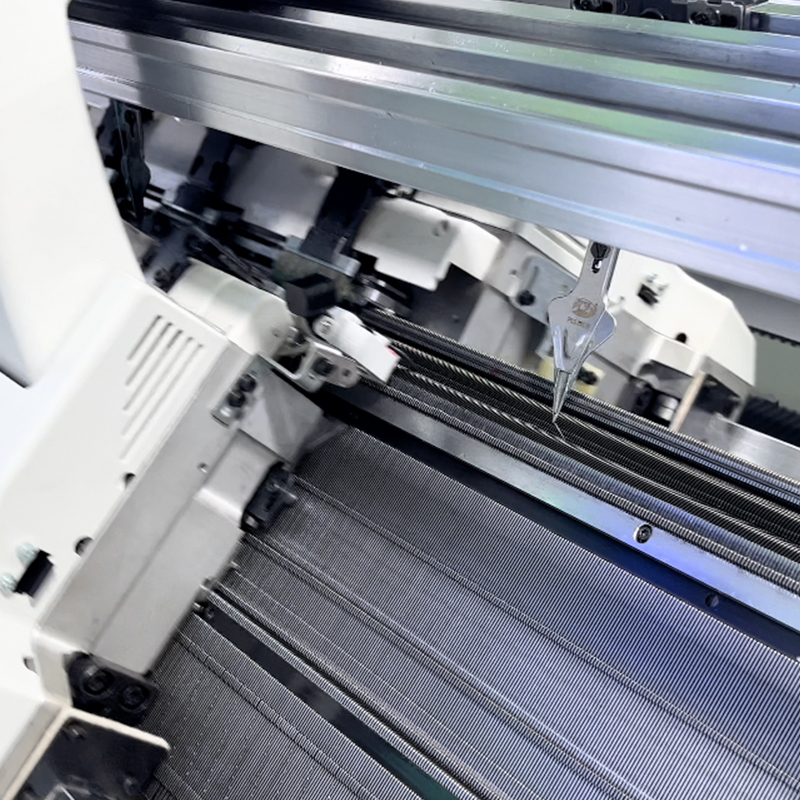

The machine reaches a maximum knitting speed of 1.5 m/s, supported by a synchronous belt drive and AC servo motor control system for smooth, stable, and responsive operation. The racking mechanism, driven by an AC servo motor, provides a range of up to 2 inches with fine-adjustment capability, ensuring accurate shaping for complex tubular and structured knit products.
·Rich Knitting Functions
Supporting tight tuck, transfer, tuck, miss, and jacquard techniques, the GS-V336 can produce protective gear with intricate functional structures and attractive surface patterns, satisfying brand clients' dual requirements for performance and aesthetics.
·Precise Stitch Density and Take-Down Control
Stitch density is controlled by a stepping motor with 128 (32) selectable levels and subdivision technology for a fine adjustment range of 0–650, ensuring outstanding batch-to-batch consistency. The take-down roller system, programmatically controlled by a stepping motor with 128 tension levels adjustable from 0 to 100, provides refined tension management tailored to different elastic yarn types, effectively preventing fabric distortion and uneven tension.
·Comprehensive Automatic Protection
The machine's built-in protection system monitors for yarn breaking, float yarn, rewinding, end-of-knitting, racking failure, needle breakage, safety door anomalies, and other operational irregularities. Upon detection, the system automatically alerts the operator and halts the machine, protecting both equipment and fabric while minimizing production losses and maintenance requirements.
·Smart Control System for Effortless Operation

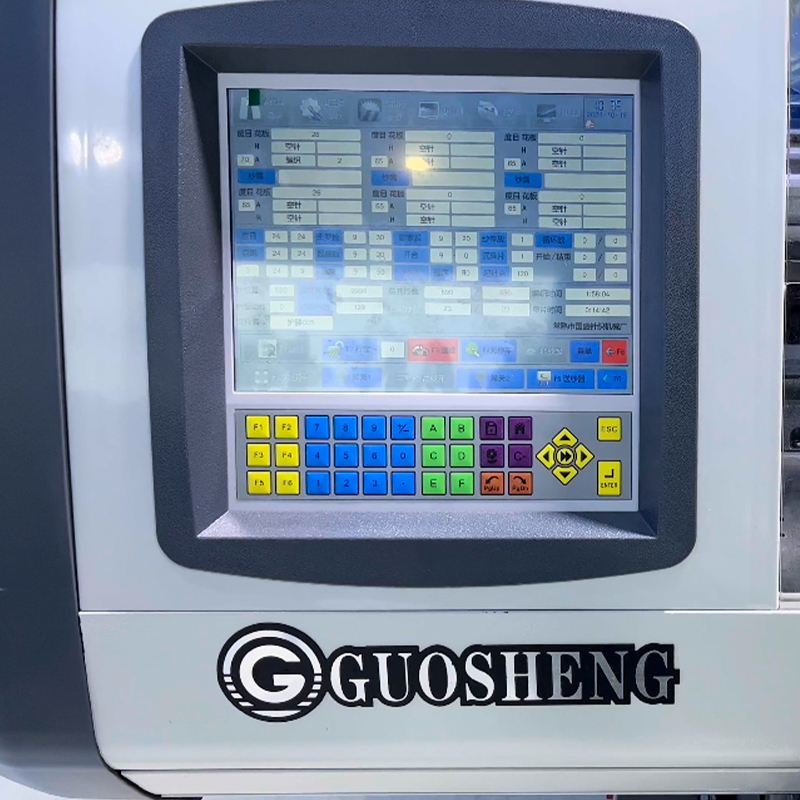

The GS-V336 features an intuitive LCD control panel with USB input and 256MB of onboard memory for storing extensive pattern file libraries, enabling fast style changeovers in multi-product production environments. All operating parameters can be monitored and adjusted in real time during machine operation. The design system is straightforward and user-friendly, with multilingual support including Chinese and English, making it well-suited for global manufacturing operations. Operating on single-phase 220V power, the machine also features a power-off memory function to prevent data loss during unexpected power interruptions.
With its specialized weft-insertion technology, three-system efficiency, three core process advantages, and comprehensive smart control architecture, the GS-V336 delivers a powerful, stable, and precise production solution for manufacturers of knee sleeves, elbow braces, and sports protective products — helping businesses enhance product quality, expand design possibilities, and strengthen their competitive position in the market.

Model	GS-K336
Gauge	12G、14G、18G
Knitting System	Three System, Single Carriage
Knitting Width	36 Inch, Choose 52、72 Inch
Knitting Speed	Max 1.5m/s
Knitting Function	Tight tuck, transfer, tuck, miss, jacquard.
Stitch Density	Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
Racking	Controlled by computer, electric magnet/motor needle choose system with high efficiency.
Drive System	Synchronous belt drive, AC servo system.
Needle Selection	Controlled by computer, electric magnet/motor needle choose system with high efficiency.
Yarn Carrier	16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area: 0-100.
Protection System	The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc.
Control System	1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored. 2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3. Design system is visual and easy to understand and upgrade. 4. Multi-language version, there are Chinese, English etc.



Power	220V, single-phase, have memorizing function at the power-off moment.
