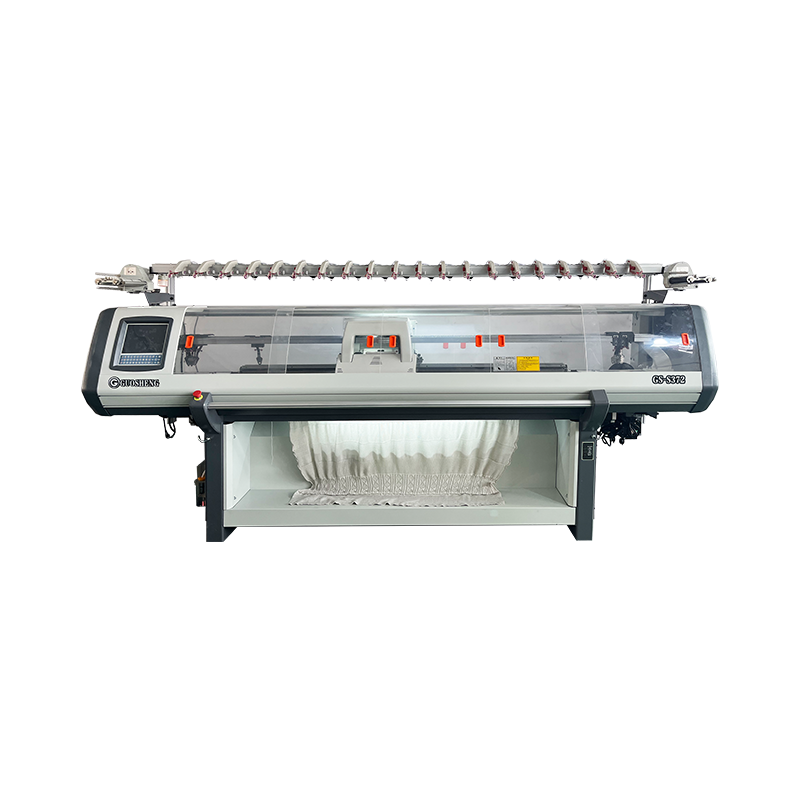

GS-S372 72-Inch Three System Sweater Knitting Machine

·Three-System Single Carriage — Efficiency Amplified at Wide Width
The three-system single carriage configuration of the GS-S372 ensures that more knitting actions are completed with every carriage pass. Powered by a superior servo drive assembly that enables rapid, stable carriage cornering, the machine achieves an overall knitting efficiency improvement of more than 10% over comparable double system machines. This advantage is particularly significant at 72-inch width: each carriage pass covers a greater distance, and the multi-action benefit of the three-system design is fully amplified, delivering substantially higher output per unit of time for wide-format, high-volume production runs.
·72-Inch Wide Knitting Width — Expanded Product Possibilities
With a standard knitting width of 72 inches — and optional configurations of 36, 44, 52, 60, 66, 72, and 80 inches — the GS-S372 offers one of the broadest width ranges in its class. The 72-inch bed opens up product categories beyond the reach of standard 52-inch machines, enabling efficient production of oversized garments, wide scarves, blankets, home textile knits, and specialty industrial knitted materials. At a maximum speed of 1.5 m/s, the machine maintains strong output performance even across the full width of the knitting bed, making it a compelling choice for factories looking to diversify their product portfolio.
·Broad Gauge Coverage for Diverse Applications
Ten gauge options are available — 3-5-7G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, and 16G — spanning coarse heavyweight knitwear through to fine 16G high-count fabrics. This breadth of gauge coverage allows a single machine to serve multiple product categories, from thick winter sweaters and mid-weight casualwear to lightweight spring-summer knits and fine-gauge functional textiles, maximizing the return on equipment investment.
·5.2-Inch Fully Motorized Cam
The machine is fitted with a 5.2-inch fully motorized cam system, combining a compact carriage form factor with agile, high-speed rotation. Its variable stitch density function enables real-time adjustment of stitch length across different fabric structures, supporting richer and more diverse pattern expression. The fully motorized design maintains exceptional stability and reliability under the demanding conditions of wide-width high-speed operation, minimizing production interruptions caused by mechanical adjustments.
·Comprehensive Knitting Functions
Supporting transfer, tuck, miss, jacquard, intarsia, and needle transfer, the GS-S372 handles the full range of professional flat knitting techniques. Combined with its 72-inch width advantage, the machine is particularly well-suited for producing oversized jacquard sweaters, wide-format intarsia products, and large-dimension fully fashioned knitted goods — product categories that standard-width machines simply cannot accommodate at the same level of efficiency.
·Precision Stitch Density & Take-Down Control
Stitch density is controlled by a stepping motor with 128 (32) selectable levels and an adjustable range of 0–650 via subdivision technology, ensuring consistent fabric uniformity even across the full 72-inch width in sustained high-volume production. The take-down roller system provides 128 levels of tension control across a range of 0–100, precisely adapting to yarns of different weights and elasticity — critical for maintaining even tension across wide fabric panels and preventing edge curl or dimensional distortion.
·16-Carrier Yarn System & Scissor-Clamp Assembly
The 16-carrier yarn system — distributed across both sides of 4 guide rails — allows yarn changes at any needle position, providing maximum flexibility for multi-color jacquard and intarsia production across the full knitting width. The programmable left-right scissor and clamp system can operate synchronously or independently, effectively minimizing yarn waste during color changes. In wide-width, high-volume production, the material savings generated by this system are particularly meaningful at scale.
·Automatic Oil Supply System
The integrated automatic oil supply system provides continuous lubrication to the knitting needles and drive components, reducing wear, extending service life, and lowering maintenance frequency. This feature is especially important during long, intensive wide-width production shifts, ensuring the machine operates reliably around the clock without unscheduled downtime caused by insufficient lubrication.
·Intelligent Control & Comprehensive Protection
The control system features an LCD display with USB input and 256MB of onboard memory for storing extensive design file libraries. The multi-language interface supports Chinese, English, and other languages, with all operating parameters displayable and adjustable in real time during machine operation. The protection system automatically alerts and halts the machine upon detecting yarn breakage, float yarn, rewinding faults, racking failure, needle collision, safety door events, or programming errors — providing comprehensive protection for both equipment and operator. The machine runs on a standard 220V single-phase power supply with a power-off memory function to safeguard production data against unexpected interruptions. is the wide-width flagship model in GUOSHENG MACHINERY's Three System Full Function S series, purpose-engineered for manufacturers who require both exceptional knitting width and maximum production throughput. Expanding the standard knitting bed to 72 inches while retaining the full capabilities of the three-system platform, the GS-S372 combines superior servo-driven high-speed carriage rotation — improving knitting efficiency by more than 10% — with a 5.2-inch fully motorized cam and an automatic oil supply system. The result is a machine that delivers outstanding performance, stability, and pattern versatility across the most demanding wide-format knitwear production environments.
·Three-System Single Carriage — Efficiency Amplified at Wide Width
The three-system single carriage configuration of the GS-S372 ensures that more knitting actions are completed with every carriage pass. Powered by a superior servo drive assembly that enables rapid, stable carriage cornering, the machine achieves an overall knitting efficiency improvement of more than 10% over comparable double system machines. This advantage is particularly significant at 72-inch width: each carriage pass covers a greater distance, and the multi-action benefit of the three-system design is fully amplified, delivering substantially higher output per unit of time for wide-format, high-volume production runs.
·72-Inch Wide Knitting Width — Expanded Product Possibilities
With a standard knitting width of 72 inches — and optional configurations of 36, 44, 52, 60, 66, 72, and 80 inches — the GS-S372 offers one of the broadest width ranges in its class. The 72-inch bed opens up product categories beyond the reach of standard 52-inch machines, enabling efficient production of oversized garments, wide scarves, blankets, home textile knits, and specialty industrial knitted materials. At a maximum speed of 1.5 m/s, the machine maintains strong output performance even across the full width of the knitting bed, making it a compelling choice for factories looking to diversify their product portfolio.
