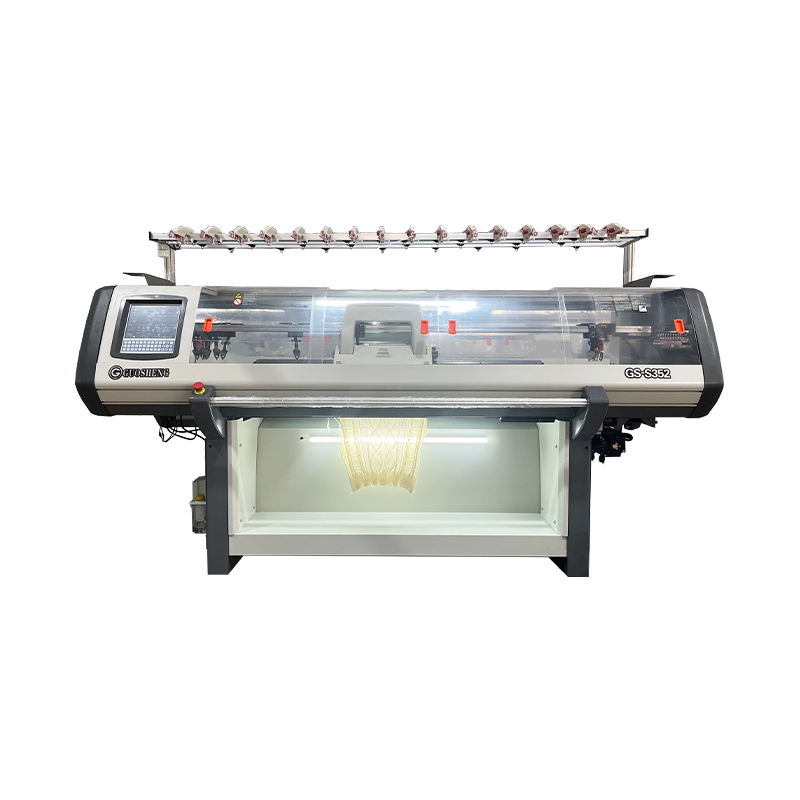

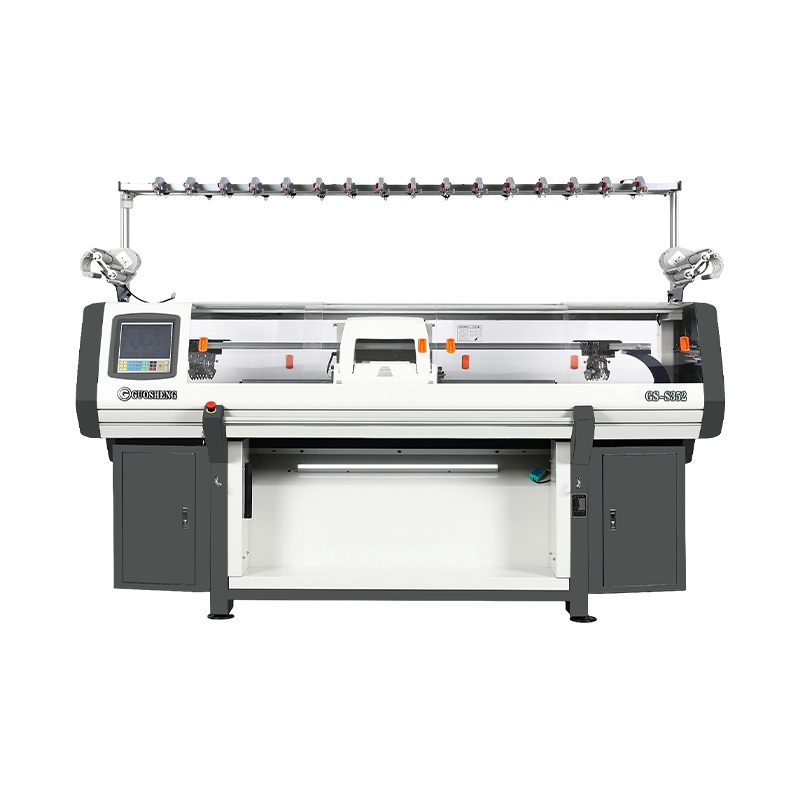

GS-S352 52-Inch Three System Sweater Knitting Machine

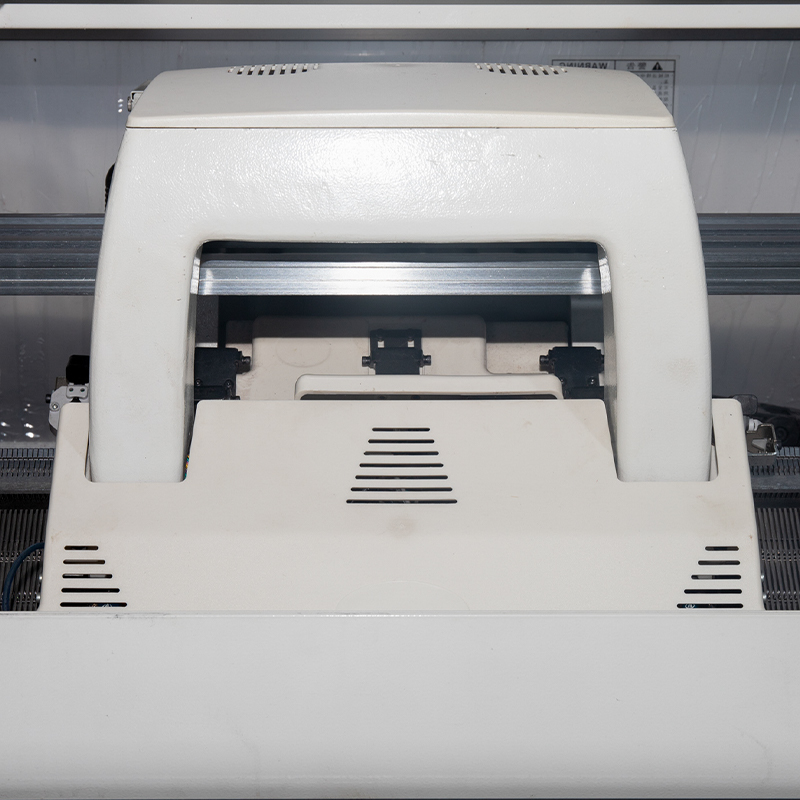

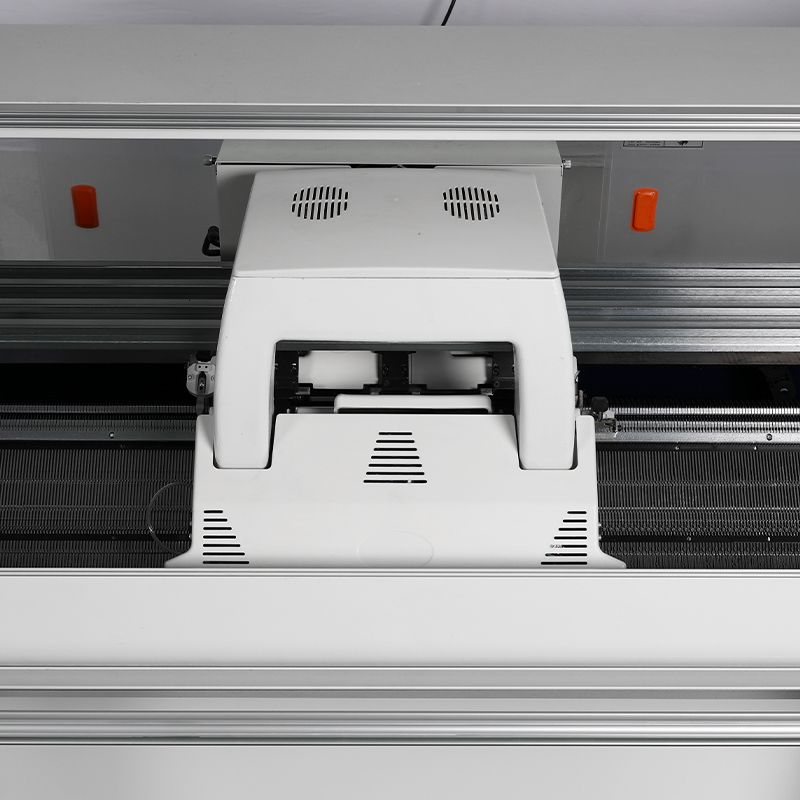

·Three-System Single Carriage — A Fundamental Efficiency Leap
The defining advantage of the GS-S352 is its three-system single carriage configuration. Compared to double system machines, the three-system design allows the carriage to complete significantly more knitting actions per pass. Combined with the superior servo drive assembly that enables rapid carriage rotation, the machine delivers a verified efficiency improvement of over 10% in overall knitting throughput. In large-scale production environments, this translates directly into shorter lead times, higher capacity utilization, and a stronger competitive position for knitwear manufacturers handling high-volume orders.
·Gauge Range & Width Configuration
The GS-S352 offers 10 gauge options — 3-5-7G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, and 16G — extending coverage to 16G for the production of fine-gauge, high-count knitwear. The standard 52-inch knitting width is complemented by optional widths of 36, 44, 60, 66, 72, and 80 inches, providing the flexibility to accommodate everything from specialty narrow-width products to wide-format bulk production. At a maximum speed of 1.5 m/s, the three-system configuration delivers substantially greater actual output per unit of time compared to a double system machine running at the same speed.
·5.2-Inch Fully Motorized Cam
The machine is equipped with a 5.2-inch fully motorized cam system, combining a compact carriage profile with agile rotation capability. Its variable stitch density function enables real-time adjustment of stitch length across different fabric structures, enriching pattern diversity and design expression. The fully motorized architecture ensures stable, reliable performance across extended production runs while minimizing downtime caused by mechanical adjustments.
·Comprehensive Knitting Functions
Supporting transfer, tuck, miss, jacquard, intarsia, and needle transfer, the GS-S352 handles the full spectrum of professional flat knitting techniques. From fundamental fabric structures to complex three-dimensional patterns, multi-color jacquards, intarsia colorwork, and fully fashioned shaped garments, this machine delivers consistent, high-quality results across all product categories.
·Precision Stitch Density Control
Stitch density is controlled by a stepping motor with 128 (32) selectable levels and an adjustable range of 0–650 via subdivision technology. This level of precision ensures exceptional fabric uniformity across high-volume production runs, keeping defect rates to an absolute minimum even through long shifts and complex pattern sequences.
·16-Carrier Yarn System & Scissor-Clamp Assembly
The 16-carrier yarn system — distributed across both sides of 4 guide rails — allows yarn changes at any needle position, providing full flexibility for multi-color jacquard and intarsia production. The programmable left-right scissor and clamp system can operate synchronously or independently via program instruction, effectively minimizing yarn waste during color changes and reducing overall material costs.

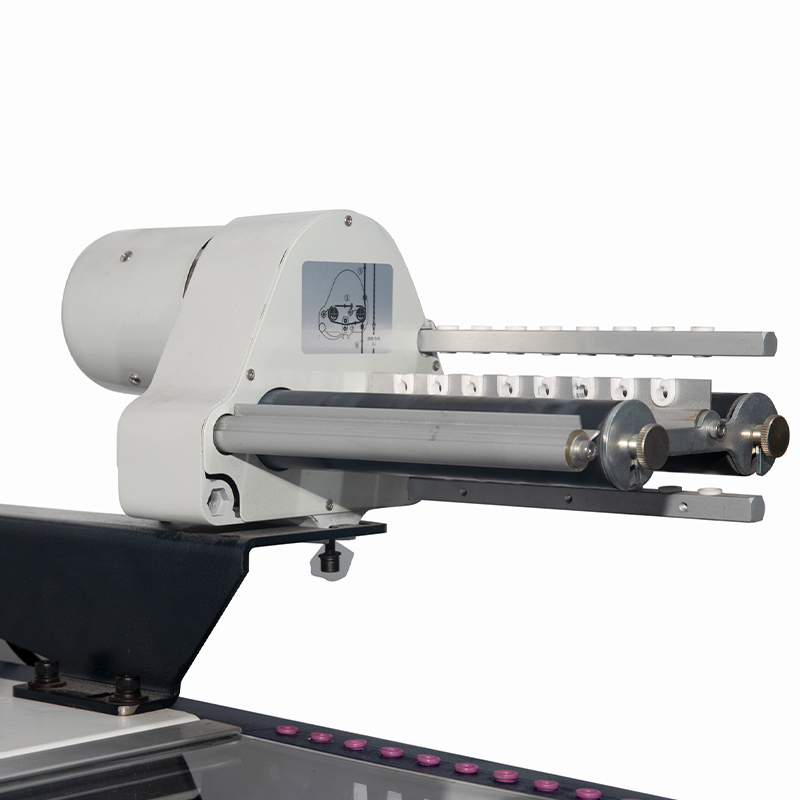

·Take-Down Roller & Racking System
The take-down roller system provides 128 levels of tension control across an adjustable range of 0–100, driven by stepping motor for precise, consistent fabric pull-down regardless of yarn weight or elasticity. The racking system, controlled by AC servo motor, offers a movement range of up to 2 inches with fine-adjustment capability, supporting a wide range of stitch transfer and shaping operations.

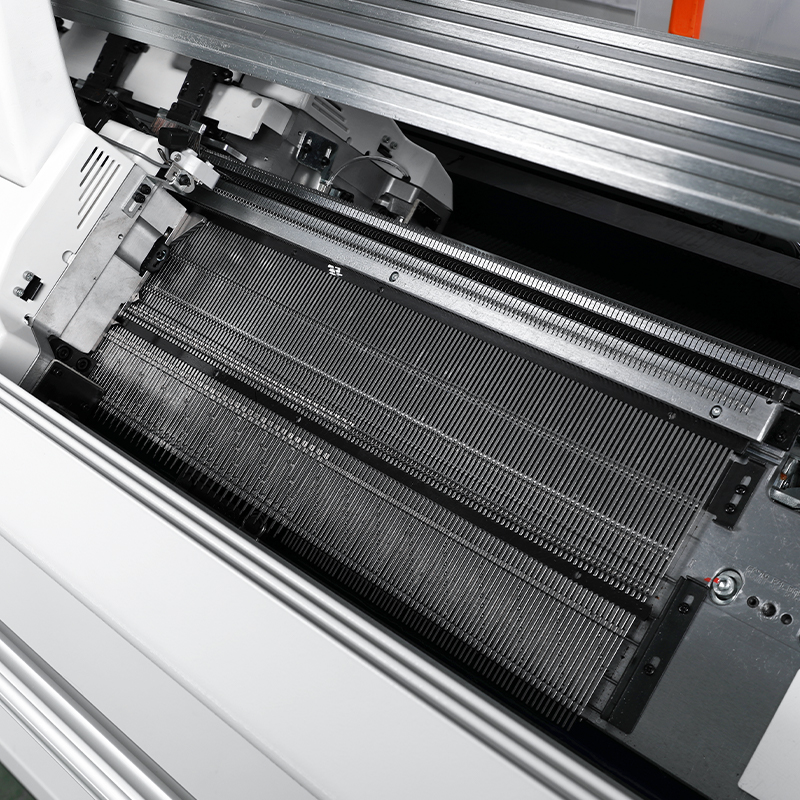

·Automatic Oil Supply & Sinker Assist System
The integrated automatic oil supply system continuously lubricates the knitting needles, reducing component wear, extending service life, and lowering maintenance frequency. The sinker assist system works in concert with the knitting action to improve fabric formation quality, ensuring consistent surface evenness and structural integrity across all fabric types.
·Intelligent Control & Comprehensive Protection
The control system features an LCD display with USB input and 256MB of onboard memory capable of storing large libraries of design files. The interface supports Chinese, English, and other languages, with all operating parameters displayed and adjustable in real time during machine operation. The protection system automatically alerts and halts the machine upon detecting yarn breakage, float yarn, rewinding faults, racking failure, needle collision, safety door events, or programming errors — providing comprehensive protection for both the equipment and the operator. The machine runs on a standard 220V single-phase power supply with a power-off memory function to safeguard production data and workflow state against unexpected interruptions.
