Double System Blanket Knitting Machine (Full-Function B)

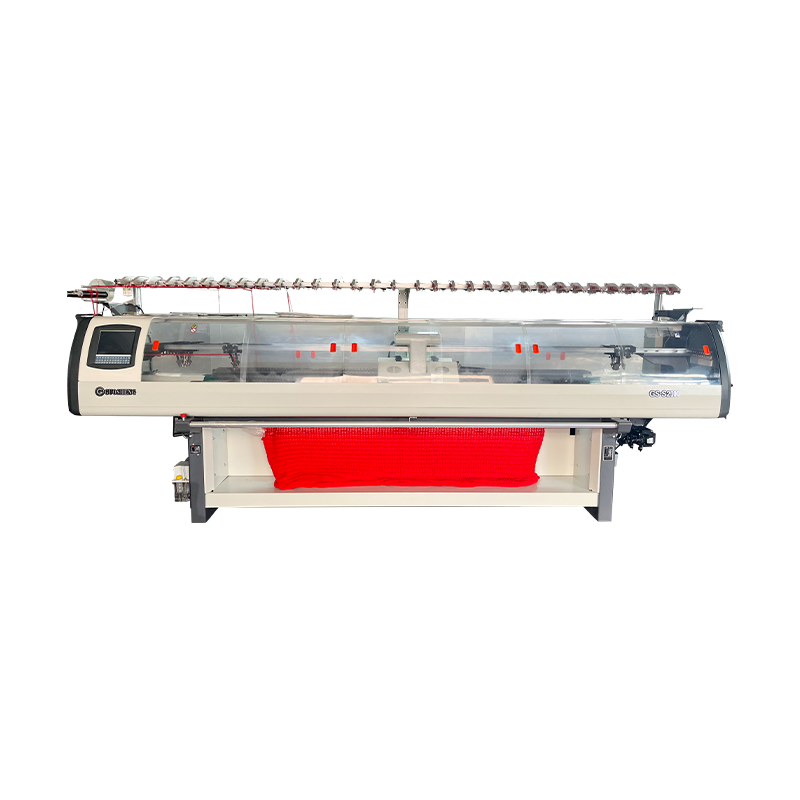

GS-S2100 100-Inch Double System Blanket Knitting Machine

GS-S2100 100-Inch Double System Blanket Knitting Machine

GS-S2100 is a premium fully computerized flat knitting machine purpose-built for blanket and wide-fabric production. With a 100-inch knitting width and a double system single carriage configuration, it strikes an ideal balance between production efficiency, operational flexibility, and precision control — making it a top choice for mid-to-high-end blanket manufacturers.

Get A Quote

PREV：No previous article NEXT：Blanket Knitting Machine-B2100、B2100(2.5G)

Product Introduction
Machine parameters
video
Contact Us

·Extensive Gauge Options for Diverse Product Lines
The GS-S2100 is available in 13 gauge specifications — 3G, 3.5G, 3-5-7G, 5G, 6G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, and 15G — covering everything from heavy chunky blankets to fine-gauge delicate textiles, giving manufacturers the flexibility to serve a wide range of market segments with a single machine platform.
·High-Speed Performance with Precision Drive
With a maximum knitting speed of 1.4 m/s, the machine delivers high throughput for large-scale production. The synchronous belt drive system paired with an AC servo motor ensures smooth, low-noise operation with rapid response and consistent motion control. The racking mechanism, also driven by an AC servo motor, provides a range of up to 2 inches with fine-adjustment capability, guaranteeing precise pattern alignment for complex fabric structures.
·Versatile Knitting Functions for Creative Design
The GS-S2100 supports a rich set of knitting techniques including transfer, tuck, miss, jacquard, intarsia, and both visible and hidden shaping. The inclusion of intarsia and shaping functions enables the production of blankets with sharp color separation, three-dimensional structure, and refined detailing — meeting the high standards of premium and fashion-oriented markets.
·Precise Stitch Density Control
Stitch density is regulated by a stepping motor system offering 128 selectable levels. Supported by subdivision technology, the adjustment range spans 0 to 650, enabling fine-tuned control over fabric weight and texture. This ensures outstanding consistency across production batches and significantly reduces defect rates.
·High-Precision Take-Down Roller System
The take-down roller system is programmatically controlled via stepping motor and features an industry-leading 128 tension levels with an adjustable range of 0–100. This finer tension control — compared to standard configurations — allows operators to tailor fabric tension precisely to different yarn types and knit structures, effectively preventing distortion, puckering, or uneven tension across the full 100-inch width.
·Dedicated Sinker System
A key differentiator of the GS-S2100 is its independent sinker system, controlled by a dedicated stepping motor. Freely adjustable to suit different fabric characteristics, the sinker system assists in stitch formation during knitting, enhancing fabric surface quality and overall knitting stability — a critical advantage for achieving consistently high-quality blanket output.

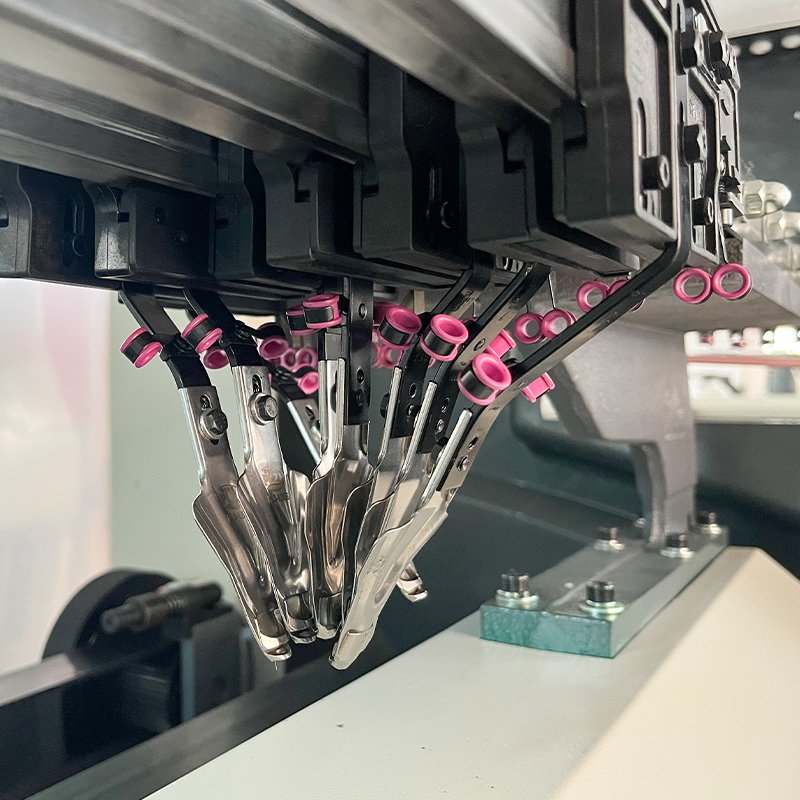

·Flexible Yarn Carrier System for Multi-Color Designs
The 2×8 yarn carrier configuration, distributed across 4 guide rails on both sides of the needle bed, allows yarn changes at any needle position. This setup provides ample color flexibility for producing multi-color jacquard and intarsia blankets with intricate pattern designs.
·Comprehensive Automatic Protection
The machine's built-in protection system continuously monitors for anomalies including yarn breaking, float yarn, rewinding, end-of-knitting, racking failure, needle breakage, and programming errors. Upon detection, the machine automatically triggers an alarm and halts operation, protecting both equipment and fabric while minimizing production loss and maintenance costs.
·Smart Control System for Effortless Operation
The GS-S2100 features an intuitive LCD control panel with USB connectivity and 256MB of onboard memory for storing a large library of pattern files, facilitating quick style changeovers. All operating parameters are viewable and adjustable in real time during machine operation. The design system is straightforward and easy to learn, with multilingual support including Chinese and English for seamless integration into global production environments. Running on single-phase 220V power, the machine also features a power-off memory function to safeguard pattern and operational data against unexpected power interruptions.
With its wide-width double system design, diverse knitting capabilities, high-precision control architecture, and exclusive sinker system, the GS-S2100 delivers an efficient, stable, and versatile production solution for blanket manufacturers seeking to elevate product quality, expand design possibilities, and strengthen market competitiveness.

Model	GS-S2100
Gauge	3G,3.5G,3-5-7G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G
Knitting System	Double System, Single Carriage
Knitting Width	100 Inch
Knitting Speed	MAX.1.4m/s
Knitting Function	Transfer, Tuck, Miss, Jacquard, Intarsia， Hide or Apparent Shaping
Stitch Density	Stitch system controlled by stepping motor, 128 section stitch selectable, adjustable scope supported by subdivision technology: 0-650.
Racking	Controlled by ac servo motor, racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive, AC servo system.
Needle Selection	Controlled by computer, electric magnet needle choose system with high efficiency.
Yarn Carrier	2x8yarn carriers on each side of 4 guide rails, shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area: 0-100.
Sinker System	Assist knitting, have various results of shaping and stop.
Protection System	The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, fail of racking, needle breakage and error programming occur ect.
Control System	1. Adopt LCD screen, input device: USB, system memory 256mb, a great amount of design files can be stored. 2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3. Design system is visual and easy to understand and upgrade. 4. Multi-language version, there are Chinese, English, etc.
Power	220V, single-phase, have memorizing function at the power-off moment.
