GS-M2100 3G 100-Inch Double System Metal Mesh Knitting Machine

·Four Core Advantages Engineered for Special-Material Knitting
The GS-M2100 is purpose-optimized for the unique mechanical demands of knitting metal wire and specialty yarns, built around four key technical advantages:
First, a fully motorized cam system provides stable, reliable, and highly precise operation, engineered to withstand the high mechanical stress imposed by rigid materials such as metal wire, ensuring long-term consistent performance without degradation.
Second, an automatic oil supply system delivers continuous targeted lubrication to the knitting needles throughout operation. This significantly reduces needle wear caused by the hardness of metal wire, extending machine service life and substantially lowering maintenance costs — a critical benefit in demanding industrial knitting environments.

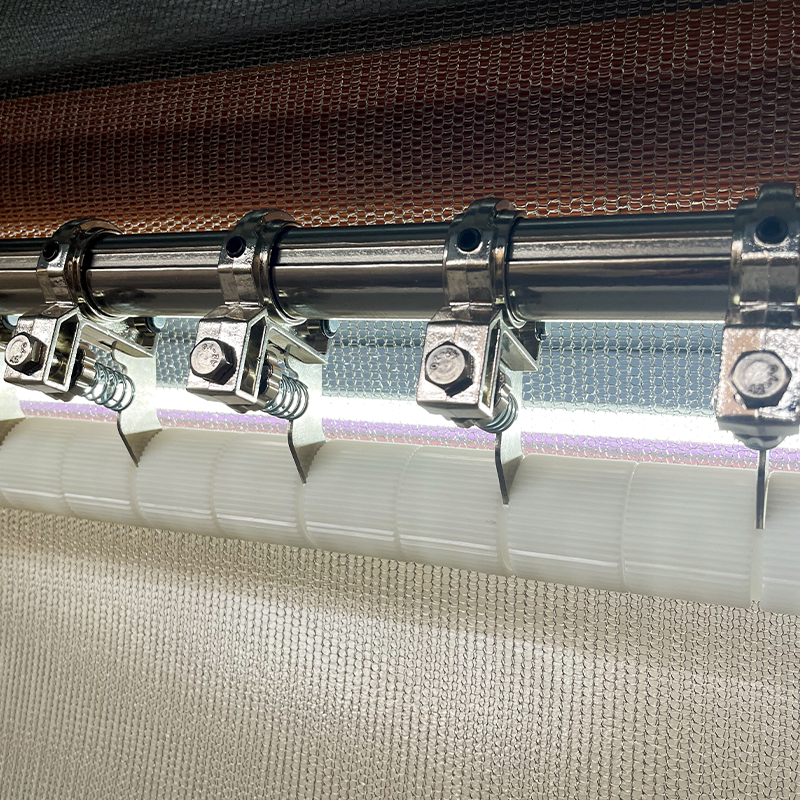

Third, a specialized yarn feeding system, custom-designed for metal wire feeding characteristics, ensures smooth and stable yarn delivery throughout the knitting cycle. Combined with a purpose-built traction and take-down device that maintains consistent fabric tension from yarn feeding through cloth formation, the system minimizes production anomalies such as yarn breakage and dropped stitches, reliably safeguarding fabric quality end to end.
Fourth, a variable stitch density function enables flexible adjustment of mesh aperture sizes across a wide range, accommodating diverse specifications for different industrial applications — from large-opening protective meshes to fine-aperture filtration fabrics — greatly expanding the machine's product coverage and market versatility.
·Multiple Gauge Options for Broad Application Compatibility
Available in 3G, 3-5-7G, and 14G gauge configurations, the GS-M2100 can be adapted to different wire diameters, mesh densities, and fabric thicknesses, covering a spectrum from coarse industrial protective netting to precision filtration mesh within a single equipment platform.
·Stable and Efficient Drive System
The machine operates at a maximum knitting speed of 0.6 m/s — calibrated to balance the rigidity of metal wire materials with the precision required for consistent mesh formation. The synchronous belt drive paired with an AC servo motor system ensures smooth, low-vibration operation with accurate motion control. The racking mechanism, driven by an AC servo motor, provides a range of up to 2 inches with fine-adjustment capability, supporting the accurate shaping of complex mesh structures.
·Versatile Knitting Functions
Supporting transfer, tuck, miss, jacquard, intarsia, and both visible and hidden shaping, the GS-M2100 enables structural variation and pattern design beyond standard mesh configurations, expanding the functional and aesthetic application possibilities for industrial fabric products.
·Precise Stitch Density and Take-Down Control
Stitch density is managed by a stepping motor with 128 (32) selectable levels and subdivision technology for a fine adjustment range of 0–650, ensuring consistent mesh aperture uniformity and dimensional accuracy across production batches. The take-down roller system, programmatically controlled by a stepping motor with 128 tension levels adjustable from 0 to 100, provides refined tension management tailored to the unique requirements of metal mesh fabrics, effectively preventing fabric distortion.
·Comprehensive Automatic Protection
The built-in protection system continuously monitors for yarn breaking, float yarn, rewinding, end-of-knitting, racking failure, needle breakage, safety door anomalies, and other operational irregularities. Upon detection, the system automatically triggers an alarm and halts the machine, protecting equipment and materials while minimizing production loss.
·Smart Control System for Effortless Operation
The GS-M2100 is equipped with an intuitive LCD control panel, USB input, and 256MB of onboard memory for storing large libraries of pattern files, facilitating efficient multi-specification production. All operating parameters can be monitored and adjusted in real time during machine operation. The design system is straightforward and user-friendly, with multilingual support including Chinese and English for seamless global operation. Running on single-phase 220V power, the machine features a power-off memory function to protect operational data against unexpected power interruptions.
With its four core process advantages optimized for specialty-material knitting, wide-format double-system efficiency, and comprehensive smart control architecture, the GS-M2100 delivers a stable, precise, and productive manufacturing solution for producers of metal mesh, industrial filtration fabrics, and protective netting — empowering businesses to meet the most demanding standards of industrial textile quality and performance.
