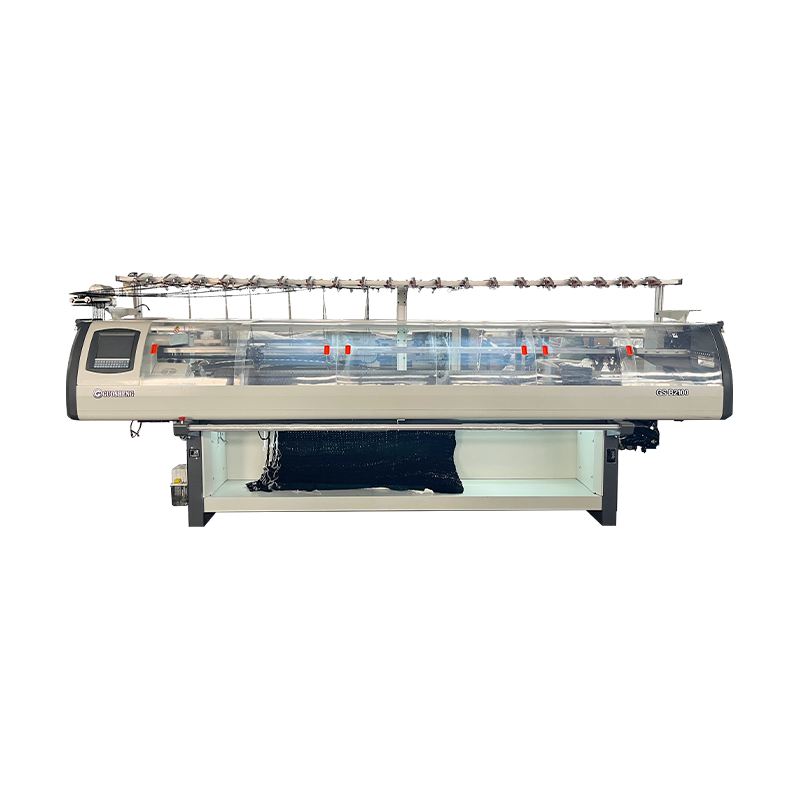

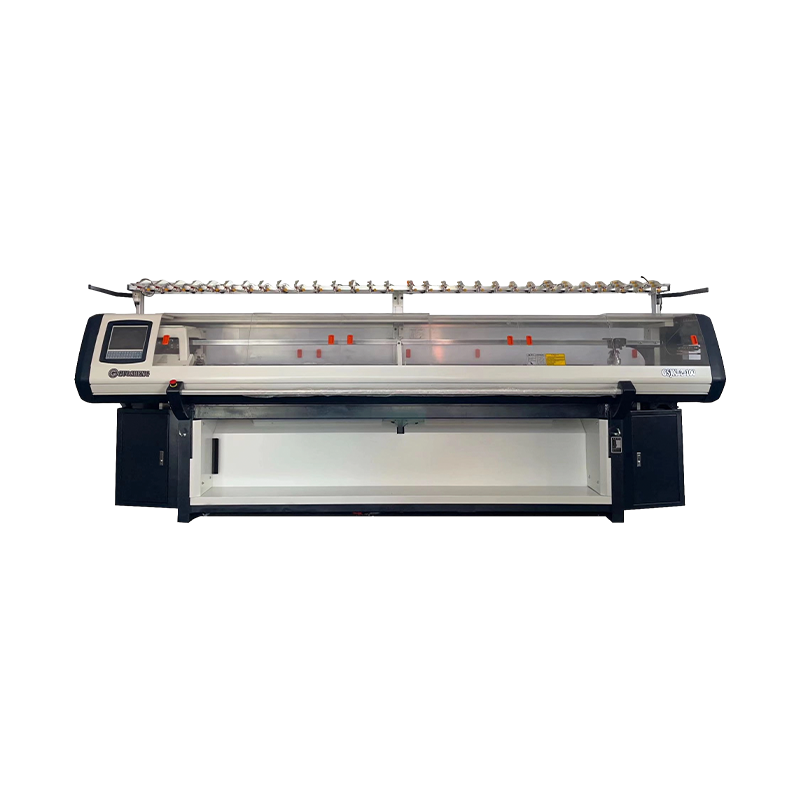

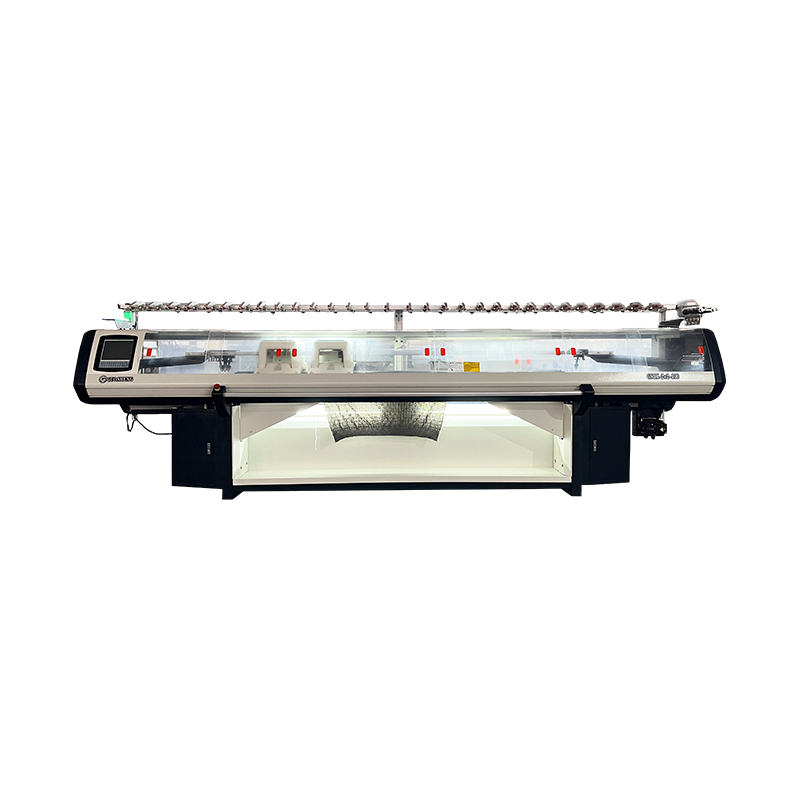

GS-B2100 is a high-performance, fully computerized flat knitting machine engineered specifically for blanket production. Featuring a 100-inch knitting width and a 2+2 double system with dual carriages, it delivers outstanding productivity and versatility for large-scale blanket and wide-fabric manufacturing.
Get A Quote
PREV：GS-S2100 100-Inch Double System Blanket Knitting MachineNEXT：GS-B480H 80-Inch Double System Blanket Knitting Machine
  • Product Introduction
  • Machine parameters
  • video
  • Contact Us

  • ·Wide Gauge Range for Diverse Applications
    The GS-B2100 is available in multiple gauge options — 3G, 3.5G, 3-5-7G, 5G, 7G, 8G, 9G, 10G, 12G, 13G, and 14G — allowing manufacturers to accommodate a broad spectrum of yarn weights, fabric textures, and customer specifications with a single machine platform.
    ·High-Speed, Stable Knitting Performance
    With a maximum knitting speed of 1.4 m/s, the machine delivers impressive throughput without compromising fabric quality. The synchronous belt drive combined with an AC servo motor control system ensures smooth, low-vibration operation with precise motion control. The racking mechanism, also driven by an AC servo motor, provides a racking range of up to 2 inches with fine-adjustment capability for accurate pattern alignment.
    ·Versatile Knitting Functions
    Supporting tight tuck, transfer, tuck, miss, and jacquard knitting techniques, the GS-B2100 is capable of producing blankets with intricate textures and multi-layer patterns, meeting the demanding aesthetic and tactile standards of premium markets.
    ·Precise Stitch Density & Take-Down Control
    Stitch density is managed by a stepping motor with 128 selectable levels and subdivision technology for a fine adjustment range of 0–650, ensuring consistent fabric quality across production batches. The take-down roller system, also stepping-motor controlled with 32 tension levels (adjustable from 0–100), prevents fabric distortion and maintains uniform tension throughout the knitting process.

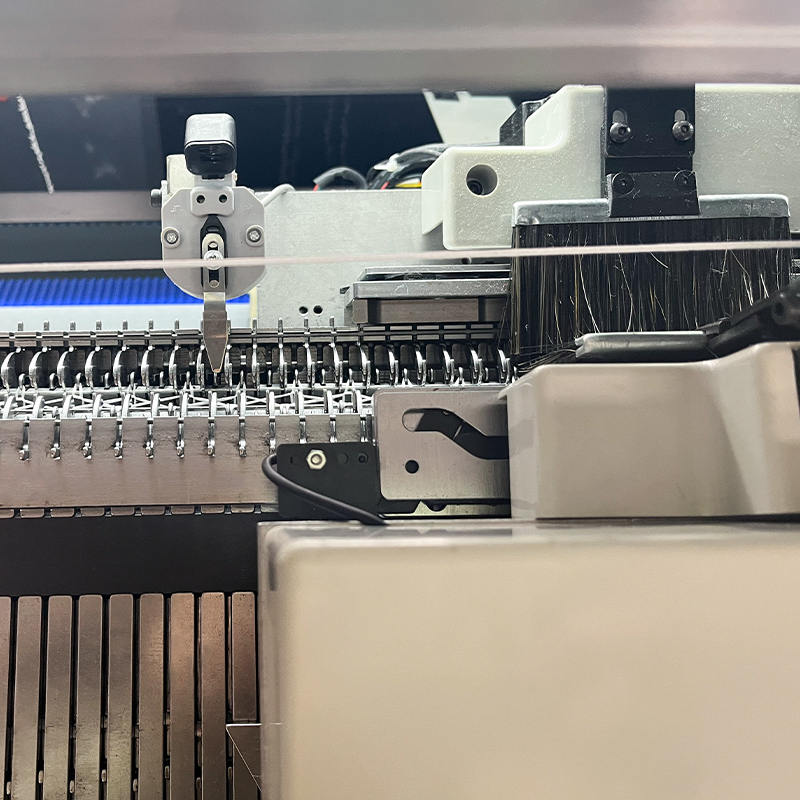

    ·Intelligent Yarn Carrier & Needle Selection

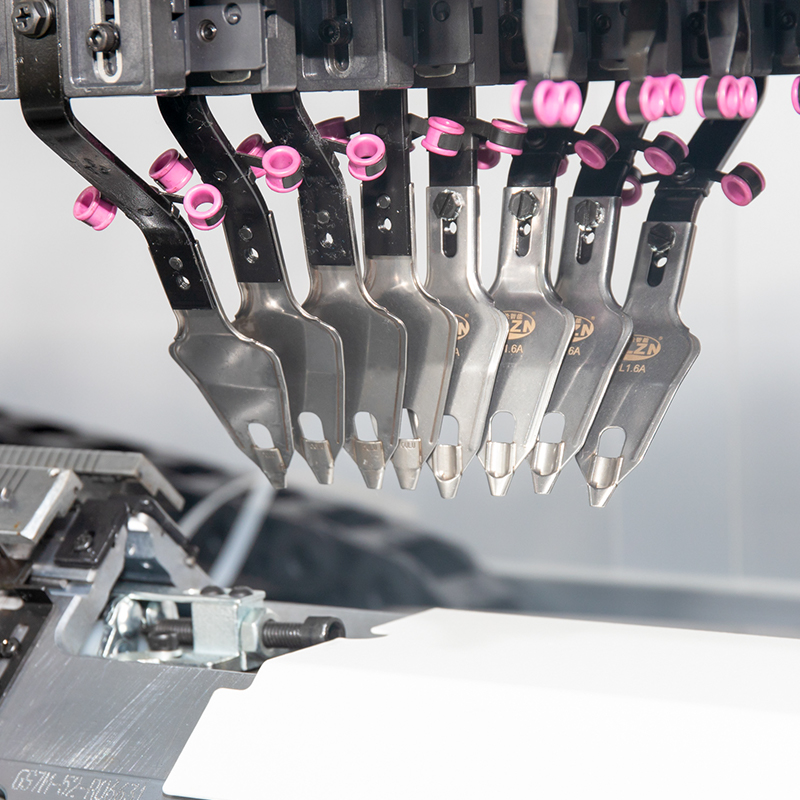

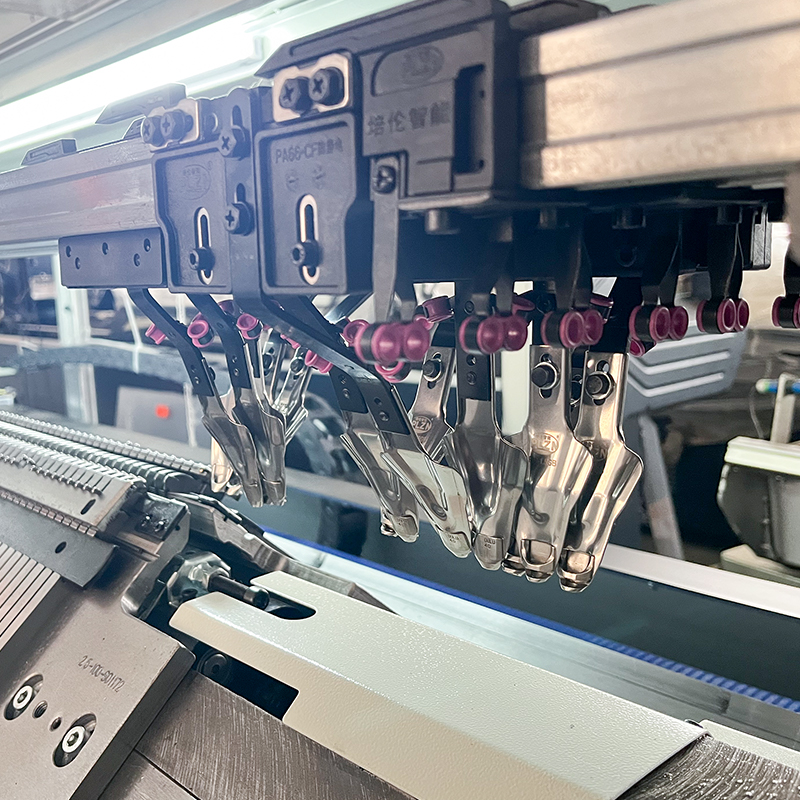

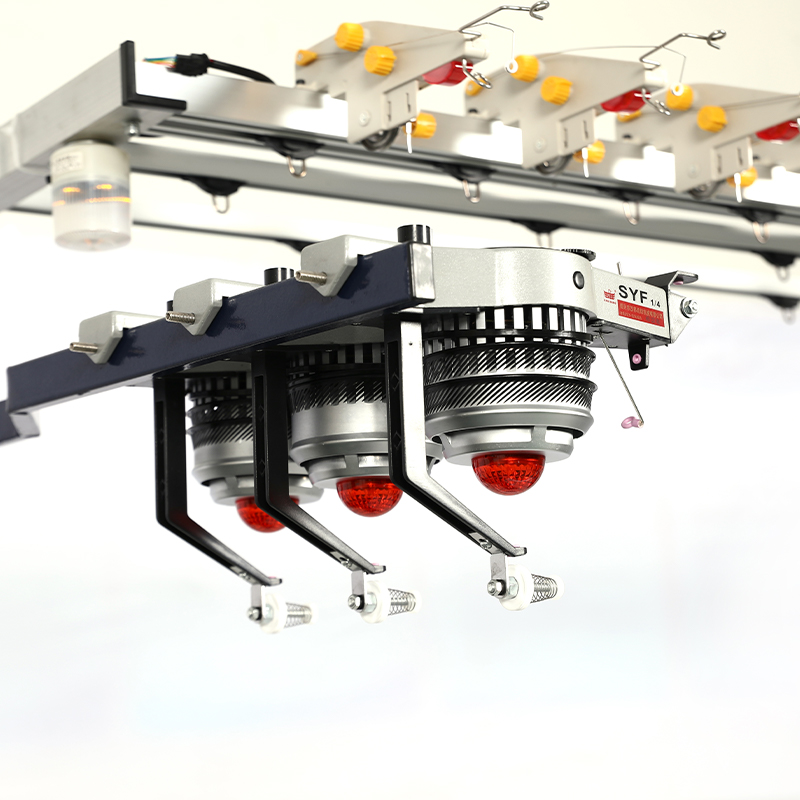

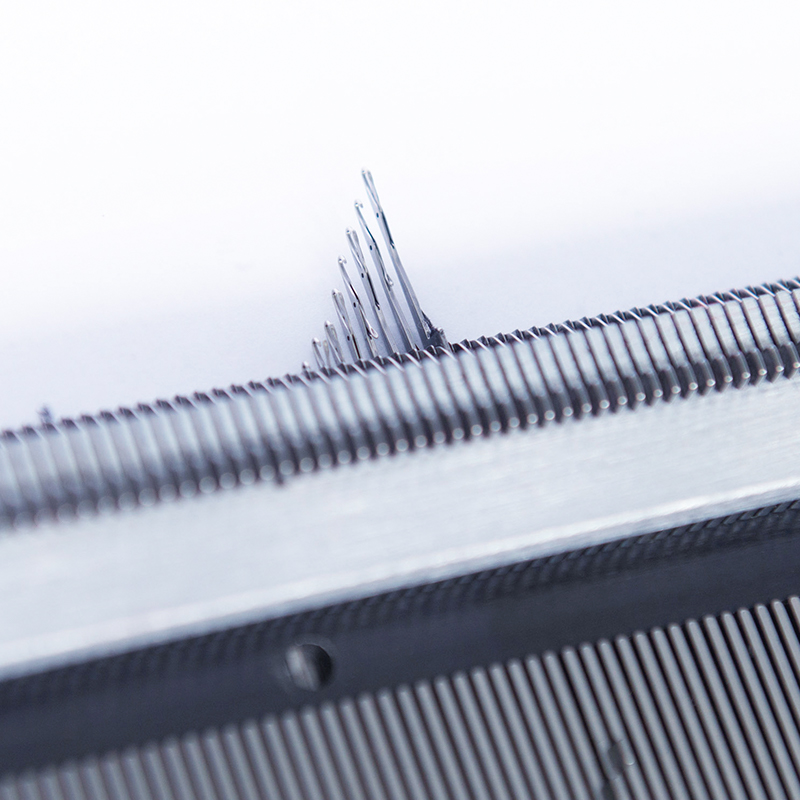

    The machine is equipped with 16 yarn carriers distributed across 4 guide rails on both sides, enabling yarn changes at any needle position — ideal for multi-color and jacquard blanket production. The electric magnet needle selection system, computer-controlled for precision, ensures highly efficient and reliable needle selection with minimized error rates.

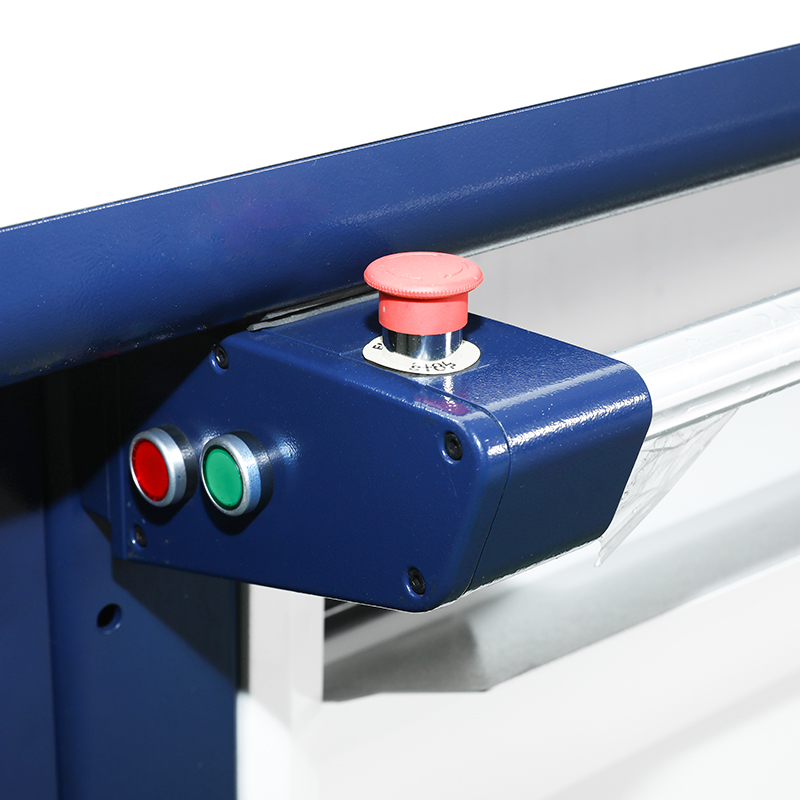

    ·Comprehensive Protection System
    The built-in protection system automatically triggers an alarm and halts the machine in the event of yarn breaking, float yarn, rewinding, end-of-knitting, racking failure, needle breakage, or programming errors, safeguarding both equipment and fabric from damage.
    ·Advanced Control System

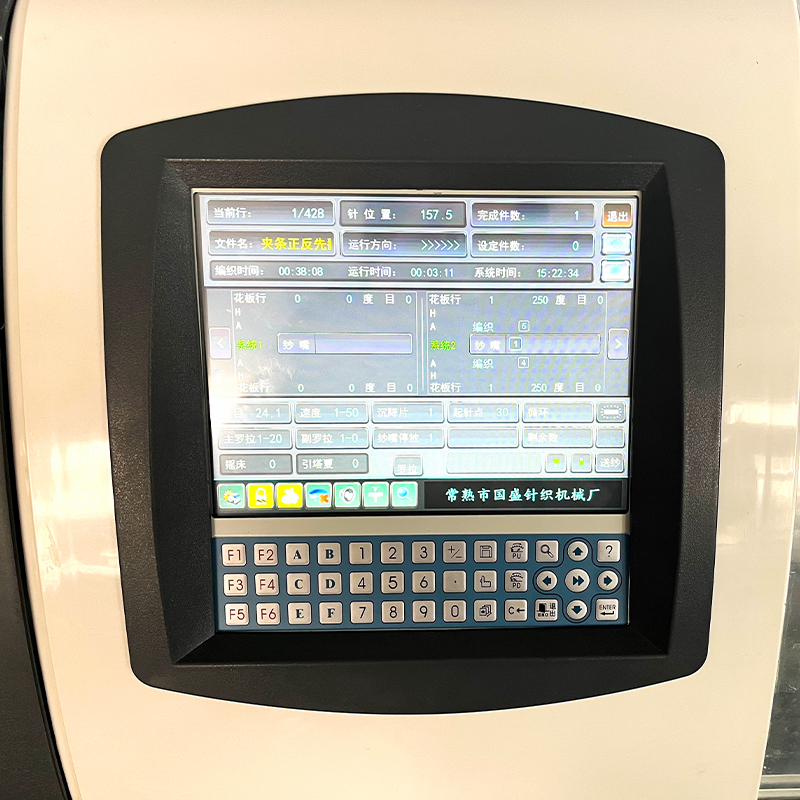

    The GS-B2100 features an intuitive LCD control panel with USB input and 256MB of onboard memory for storing extensive pattern files. All operating parameters can be monitored and adjusted in real time during operation. The design system is user-friendly and supports multiple languages including Chinese and English. Operating on single-phase 220V power, the machine also features a power-off memory function to prevent data loss during unexpected outages.
    With its wide knitting width, dual-system efficiency, rich pattern capabilities, and smart automation, the GS-B2100 is the ideal choice for blanket manufacturers seeking to enhance quality, efficiency, and global competitiveness.

  • Model GS-B2100
    Gauge 3G,3.5G,3-5-7G,5G,7G,8G,9G,10G,12G,13G,14G
    Knitting System 2+2 System Double Carriages
    Knitting Width 100 Inch
    Knitting Speed MAX.1.4m/s
    Knitting Function Tight Tuck, Transfer, Tuck, Miss, Jacquard
    Stitch Density Stitch system controlled by stepping motor, 128-section stitch selectable, adjustable scope supported by subdivision technology: 0-650.
    Racking Controlled by ac servo motor, racking within 2 inches and with fine adjusting function.
    Drive System Synchronous belt drive,  AC servo system
    Needle Selection Controlled by computer, electric magnet needle choose system with high efficiency.
    Yarn Carrier 16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
    Take Down Roller Programmed instruction controlled by stepping motor, 32 section levels selection adjustable area:0-100.
    Protection System The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, fail of racking, needle breakage and error programming occur ect.
    Control System 1. Adopt LCD screen, input device: USB, system memory 256mb, a great amount of design files can be stored.
    2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running.
    3. Design system is visual and easy to understand and upgrade.
    4. Multi-language version, there are Chinese, English, etc.
    Power 220V, single-phase, have memorizing function at the power-off moment
