GS-S2525C Dual-System Orange-Handle Sweater Knitting Machine (Full-Function S)
GS-S2525C Dual-System Orange-Handle Sweater Knitting Machine (Full-Function S)

GS-S2525C Dual-System Orange-Handle Sweater Knitting Machine (Full-Function S)

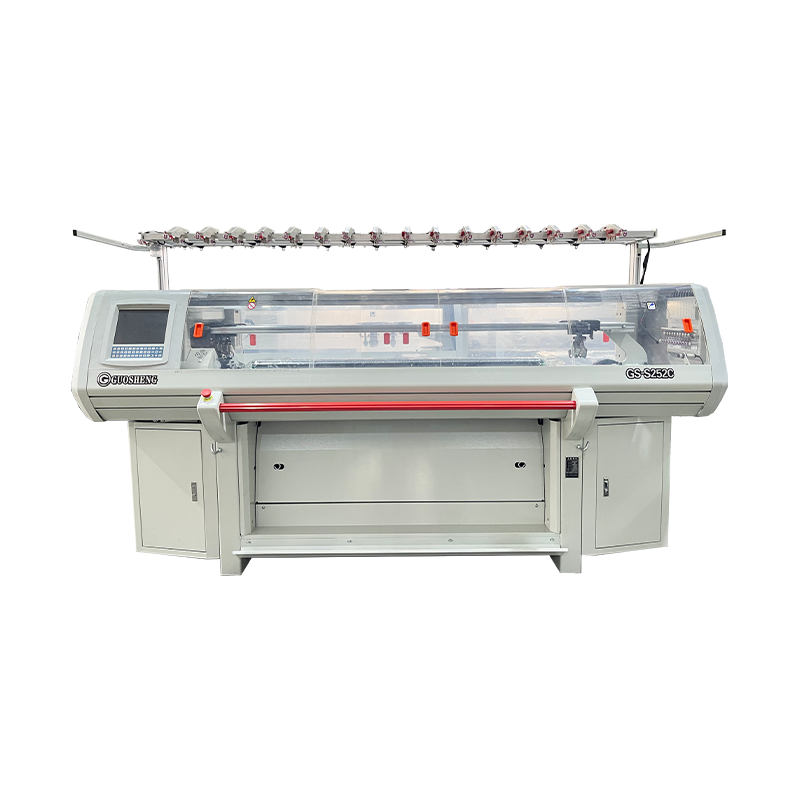

The GS-S2525C Dual-System "Orange Handle" Knitting Machine (Full-Function S) is a comprehensive, intelligent computerized flat knitting machine that combines high efficiency with high precision. Featuring a single-carriage, dual-system design—equipped with a compact, high-speed 5.2-inch carriage and the distinctive "orange handle" structure—the machine offers rapid carriage reversal, smooth operation, and precise positioning. These features effectively minimize idle travel time and boost productivity, meeting the demands of modern knitting enterprises for high-quality, efficient manufacturing. Capable of executing multiple knitting techniques simultaneously, this dual-system machine balances efficiency with product versatility, making it widely applicable to the production of various knitted garments.
Get A Quote
PREV：No previous articleNEXT：GS-S252 Orange-Handle Dual-System Computerized Flat Knitting Machine Sweater Knitting Machine (Full-Function S)
  • Product Introduction
  • Machine parameters
  • video
  • Contact Us

  • The GS-S2525C utilizes an advanced computer control system and intelligent servo drive technology. It supports variable stitch density (dynamic density control), automatically adjusting loop density based on the specific stitch structure; this results in a finer, more uniform fabric texture while enhancing the product's three-dimensional quality and depth. Compatible with a wide range of needle types and gauge configurations, the machine accommodates diverse product specifications and handles materials such as wool, cashmere, cotton, acrylic, polyester, silk, and various blended yarns.

    Equipped with a high-precision electronic needle selection system and an intelligent yarn-feeding control system, the machine enables rapid switching between complex patterns, thereby improving knitting precision and product consistency. Additionally, it supports intelligent program editing and pattern importing, significantly shortening the sampling cycle and accelerating new product development—providing a robust foundation for enterprises to respond quickly to market demands.

  • Model GS-S2525C
    Gauge 3G、3.5G、5G、7G、8G、9G、10G、12G、13G、14G
    Knitting System Double System, Single Carriage
    Knitting Width 52 Inch,Choose 36、44、52、60、66、72、80 Inch
    Knitting Speed Max 1.5 m/s
    Knitting Function Transfer, tuck, miss, jacquard, intarsia, needle transfer.
    Stitch Density Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
    Racking Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Drive System Synchronous belt drive, AC servo system.
    Needle Selection Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Scissor & Clamp The left and right scissors clips can be synchronized or separated by the program instructions, effectively reducing yarn waste.
    Yarn Carrier 16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
    Take Down Roller Programmed instruction controlled by stepping motor,128 section levels selection adjustable area:0-100.
    Protection System The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking,needle breakage and error programming occur etc.
    Control System 1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored.
    2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running.
    3. Design system is visual and easy to understand and upgrade.
    4. Multi-language version, there are Chinese, English etc.
    Power 220V, single-phase, have memorizing function at the power-off moment.
