GS-S252 Orange-Handle Dual-System Computerized Flat Knitting Machine Sweater Knitting Machine (Full-Function S) Factory

Swipe Down · Swipe Down · Swipe Down ·
GS-S252 Orange-Handle Dual-System Computerized Flat Knitting Machine Sweater Knitting Machine (Full-Function S)
GS-S252 Orange-Handle Dual-System Computerized Flat Knitting Machine Sweater Knitting Machine (Full-Function S)

GS-S252 Orange-Handle Dual-System Computerized Flat Knitting Machine Sweater Knitting Machine (Full-Function S)

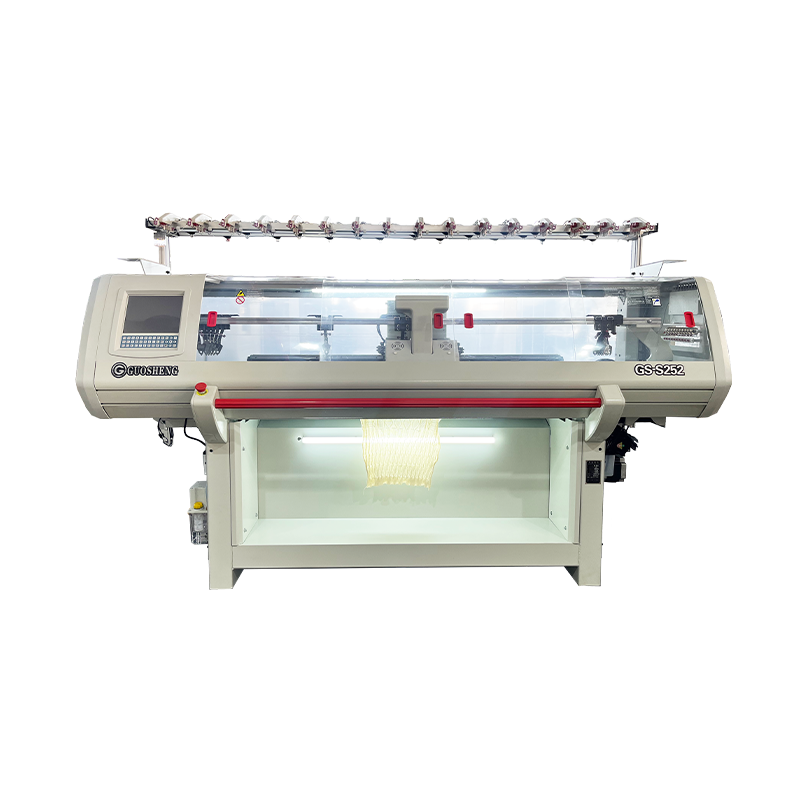

GS-S252 (Orange Handle, Dual-System, Fully Functional "S" Series) computerized flat knitting machine features a single-carriage, dual-system design equipped with a compact 5.2-inch carriage. The carriage operates with high speed and stability, effectively minimizing idle travel time and significantly boosting knitting efficiency to meet the demands of knitting enterprises for high-efficiency, high-quality production. Utilizing mature digital control technology, this model balances high-speed output with stable performance, making it an ideal choice for manufacturing sweaters, knitwear, scarves, hats, and various fashion knit products.
Get A Quote
PREV：GS-S2525C Dual-System Orange-Handle Sweater Knitting Machine (Full-Function S)NEXT：GS-S252Z 52-Inch Double System No-Waste-Yarn Bottom-Up Sweater Knitting Machine
  • Product Introduction
  • Machine parameters
  • video
  • Contact Us

  • The machine comes with a standard knitting width of 52 inches, with options ranging from 36 to 100 inches (including 36, 44, 52, 60, 66, 72, 80, and 100 inches) to suit specific product dimensions and production requirements. It is compatible with a wide range of materials, including wool, cashmere, cotton, acrylic, chemical fibers, and blended yarns.

    Equipped with a dual-system knitting structure, the GS-S252 supports variable stitch density (dynamic density) control. It automatically adjusts stitch density based on the specific stitch pattern, allowing for varying densities within a single fabric piece; this creates richer fabric textures and enhances both product quality and design versatility. Its extensive knitting capabilities easily facilitate:
    ·Side-by-side knitting
    ·Tuck stitch
    ·Transfer (stitch transfer)
    ·Eyelet/transfer holes
    ·Jacquard
    ·Intarsia
    ·Full-fashioned shaping (visible fashioning)
    ·Hidden shaping
    ·A wide variety of complex patterns and stitch structures

  • Model GS-S252
    Gauge 1.5G,3G,3.5G,3-5-7G,5G,7G,8 G,9G,10G,12G,13G,14G,15G,16G,18G
    Knitting System Double System, Single Carriage
    Knitting Width 52 Inch,Choose 36、44、52、60、66、72、80、100 Inch
    Knitting Speed Max 1.5 m/s
    Knitting Function Knitting and tuck in same line, transfer, tuck, miss, jacquard, intarsia, hide or apparent shaping.
    Stitch Density Stitch system controlled by stepping motor, 128(32) adjustable scope supported by subdivision technology: 0-650.
    Racking Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Drive System Synchronous belt drive, AC servo system.
    Needle Selection Controlled by computer, electric magnet/motor needle choose system with high efficiency.
    Yarn Carrier 16 yarn carriers on each side of 4 guide rails, shiftable on any needle position.
    Take Down Roller Programmed instruction controlled by stepping motor,128 section levels selection adjustable area:0-100.
    Protection System The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, ail of racking, needle breakage and error programming occur etc.
    Control System 1. Adopt LCD screen, input device: USB, system memory 256MB, a great amount of design files can be stored.
    2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running.
    3. Design system is visual and easy to understand and upgrade.
    4. Multi-language version, there are Chinese, English etc.
    Power 220V，single-phase, have memorizing function at the power-off moment.
  • GS-S252 Orange-Handle Dual-System Computerized Flat Knitting Machine Sweater Knitting Machine (Full-Function S)
