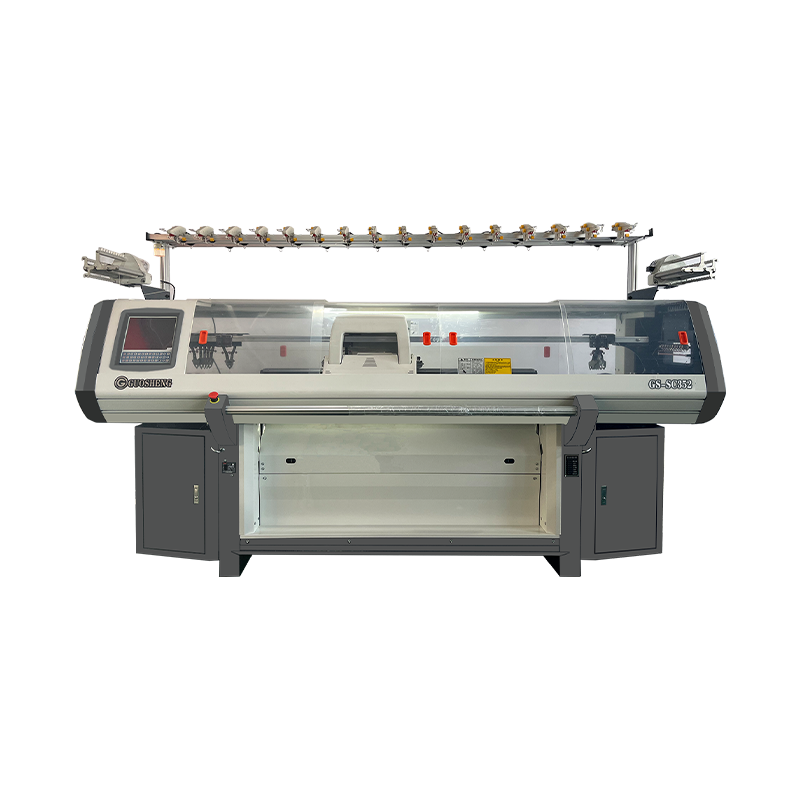

GS-S352C 52-Inch Three System Compound Needle Bottom-Up Sweater Knitting Machine

GS-S352C 52-Inch Three System Compound Needle Bottom-Up Sweater Knitting Machine

The GS-S352C 52-Inch Three System Compound Needle Bottom-Up Sweater Knitting Machine is the automation flagship of GUOSHENG MACHINERY's Three System Full Function S series. Combining the high-throughput three-system knitting platform with a precision compound needle comb device and a six-motor independently controlled scissor-and-clamp system, the GS-S352C achieves end-to-end automation from cast-on through fabric drop-off — dramatically reducing labor requirements, cycle time, and material waste. It represents the ideal solution for modern knitwear factories advancing toward intelligent, lean manufacturing.

Get A Quote

PREV：GS-S352Z 52-Inch Three System No-Waste-Yarn Bottom-Up Sweater Knitting Machine NEXT：GS-S352 52-Inch Three System Sweater Knitting Machine

Product Introduction
Machine parameters
video
Contact Us

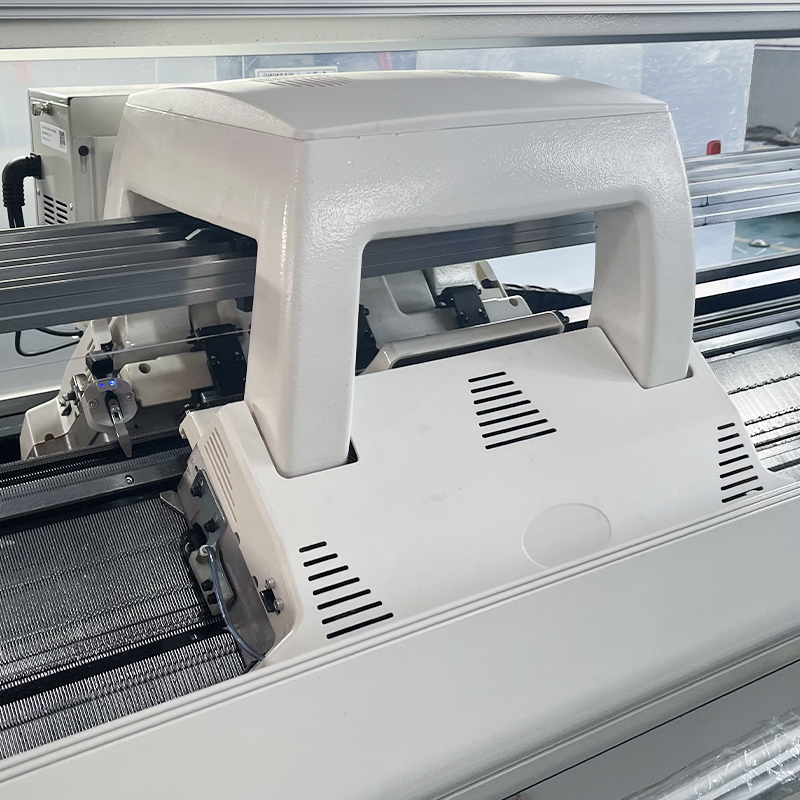

·Three-System Single Carriage — The Foundation of Superior Output
Built on a three-system single carriage platform, the GS-S352C completes more knitting actions per carriage pass than any double system machine. Paired with a synchronous belt drive and AC servo motor control system for smooth, responsive motion, the machine delivers a maximum speed of 1.4 m/s with substantially higher effective output per unit of time. This architecture is purpose-built for high-volume, high-frequency production environments where throughput directly impacts profitability.
·Extensive Gauge Coverage
The GS-S352C supports 12 gauge options — 3-5-7G, 5G, 6G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, 15G, and 16G — among the broadest gauge ranges in its class. This spans the full spectrum from chunky heavyweight knitwear through to fine-gauge, high-count fashion knits. The standard knitting width is 52 inches, covering the majority of mainstream knitwear product dimensions.

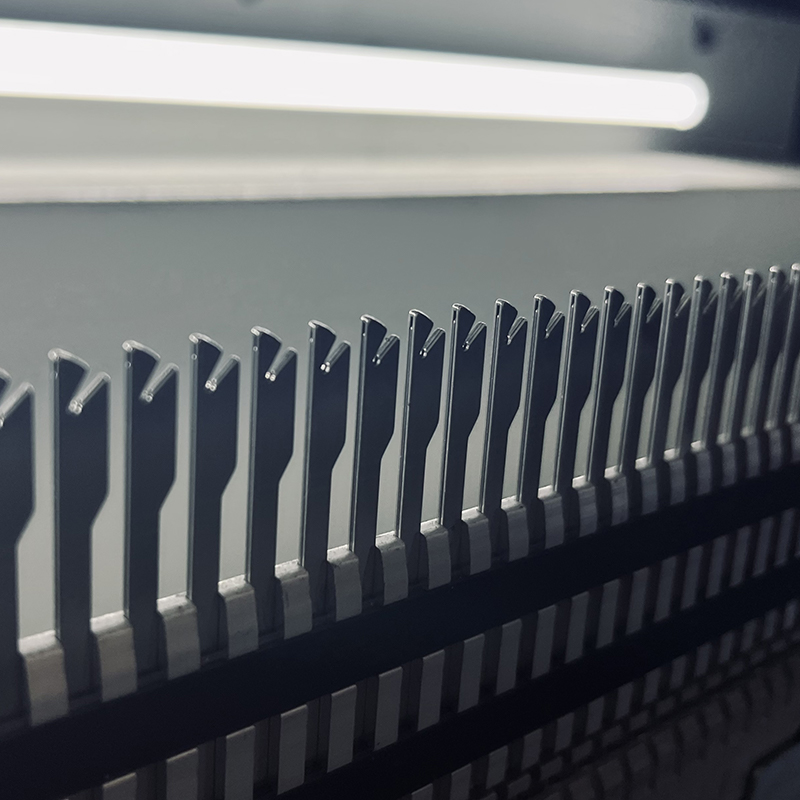

·Core Innovation: Compound Needle Comb Device
The standout feature of the GS-S352C is its compound needle comb device, engineered for high-precision control and stable operation. The cast-on process uses 1 row of elastic yarn followed by 4 rows of waste yarn sealing, ensuring a clean, consistent starting edge on every piece. Critically, when combined with the scissor-and-clamp system, the machine enables automatic single-piece fabric drop-off — eliminating the need for manual fabric pulling between pieces. This removes a labor-intensive step that conventional machines require for every production batch, delivering significant savings in time, manpower, and operational cost. It is especially well-suited to minimally staffed, highly automated production lines.
·Six-Motor Independent Scissor-and-Clamp System
The GS-S352C is equipped with 2 scissors and 4 clamps, each individually driven by its own dedicated motor — 6 motors in total — positioned on both sides of the needle bed. Each component can be programmed to operate synchronously or independently, precisely coordinating with different pattern types and production sequences. This configuration minimizes yarn waste at every step while maximizing work efficiency, representing the highest level of scissor-and-clamp automation across the entire product series.
·Comprehensive Knitting Functions
Supporting transfer, tuck, miss, jacquard, intarsia, hide shaping, and apparent shaping, the GS-S352C covers the complete range of professional flat knitting techniques. From basic fabric structures to complex three-dimensional patterns, multi-color jacquards, intarsia colorwork, and fully fashioned shaped garments, the machine handles every product category with consistent quality and efficiency.

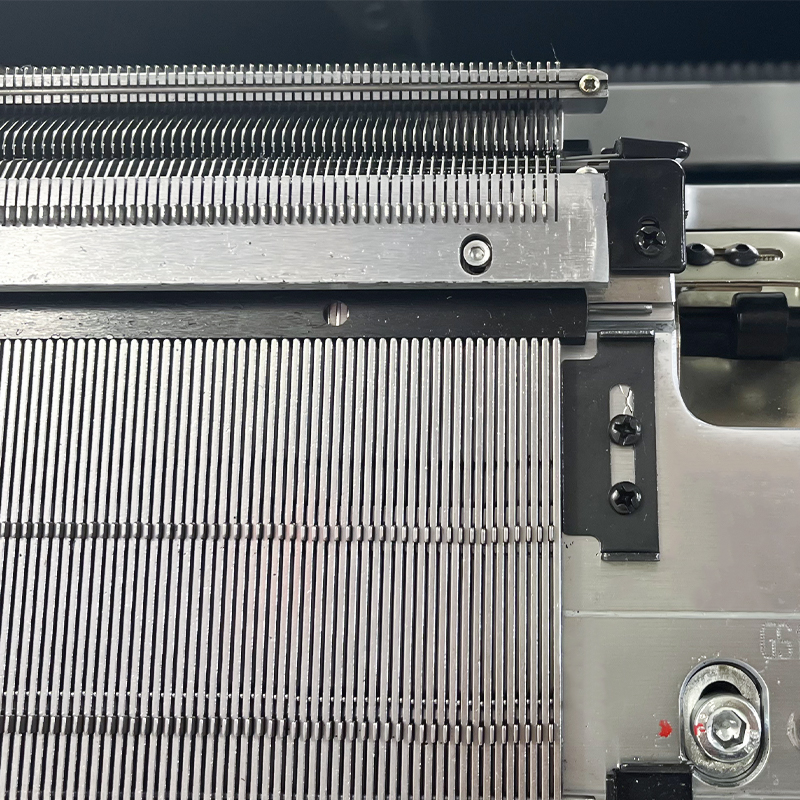

·Precision Stitch Density & Take-Down Control
Stitch density is governed by a stepping motor with 128 selectable levels and an adjustable range of 0–650 using subdivision technology, ensuring exceptional fabric consistency across high-volume production runs. The take-down roller system, also stepping motor–controlled, offers 128 levels of tension adjustment across a range of 0–100, precisely accommodating yarns of varying weight and elasticity to maintain uniform fabric tension and prevent distortion.

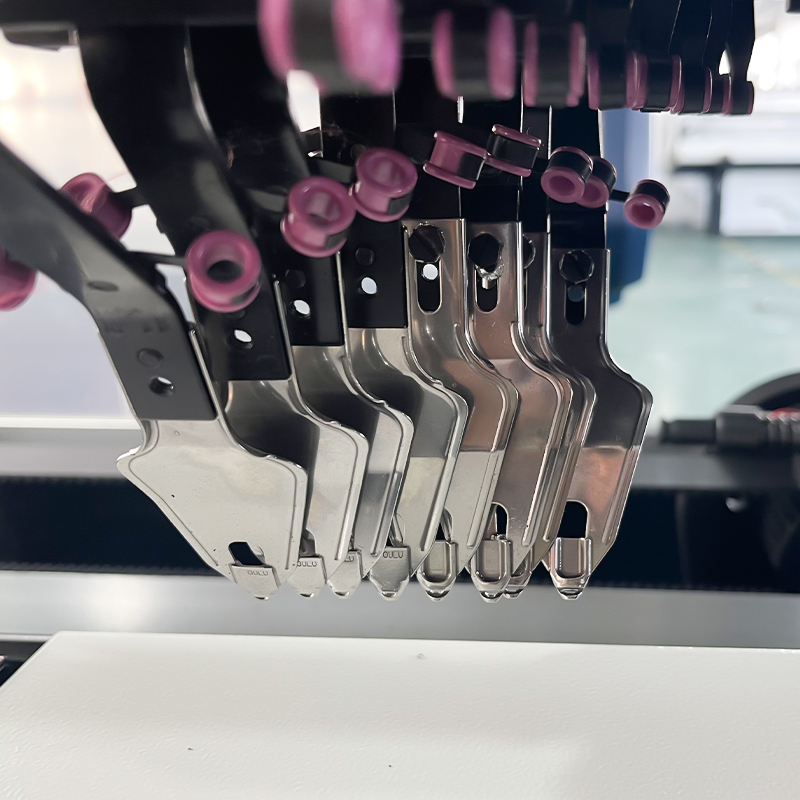

·Yarn Carrier System & Sinker Assist
The 2×8 yarn carrier configuration — mounted on both sides of 4 guide rails — allows yarn changes at any needle position, providing maximum flexibility for multi-color jacquard and intarsia production. The sinker system provides auxiliary knitting support, with stepping motor control enabling adjustment to suit different fabric characteristics, further improving fabric formation quality and surface evenness.
·Intelligent Control & Comprehensive Protection
The control system features an LCD display with USB input and 256MB of onboard memory for storing extensive design file libraries. The multi-language interface supports Chinese, English, and other languages, with all operating parameters viewable and adjustable in real time during machine operation. The protection system automatically triggers alarms upon detecting yarn breakage, knotting, float yarn, rewinding faults, end-of-knitting signals, racking failure, needle breakage, safety sensor events, or programming errors — providing comprehensive protection for both machine and operator. The machine operates on a standard 220V single-phase power supply with a power-off memory function to protect production data and workflow state against unexpected power interruptions.

Model	GS-S352C
Gauge	3-5-7G, 5G, 6G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, 15G，16G
Knitting System	Three system single carriage
Knitting Width	52 inch
Knitting Speed	MAX.1.4m/s
Knitting Function	Transfer, tuck, miss, jacquard, intarsia, hide or apparent shaping.
Stitch Density	Stitch system controlled by stepping motor, 128-section stitch selectable, adjustable scope supported by subdivision technology:0-650
Racking	Controlled by an AC servo motor, racking within 2 inches and with fine adjustiing function.
Drive System	Synchronous belt drive, AC servo system
Needle Selection	Controlled by computer, electric magnet needle choose system with high efficiency.
Comb Device	Composite comb device, high-precision control and stable operation guarantee, start knitting with I row rubber and 4 row waste yarn. Combined with scissors and clips for single piece fabric dropping without the need for fabric pulling, saving time, labor and cost
Scissor And Clamp	Including 2 scissors and 4 clamps, which individually controlled by 6 motors separately, located the both of needle bed separately, further to increase the work efficiency and to reduce yarn consumption.
Yarn Carrier	2x8yarn carriers on each side of 4 guide rails, shiftable on any needle position
Take Down Roller	Programmed instruction controlled by stepping motor, 128 section levels selection adjustable area:0-100
Sinker System	Assist knitting, have various results of shaping and stop.
Protection System	The machine will automatically alarm if yarn breaking, float yarn, rewind, end of knitting, fail of racking, needle breakage, safety sensor and error programming occur ect.
Control System	1. Adopt LCD screen, input device: USB, system memory 256mb, a great amount of design files can be stored. 2. Monitoring menu, each kind of operating parameter, can be shown, and they can be adjusted at any time when the machine is running. 3. Design system is visual and easy to understand and upgrade. 4. Multi-language version, there are Chinese, English, etc.
Power	220V, single-phase, have memorizing function at the power-off moment
